| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Lunfeng |
| Certification: | ISO9001:2015 |
| Model Number: | MDMS-763 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | First put into a polybag, then paked into a carton. According to clients' special requirements. |
| Delivery Time: | 7-25 working days, To be negotiated |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000 Piece/Pieces per Month |
| Product Name: | Flat Membrane Switch Memrbrane Keypad With 3M Adhesive Custom Membrane Keypad | Usage: | Remote Controller, Home Appliance |
|---|---|---|---|
| Color: | Pantone Or RAL Color, Blue, White, Yellow | Material: | PET |
| Rear Adhesive: | 3M468 | Size: | Rectangle Shape, Customized Size |
| Connector Type: | With Black Connector | Key Option: | Non-tactile |
| High Light: | RAL color membrane switch keypad,rectangle membrane switch keypad,3M adhesive membrane switch overlay |
||

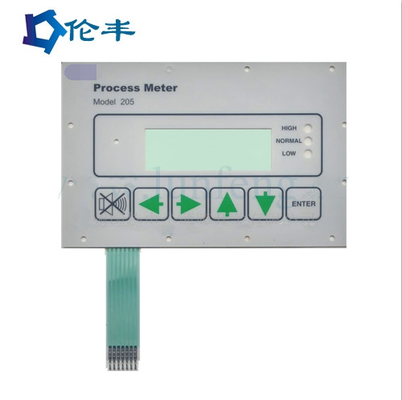

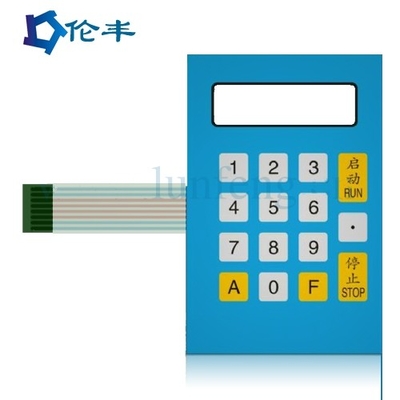

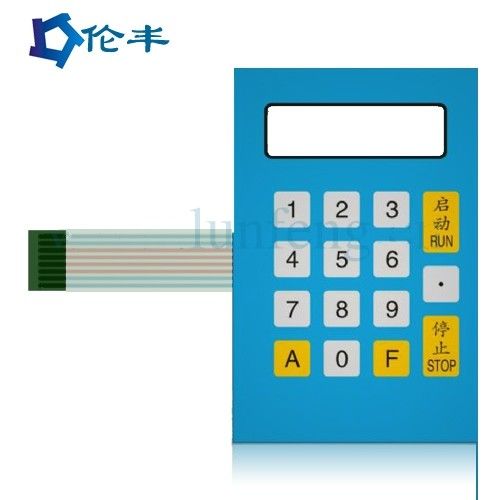

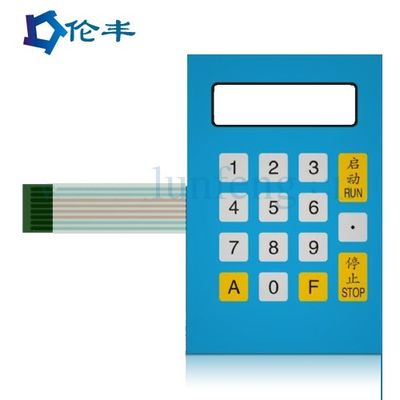

Flat Membrane Switch memrbrane keypad with 3M adhesive custom membrane keypad
Membrane switches are qualified through tests based on the ASTM (American Society of Testing and Material) standards, conducted in Molex's in-house testing facilities.
Light-weight and low profile
Permits integration into smaller and thinner packages
Extremely resistant to shock and vibration
Exceptional performance in commercial applications
Superior tactile response that is consistent from switch to switch
Extremely reliable contact system that withstands even the most rugged commercial environment
Snap-dome contacts
Superior tactile feeling
Easy to shield
Offers protection against static discharge and EMI/RFI
Sealed and internally vented
Resistant to dust and moisture
Stainless steel domes, designed by a worldwide company that is experienced in high-speed stamping
Dome designs are produced with auto-placement, ensuring product reliability
Allows addition of simple electronic components onto the flexible switch substrate
Eliminates the need for an additional LED or display board mounted below the switch substrate
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
