| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Lunfeng |
| Certification: | ISO9001:2015 |
| Model Number: | MDMS-751 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | First put into a polybag, then paked into a carton. According to clients' special requirements. |
| Delivery Time: | 7-25 working days, To be negotiated |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000 Piece/Pieces per Month |
| Product Name: | LED Membrane Switch With Glossy Surface And Tactile Metal Dome | Application: | Industries Manufacturing |
|---|---|---|---|
| Color: | Pantone Or RAL Color, White, Red | Materials: | PET, Metal Dome, Hole |
| Rear Adhesive: | 3M467 | Size: | Rectangle Shape, Customized Size |
| Leds: | Yellow LED, Green LED | ||
| High Light: | Pantone Color LED Membrane Keypad,hole LED Membrane Keypad,glossy surface tactile metal dome |
||

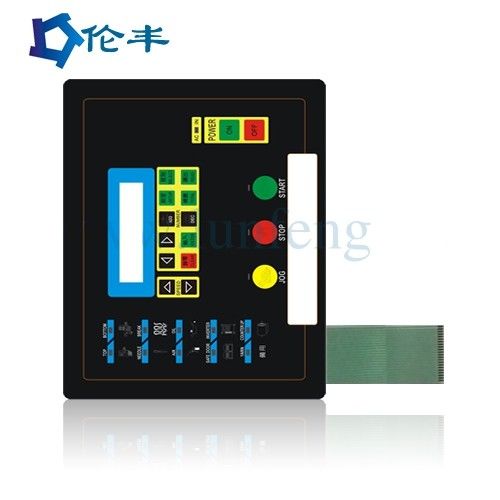

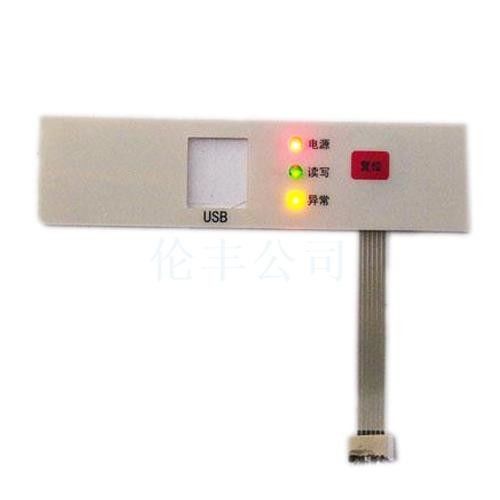

LED Membrane Switch with glossy surface and tactile metal dome
LED technology, combined with an ingenious construction, allows the realization of even illuminated membrane switches. A long life, high brightness, and the ability of the single-key triggering open the membrane switch up to completely new applications and design options.
LED equipped membrane switches by Foundation are less than 3mm thick and provide a uniform, bright, long-lasting illumination.
Optionally we can achieve a full light separation between the keys and allow to separately illuminate each individual key. The use of bi-color or RGB LEDs also provides a virtually unlimited choice of colors. In combination with the GT technology the lighting effect can be enhanced even further.
The new LED method uses a combination of side-LED and light diffusing panels. This ingenious design only requires slightly more space than the EL film solution.
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
