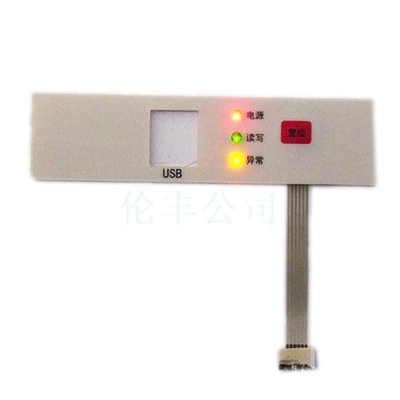

3M468 Adhesive Membrane Keypad With Led

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: MDMS-944
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Product: LED Membrane Switch With 3M467 3M468 Adhesive Application: Industries Manufacturing
Color: Pantone Or RAL Color, White, Red Materials: PET, Metal Dome, Hole
Rear Adhesive: 3M467 Size: Rectangle Shape, Customized Size
Leds: Yellow LED, Green LED Printing: Silkscreen Printing And 3D Digital Printing
High Light:

rectangle membrane keypad with led


3M468 Adhesive membrane keypad with led


3M467 keypad membrane switch

LED Membrane Switch With 3M467 3M468 Adhesive



he main properties of custom design electronic membrane switch


1. PC / PET as overlay (control panel)

2. Flat keys or tactile type

3. Embossed button with good tactile feel

4. Pre-assemble with or without metal domes


5. Water-resistant, dust-proof, gas-proof and scratch-resistant

6. Long life cycle.


Keypad Button Material: PET/PC

Storage Temperature: -40°C (-40°F) to +70°C (158°F)

Certificate: ISO9001:2000

Electronic Characteristic:: <35V ( DC ) <100mA 1W

Life Expectancy:: flat type ≥ 500 million,

tactile type: ≥ 100 million times

Circuit:: printing silver ink on PET material


Connector:: 2.54mm female connector or 1mm ZIF connector


Thin Film Switch Advantages:

Appearance Beautiful, bright in color

Design Small size / light weight / thin thickness / OEM

Feature Abrasion resistant / Tightness is good / moisture-proof / dust-proof anti-oil / anti-corrosion /

erosion of harmful gases proof / acid and alkali proof / quake proof.

Quality In-house 100% functionally tested / long life span

Operation Easy to operate / intuitive / safe / reliable / Installation and connection convenience.




1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:


Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:




2.Mechanical Properties


Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm



3.Environmental and Storage Conditions


Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C


40°C, 90%~95%, 240 hours





Q1: Are you a factory or trade company?
A :  Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay   for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
      2. If you have your own forwarder, we can cooperate with them.

Q6 :  How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch,  10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

3M468 Adhesive Membrane Keypad With Led 0

3M468 Adhesive Membrane Keypad With Led 1




3M468 Adhesive Membrane Keypad With Led 2




3M468 Adhesive Membrane Keypad With Led 33M468 Adhesive Membrane Keypad With Led 43M468 Adhesive Membrane Keypad With Led 53M468 Adhesive Membrane Keypad With Led 63M468 Adhesive Membrane Keypad With Led 7
