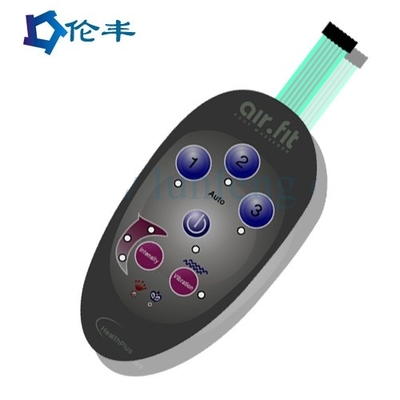

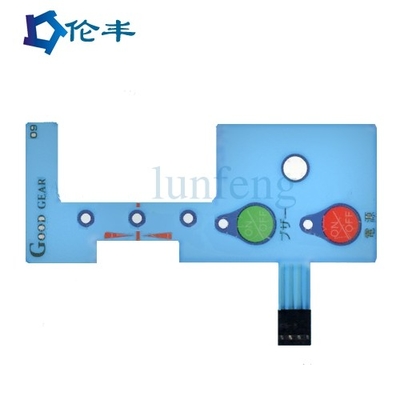

PET LED Membrane Keypad 3M468 Blue Home Graphic Overlay Membrane

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: MDMS-932
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Product Name: LED Membrane Switch With Red, Blue, Yellow LEDs Application: Home Appliance
Color: Pantone Or RAL Color, Blue, Red, Green, Black Materials: PET, LEDs Metal Dome, Hole
Rear Adhesive: 3M468 Size: Rectangle Shape, Customized Size
Leds: Yellow LED, Green LED Printing: Silkscreen Printing
High Light:

PET LED Membrane Keypad

,

3M468 blue LED Membrane Keypad

,

home graphic overlay membrane

LED Membrane Switch with red, blue, yellow LEDs





LEDs welded on the flexible circuit layer make into the PCB membrane switch. When several Everlight LEDs are assembled in the keypad, the LEDs should using 0805 and the wiring of LED should be separated from lower circuit. Besides, the LED windows should be embossed. All of these details are making the construction stable.



Using F200 matte PET makes the overlay looks graceful. The LED keypad are widely used as industrial control keypad, because of good tactile buttons, powerful functions. The keypad can be customized based on customer’s design such as button icons, colors etc. The main characters are printed wiring, low resistance and function well. Item HW-180815021 with strong function is able to weld with colorful LEDs, adopting waterproof circle structure and 3M9495LE. So keypads are suitable for high air humidity environment.



Membrane switch flexible polycarbonate or polyester film printed with conductive paste made of the switch contact circuit is a contact switch.







1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180





2.Mechanical Properties



Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm





3.Environmental and Storage Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours
