FPC Membrane Switch
Created with Pixso.

Gray LEDs FPC Membrane Switch Embossed Button Tactile Switch Keypad

Gray LEDs FPC Membrane Switch Embossed Button Tactile Switch Keypad

Brand Name: Lunfeng
Model Number: FPCMS-002
MOQ: 1 piece
Price: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO9001:2015
Product Name:
Tactile Keypad Flexible FPC Membrane Switch Embossed Button And LEDs
Used On:
Industrial Control
Color:
Pantone Or RAL Color,gray, Black
Key Material:
PET EBG180 Glossy
Rear Adhesive:
3M468
Feature:
Metal Domes, Leds
Circuit:
Flexible FPC
Led Color:
White/ Green/ Red/ Customized
Packaging Details:
First put into a polybag, then paked into a carton. According to clients' special requirements.
Supply Ability:
500000 Piece/Pieces per Month
Highlight:

gray FPC Membrane Switch

,

LEDs FPC Membrane Switch

,

embossed button tactile switch keypad

Product Description

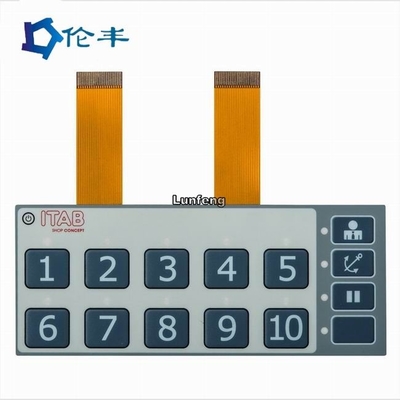

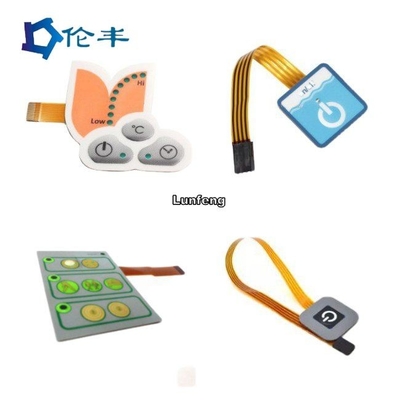

tactile keypad flexible FPC Membrane Switch embossed button and LEDs


Usually if the membrane switches need assembled many LEDs, then we suggest to use FPC circuit, it can get more stable LED soldering quality. For the normal application the PET circuit is enough, which is more economical. In addition if the conductor pitch is 0.5mm, although we also can print it, but we still suggest to use FPC circuit. Because of that 0.5mm pitch is too small and it is easy to occur the short circuit problem.

For the Rigid circuit membrane switches, the circuit is rigid printed circuit board. The material of rigid PCB is usually FR4 and Copper. By this type of membrane switch, the connector usually is the SMD connector(sometimes also can be straight through connector). For some application which need very stiff capability, then use PCB circuit membrane switch.



ItemsSilver Printed CircuitCopper Etched FPC Circuit
MaterialPET (Polyester)Copper
ConductorPrinted silverCopper
Contact FingersSilver and CarbonGold plated
Contact Buttons PadsSilverGold plated
Life & Reliabilitynormalgood
Stabilitynormalgood
ResistancelowVery low
Costlowhigh
Lead Time2-3 days7-10 days
Pitch0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm0.5mm, 1.0mm, 1.27mm, 2.54mm



Our Advantage:

We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available

Applications:

* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
Various automtic machine control keypad





1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180





2.Mechanical Properties



Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm





3.Environmental and Storage Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours





FAQ:


Q1: Are you a factory or trade company?
A :  Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay   for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
      2. If you have your own forwarder, we can cooperate with them.
Q6 :  How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch,  10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
