|Product Name:||High Quality LED FPC Membrane Switch Good Sealing||ColorS:||Pantone/ RAL Color, Black, White|
|Material:||PET, Polyester(PET), 0.15mm Matte PET||Rear Adhesive:||3M468|
|Feature:||Metal Domes, Matte Surface, FPC Circuit||Connector:||1.0mm Pitch, Black Connector|
|Key:||Embossed Keys, Embossing Buttons||Type:||With Leds, NO LCD Window, NO Punch Holes|
Black Connector LED Membrane Switch,
1.0mm Pitch LED Membrane Switch,
3M468 FPC Membrane Switch

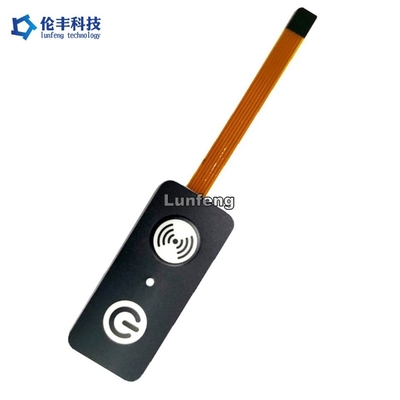

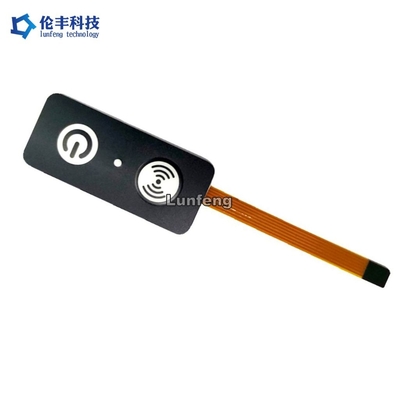

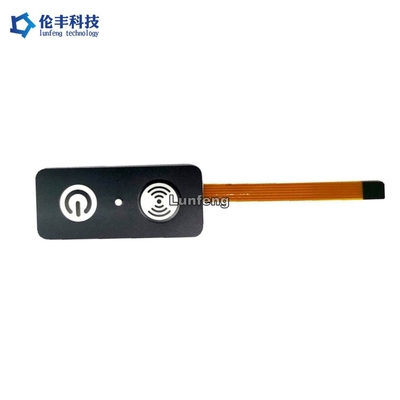

High Quality LED FPC Membrane Switch Good Sealing
FPC Membrane Switch(
Copper Flex Membrane Keypad )
Compared with traditional membrane switches by using the silver paste printed flex as the circuit layer, the FPC membrane switch is made from Polyimide copper etched FPC circuits. Copper flex traces are more durable and stable, which are resistant to high temperatures up to 280°C, the circuit has high precision, output spacing of 0.5mm, low electrical resistance value, high conductivity, stable and reliable performance, and its service life longer than an ordinary membrane switch, ability to solder active and passive components into the switch design.
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm
0.5mm, 1.0mm,1.27mm, 2.54mm
|1. Electrical Properties||Membrane Switch|
|Electrical Level:||35V(DC), 100mA,1W|
|Contact Resistance:||10Ω~500 Ω|
|Dielectrics Voltage-resistance:||250VRms(50~60Hz 1min)|
|Chattering Time:||≤ 5ms|
|Life Time:||Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000|
|2. Mechanical Properties|
|Operating Force:||Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)|
|Switch Stroke:||Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm|
|3. Environmental and Storage Conditions|
|Operation Temperature:||-40°C ~ +80°C|
|Storage Temperature:||-40°C ~ +80°C|
|Humidity:||40°C, 90%~95%, 240 hours|
