Digita Printing FPC Membrane Switch Silkscreen Printing EBG180 Digital Keypad Switch

Digita Printing FPC Membrane Switch Silkscreen Printing EBG180 Digital Keypad Switch

Brand Name: Lunfeng
Model Number: FPCMS-060
MOQ: 1 piece
Price: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO9001:2015
Product Name:
FPC Membrane Switch Digita Printing Or Silkscreen Printing
Used On:
Various Automtic Machine Control Keypad
Color:
Pantone Or RAL Color, Blue, Orange, Black, Gray
Key Material:
PET EBG180
Rear Adhesive:
3M468
Feature:
Metal Domes, LEDs, LCD Window
Connector:
0.5 Mm Female Connector
Circuit:
Flexible FPC
Style:
Recycled Materials
Led Color:
White/ Green/ Red/ Customized
Packaging Details:
First put into a polybag, then paked into a carton. According to clients' special requirements.
Supply Ability:
500000 Piece/Pieces per Month
Highlight:

Digita Printing FPC Membrane Switch

,

Silkscreen Printing FPC Membrane Switch

,

EBG180 digital keypad switch

Product Description

FPC Membrane Switch digita printing or silkscreen printing





A membrane switch is a printed electronic circuit that uses pressure to open and close a circuit.

The membrane switch circuitry is most often screen printed using conductive inks, which are typically made of silver, carbon, and/or graphite. Membrane switches are part of a range of devices considered to be user interfaces (also called operator interfaces, or man-machine interfaces) along with display-based touch screens, and mechanical switches such as push- button, toggle, rocker, and slide switches. The ultimate purpose of a membrane switch is to serve as the interface between man and machine, enabling an operator to communicate with a piece of equipment, instrument, or machinery.





Our Advantage:



We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available



Applications:



* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
Various automtic machine control keypad





1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180





2.Mechanical Properties



Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm





3.Environmental and Storage Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours






FAQ:



Q1: Are you a factory or trade company?
A :  Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay   for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
      2. If you have your own forwarder, we can cooperate with them.

Q6 :  How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch,  10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

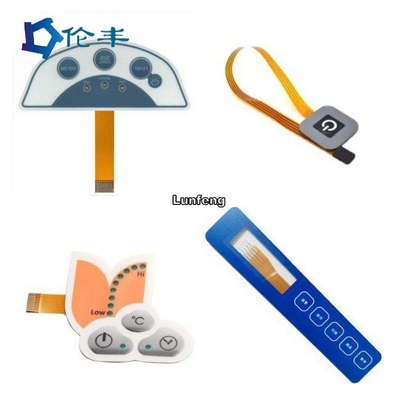

Digita Printing FPC Membrane Switch Silkscreen Printing EBG180 Digital Keypad Switch 0

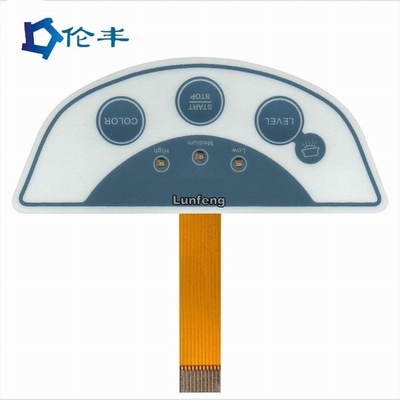

Digita Printing FPC Membrane Switch Silkscreen Printing EBG180 Digital Keypad Switch 1
