|Product Name:||Customized FPC Membrane Switch With 1.0mm Zif End||ColorS:||Pantone/ RAL Color, Black, Red, Green, White|
|Material:||PET, Polyester (PET), 0.150mm PET F150||Rear Adhesive:||3M467|
|Feature:||Metal Domes, Matte Surface||Connector:||FPC Circuit End|
|Key:||Embossed Keys, Embossing Buttons||Type:||With LCD Window, No Punch Holes, No LED|
RAL Color FPC Membrane Switch,
0.15mm PET Membrane Switch,
F150 PET Membrane Switch

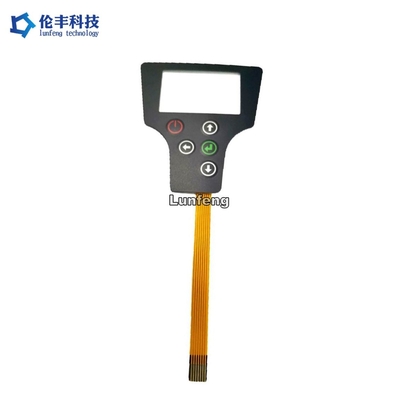

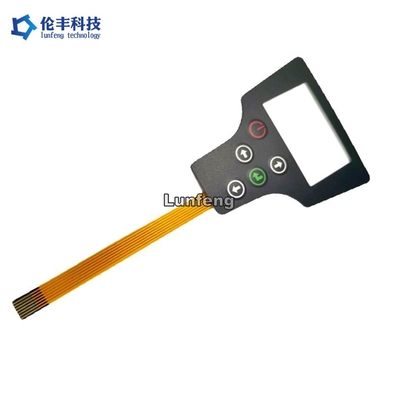

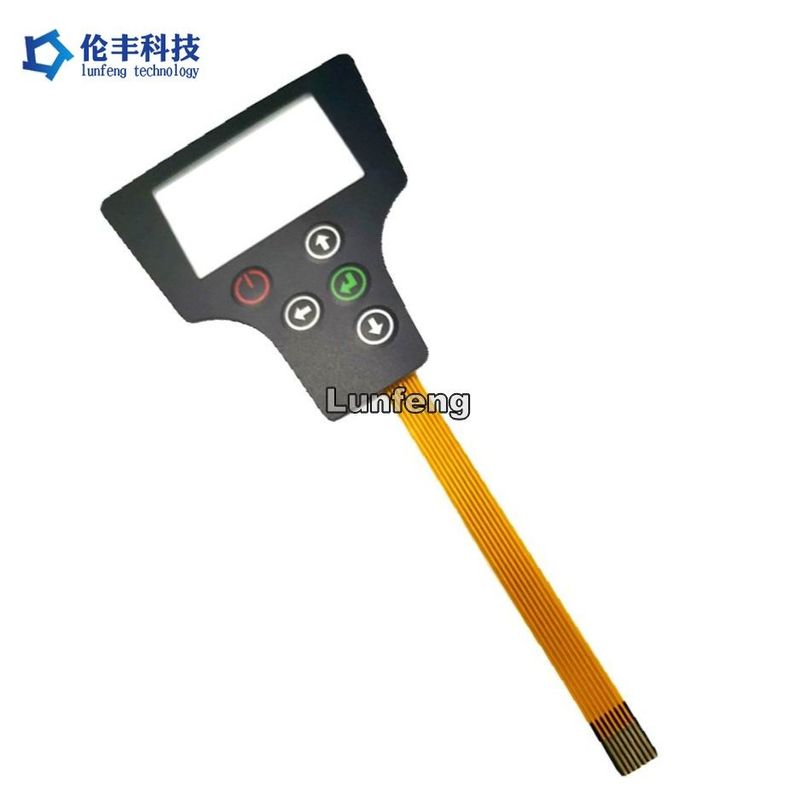

Customized FPC Membrane Switch With 1.0mm Zif End
Flexible printed circuits (FPC) are made with photolithographic technology. Flex circuits are often used as connectors or interconnect in various applications where flexibility, space savings, or production constraints limit the serviceability of rigid circuit boards or hand wiring. Flexible circuits are found in industrial and medical devices where many interconnections are required in a compact package or in instrument panels for automotive applications.
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm
0.5mm, 1.0mm,1.27mm, 2.54mm
|1. Electrical Properties||Membrane Switch|
|Electrical Level:||35V(DC), 100mA,1W|
|Contact Resistance:||10Ω~500 Ω|
|Dielectrics Voltage-resistance:||250VRms(50~60Hz 1min)|
|Chattering Time:||≤ 5ms|
|Life Time:||Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000|
|2. Mechanical Properties|
|Operating Force:||Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)|
|Switch Stroke:||Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm|
|3. Environmental and Storage Conditions|
|Operation Temperature:||-40°C ~ +80°C|
|Storage Temperature:||-40°C ~ +80°C|
|Humidity:||40°C, 90%~95%, 240 hours|
