| Product Name: | Graphic Panel Overlay Flat PET Lexan Label Overlay | Application: | Control System |
|---|---|---|---|
| Colors: | Pantone/ RAL Color, Yellow, Gray, White | Material Surface: | Glossy Or Matte Surface |
| Rear Adhesive: | 3M467 | Feature: | Flat Matte Surface |
| Material: | PET | Printing: | Silk Screen Printing |
| Name: | Control System Membrane Overlay | Shape: | Customized Die Cut |
| High Light: | flat graphic overlay membrane,PET lexan graphic overlay membrane,flat matte control panel overlay printing |
||

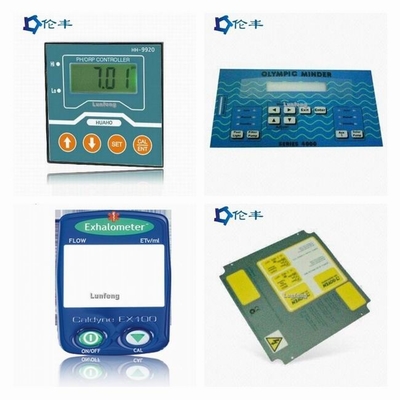

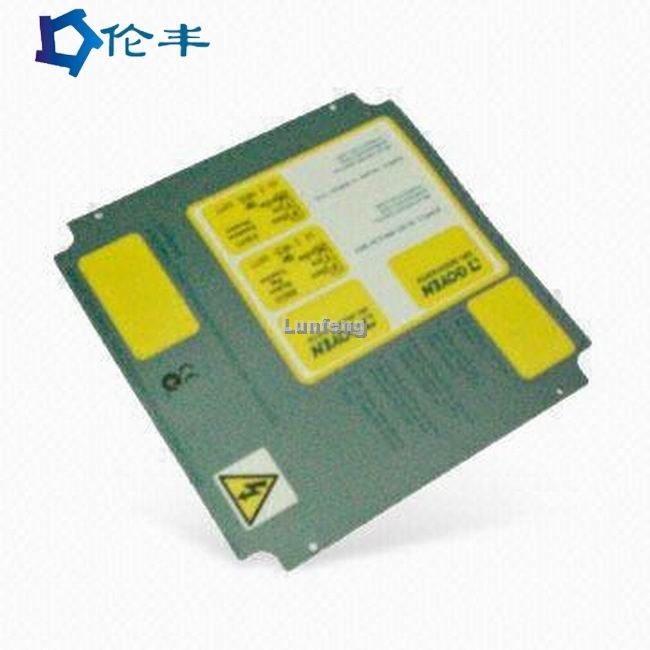

Graphic Panel Overlay flat PET lexan label overlay
The Purpose of a Graphic Overlay ( Panel Overlay)
A graphic overlay, also known as a panel overlay is a critical printed interface on mechanical and electronic assemblies that allows the user to effectively interact with the device, machine, or equipment. This top layer visually represents the device's user interface panel, and it is the first thing the operator sees. There are various forms, such as a single layer that is backed by adhesive or part of a membrane switch.
These overlay labels typically include the company name and branding, in addition to product information like IDs and serial numbers, plus instructions for using the device. An overlay may also include important safety warnings. This functional user-friendly interface is very important, as it helps define the user experience.
GRAPHIC OVERLAY CUSTOMIZATIONS
Graphic overlays and labels can be digitally printed as well as screen printed. Most of our high resolution graphics are printed on the second surface, which is the back side of polyesters, polycarbonates, as well as acrylic. This subsurface printing protects the ink behind the plastic it is printed on. It is most effective against abrasion, aggressive chemicals, and of course, every day handling. The overlay can be further protected by placing it inside a recessed pocket milled from the metal sub-panel. This shields the edge of the overlay by making it flush with the surface of the sub-panel.
Our Advantage:
We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available
Applications:
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch | 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm | 0.5mm, 1.0mm, 1.27mm, 2.54mm |
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
