| Product Name: | Graphic Panel Overlay Tactile Glossy PET Overlay | Application: | Electronic Industry |
|---|---|---|---|
| Colors: | Pantone/ RAL Color, Blue, White | Material Surface: | Matte Surface |
| Rear Adhesive: | 3M468 | Feature: | Embossed Button, LCD |
| Material: | PET | Surface Finishing: | UV |
| Type: | Meet Customer's Demand,Adhesive Sticker | Size: | Customized Size, Requst |
| Usage: | OEM Electronics | Shape: | Customized Die Cut |
| High Light: | UV digitally printed overlays,Tactile Glossy digitally printed overlays,PET polycarbonate overlay |
||

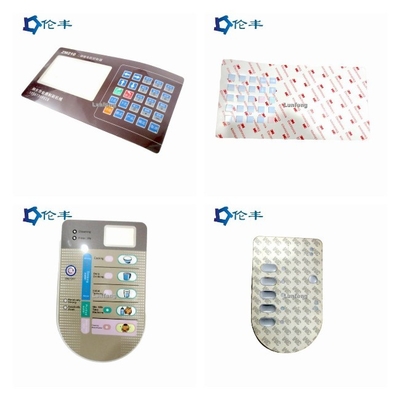

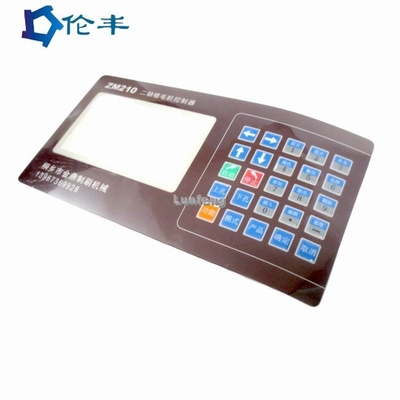

Graphic Panel Overlay Tactile Glossy PET overlay
What is a Graphic Overlay?
A graphic overlay is the outermost layer of the front panel. It is the intuitive part of an electronic interface that connects the user to the machine, device, or equipment; and the part of the front panel switch which is visible to the user, graphically defining the locations of the keypads, and explaining the operation of the equipment. For these reasons, the panel graphic overlay plays a significant role in defining the user experience.
Graphic Overlays Customization Capabilities
Custom graphic overlays create bright colors and clear designs on a wide range of substrates and materials. Dyna-Graphics offers special ultraviolet selective textures and hard coat treatments to protect lens areas from chemicals and scratching. Backlighting can also be added to the overlay to improve visibility in low-light applications. 3M adhesives enhance the performance of your overlay and are selected based on your operating environment and substrate. Customization can add features to these overlays that can provide enhanced protection from temperature extremes, harsh chemical, dirt and dust and frequent cleaning regimens.
Our Advantage:
We Focus in membrane switch and related items.
Applications:
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch | 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm | 0.5mm, 1.0mm, 1.27mm, 2.54mm |
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
