| Product Name: | Customized Push Button Graphic Panel Overlay Flat PC With 3M Adhesive | Application: | Various Industry Control Keypad Panel |
|---|---|---|---|
| Colors: | Pantone/ RAL Color, Red, Pink, Blue, Green | Material Surface: | Glossy Or Matte LOOK |
| Rear Adhesive: | 3M467/ 468MP/ 200MP/ 9080AMP/ 55280MP | Feature: | Embossed Keys, |
| Material: | PC Lexan PVC | Membrane Switch: | Control System, Switch Panel Etc |
| Surface Finishing: | Embossing Or As Customer Requirement | Shape: | Customized |
| High Light: | flat PC Graphic Panel Overlay,3M Graphic Panel Overlay,push button custom electrical control panels |
||

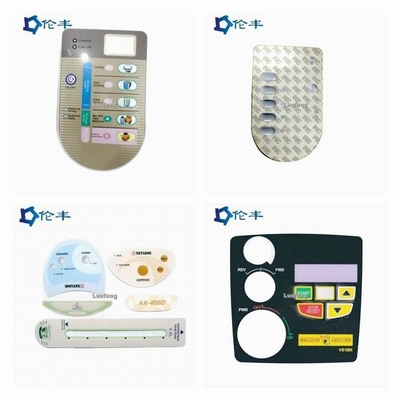

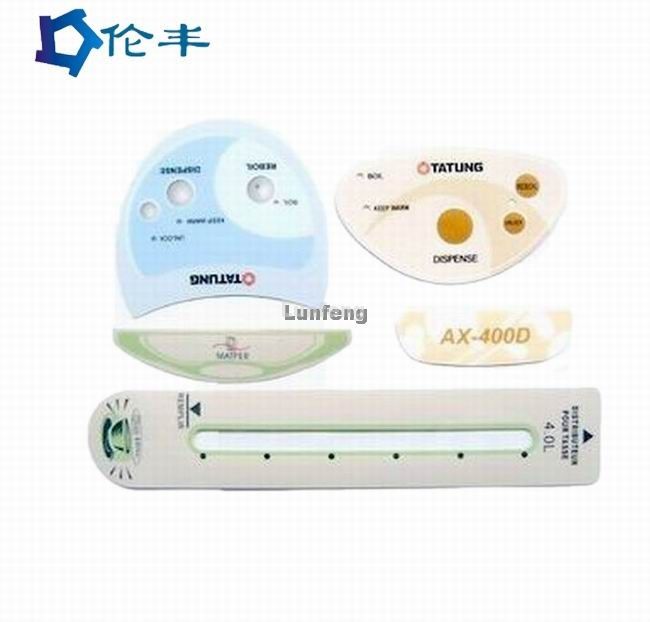

customized push button Graphic Panel Overlay flat PC With 3M Adhesive
Graphic Overlay Printing
Graphic overlays are thin films printed as the top layer of a product. They apply printed graphics and text to label controls to provide instructions or safety warnings while serving one or two purposes: a decorative layer or a functional layer. Decorative graphic overlays focus more on aesthetics and are customized with graphics, logos, or product information. Functional overlays are designed for backlighting applications, membrane switches and rubber keypads or as a touch screen interface for control panels.
As a leading graphic overlay manufacturer, Lunfeng uses advanced systems and technology to create graphic overlays in any shape and sizes up to 30”x40”. We can print almost any aesthetic design or format, and we specialize in graphic overlays as static components for membrane switches and rubber keypads. Our experts will help you create a design that meets your aesthetic and functional needs.
Our Advantage:
We Focus in membrane switch and related items.
Applications:
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch | 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm | 0.5mm, 1.0mm, 1.27mm, 2.54mm |
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
