Customized PET Graphic Overlay Front Sticker For Alcohol Tester

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: LFGO308
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Product: Customized PET Graphic Overlay Front Sticker For Alcohol Tester Name: Custom Graphic Sticker
Colors: Pantone/ RAL Color, Black, Gray Material Surface: Glossy Texture
Rear Adhesive: 3M9080A Material: PET And PC
Surface Finishing: Flat, Glossy Application: OEM Electronics, Alcohol Tester
Printing: Silk-screen Printing Thickness: Special Requirement Acceptable
High Light:

PET Graphic Overlay Front Sticker

,

Alcohol Tester Graphic Overlay Sticker

Customized PET Graphic overlay front sticker for Alcohol Tester





Graphic overlays identify essential information on how to operate equipment, convey branding, and other important system interfaces. Although they’re relatively straightforward in design, graphic overlays play critical roles in both the operation and protection of electronic devices, equipment, and machinery. A graphic overlay can be a stand alone type label or the top layer of a membrane switch assembly.

Because the graphic overlay is commonly the first thing customers see when interacting with your product, it’s essential that these components to be attractive, easy to use, and true to your brand. On top of this, graphic overlays must also be durable enough to withstand repeated use over time.



In this post, we explore a few of the most prevalent uses of graphic overlays, and we also share some tips on how to get the most from your graphic overlay design.




Applications:

* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system






Items Silver Printed Circuit Copper Etched FPC Circuit
Material PET (Polyester) Copper
Conductor Printed silver Copper
Contact Fingers Silver and Carbon Gold plated
Contact Buttons Pads Silver Gold plated
Life & Reliability normal good
Stability normal good
Resistance low Very low
Cost low high
Lead Time 2-3 days 7-10 days
Pitch 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm 0.5mm, 1.0mm, 1.27mm, 2.54mm







1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180





2.Mechanical Properties



Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm





3.Environmental and Storage Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours





FAQ:



Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

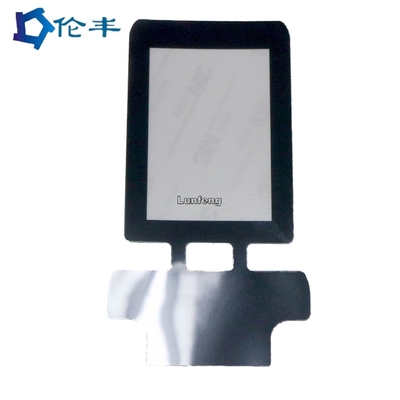

 Customized PET Graphic Overlay Front Sticker For Alcohol Tester 0

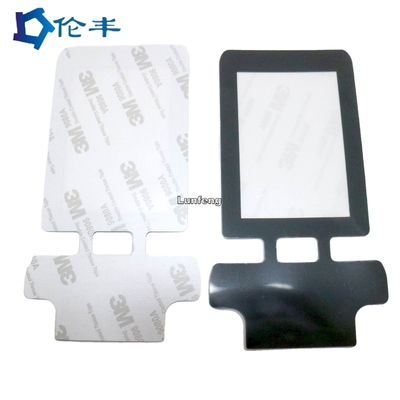

Customized PET Graphic Overlay Front Sticker For Alcohol Tester 1
