PET Membrane Switch Keypad With LEDs And FPC Circuit For Ericsson Products

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: LFMS-394
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Product Name: PET Membrane Switch Keypad With LEDs And FPC Circuit For Ericsson Products Used On: Telecommunication Equipment
ColorS: Pantone RAL Color, Blue, Green, White Rear Adhesive: 3M 300 LSE
Feature: Metal Domes, Matte Surface, Green LED Switch Type: Membrane Switch Keypad
Connector: 2.54mm Female Connector Key: Key Embossing
Cable: Custom Cable Length Certification: ISO9001 ISO14001 ROHS CI FDA SGS
High Light:

Membrane Switch Keypad With LEDs

,

Ericsson Products Membrane Switch Keyboard

,

PET Membrane Switch Keypad

PET Membrane Switch keypad with LEDs and FPC circuit for Ericsson products




Components of a Membrane Switch

Membrane switches are made up of two flexible printed circuits, physically separated by a spacer. When the button is pressed, holes in the spacer allow the two circuits to contact completing the circuit. The printed top layer is known as the Graphic Overlay. It is normally made of clear polycarbonate or polyester, and reverse printed to protect the image from wear, solvents and abrasion.

Membrane switches, when combined with components such as a tactile dome, graphic overlay, or integrated LEDs or resistors can provide the designer with virtually limitless capabilities to create the ideal custom user interface for their products.

Membrane switches are a thin durable form of momentary switching that is commonly used throughout industry. Membrane switch is made of several layers including soft insulating material and electric material, with free lock and touch feature. It is assembled with the function of switch, front panel, graphic overlays, LCD Transparent windows, imbedded LED, soft circuit panel, male connector and electroluminescent (EL) backlighting.


Our Advantage:

We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available

Applications:

* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system






Items Silver Printed Circuit Copper Etched FPC Circuit
Material PET (Polyester) Copper
Conductor Printed silver Copper
Contact Fingers Silver and Carbon Gold plated
Contact Buttons Pads Silver Gold plated
Life & Reliability normal good
Stability normal good
Resistance low Very low
Cost low high
Lead Time 2-3 days 7-10 days
Pitch 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm 0.5mm, 1.0mm, 1.27mm, 2.54mm







1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180





2.Mechanical Properties



Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm





3.Environmental and Storage Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours





FAQ:



Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

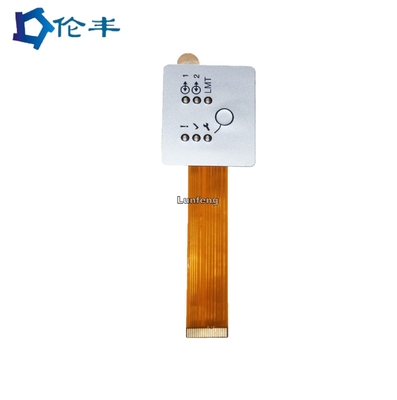

PET Membrane Switch Keypad With LEDs And FPC Circuit For Ericsson Products 0

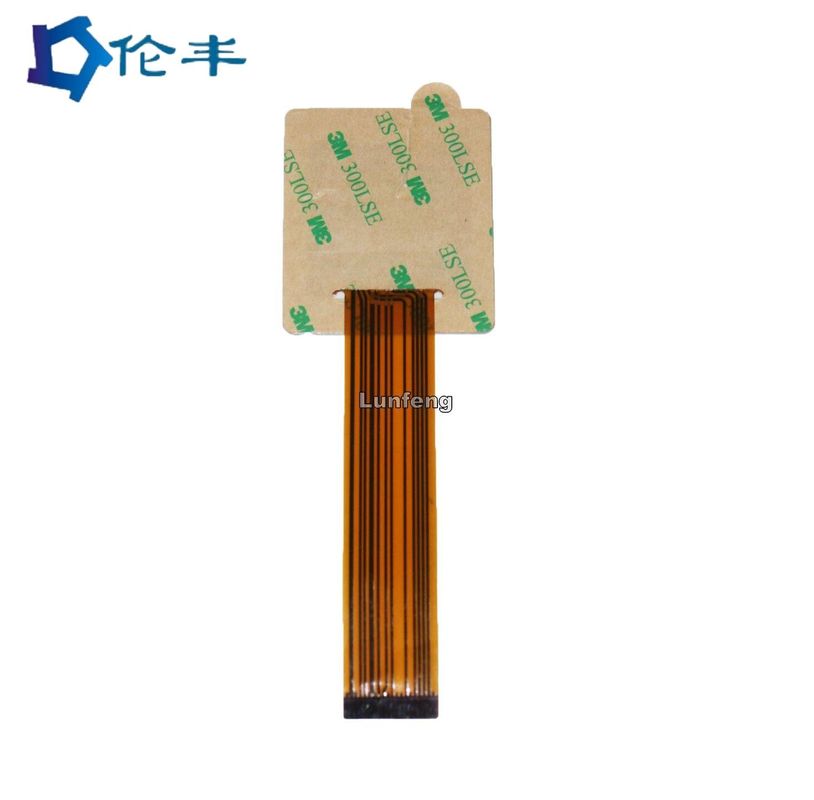

PET Membrane Switch Keypad With LEDs And FPC Circuit For Ericsson Products 1
