| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Lunfeng |
| Certification: | ISO9001:2015 |
| Model Number: | LFGO916 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | First put into a polybag, then paked into a carton. According to clients' special requirements. |
| Delivery Time: | 7-25 working days, To be negotiated |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000 Piece/Pieces per Month |
| Product: | PC PVC Membrane Front Panel Overlays Nameplate | Name: | Front Overlays, Nameplate |
|---|---|---|---|
| Colors: | Pantone/ RAL Color, Black, White Colors | Material Surface: | Matte |
| Rear Adhesive: | 3M467 3M468 | Material: | PC |
| Feature: | Flat | Shape: | Customized Shape, Oval |
| High Light: | PC Membrane Front Panel Overlays,ISO9001 Front Overlays,ISO9001 Front Panel Nameplate |
||

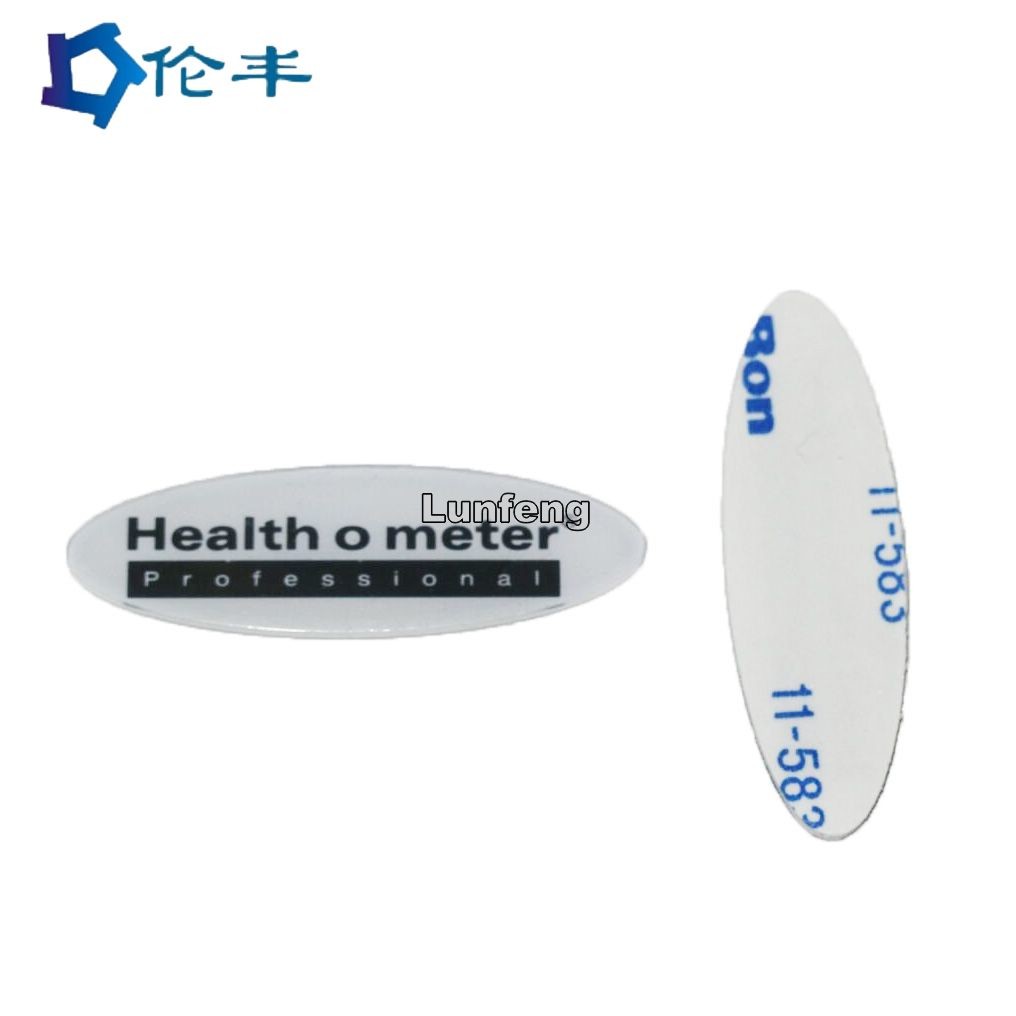

PC PVC Membrane Front Panel Overlays nameplate
Front Panel Graphic Overlays are manufactured in a variety of shapes, sizes and materials, customizing each label to your industry and application requirements.
Printing via spot-color or CMYK full-color imaging using digital or screen-printing processes. An unlimited range and number of colors can be printed.
Specific PMS, RAL colors can be printed, or any color can be matched from a sample, ensuring that branding and corporate colors are correct and repeatable.
Polycarbonate and Polyester Overlays, Graphic Overlays, and Front Panel Overlays can incorporate embossed buttons and decoration, LCD display windows and LED windows with transparent tints. Window tints with translucent colors can be used to indicate specific functions on Membrane Keypads. Dead front effects can be printed with semi transparent inks so LED’s can be “hidden”unless they are lit up.
Applications:
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch | 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm | 0.5mm, 1.0mm, 1.27mm, 2.54mm |
1.Electrical Properties | Membrane Switch | ||
Electrical Level: | 35V(DC), 100mA,1W | ||
Contact Resistance: | 10Ω~500 Ω | ||
Insulation Resistance: | 100MΩ/100V | ||
Dielectrics Voltage-resistance: | 250VRms(50~60Hz 1min) | ||
Chattering Time: | ≤ 5ms | ||
Life Time: | Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 | ||
Tail Folding: | R>1,180 | ||
|
| ||
2.Mechanical Properties |
| ||
Operating Force: | Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) | ||
Switch Stroke: | Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm | ||
|
| ||
3.Environmental and Storage Conditions |
| ||
Operation Temperature: | -40°C ~ +80°C | ||
Storage Temperature: | -40°C ~ +80°C | ||
Humidity: | 40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
