| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Lunfeng |
| Certification: | ISO9001:2015 |
| Model Number: | LFGO916 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | First put into a polybag, then paked into a carton. According to clients' special requirements. |
| Delivery Time: | 7-25 working days, To be negotiated |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000 Piece/Pieces per Month |
| Product: | Custom PET PC Front Panel Graphic Panel For Radio | Name: | Front Panel |
|---|---|---|---|
| Colors: | Pantone/ RAL Color, Black, White, Blue | Material Surface: | Matte Texture |
| Rear Adhesive: | Adhesive 3M467 3M468 | Material: | PC PET |
| Feature: | Flat | Usage: | Radio |
| Product Name: | Membrane Control Panel Graphic Overlay | Size: | Customized Size |
| High Light: | Front Graphic Panel For Radio,PET Graphic Panel For Radio,Graphic Panel Overlay ISO9001 |
||

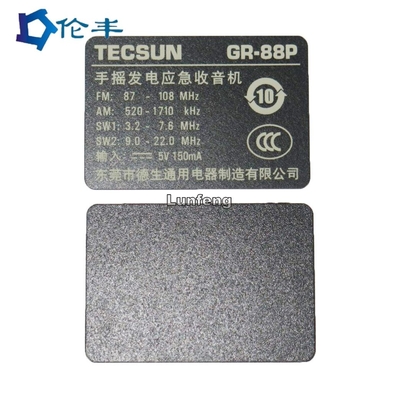

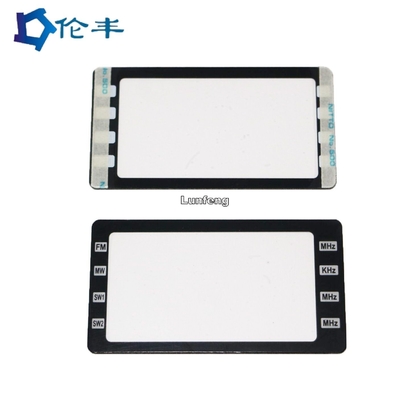

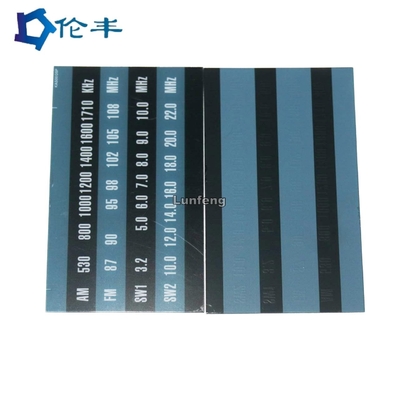

custom PET PC Front Panel Graphic panel For Radio
Polyester Graphic Overlays are extremely weather, scratch resistant and UV resistant stickers. Polyester graphic overlays (PET Graphic Overlays) are strong, durable and have excellent clarity and legibility characteristics. Recommended for membrane switches, especially when embossing is involved, such as keyboards and keypad switch overlays.
Polyester Graphic Overlays
Additional characteristics provided by polyester graphic overlays include: Dimensional stability, Suitable for outdoor use, Excellent heat resistance, Abrasions and scratch resistance, Resistance to chemical and corrosive materials.
Custom Printed Polyester Graphic Overlays
Graphic Overlays China can produce your custom Polyester Graphic Overlays, including Polyester Warning Stickers, Polyester Overlays, Polyester Control Panels, PET Overlays, Polyester Overlay Printing, Sequentially Numbered Polyester Overlays, Bar Coded Polyester Graphic Overlays, Screen Printed Polyester Graphic Overlays and Weighing Instrument Polyester Graphic Overlays.
Applications:
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch | 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm | 0.5mm, 1.0mm, 1.27mm, 2.54mm |
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
