|Place of Origin:||Shenzhen, China|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||First put into a polybag, then paked into a carton. According to clients' special requirements.|
|Delivery Time:||7-25 working days, To be negotiated|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||500000 Piece/Pieces per Month|
|Product Name:||Customized Flat Membrane Switch Mechanical Keyboard Key||ColorS:||Pantone/ RAL Color, White, Gray, Blue|
|Material:||PET, Polyester(PET),||Rear Adhesive:||3M Adhesive 3M9448|
|Feature:||No Metal Domes, Matte Surface, Silver Circuit||Connector:||2.54mm Pitch Black Connector|
|Key:||Flat Keys, Flat Buttons||Type:||Without Leds, NO LCD Window|
Pantone Custom Membrane Switch,
3M9448 Adhesive Custom Membrane Switch,
3M9448 Adhesive Flat Membrane Switch

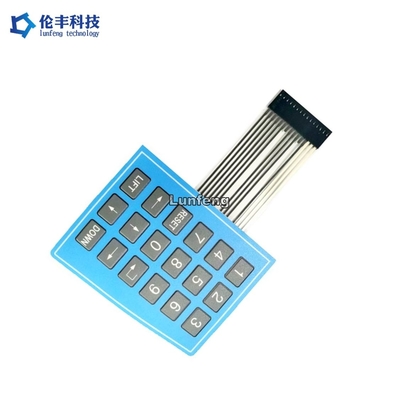

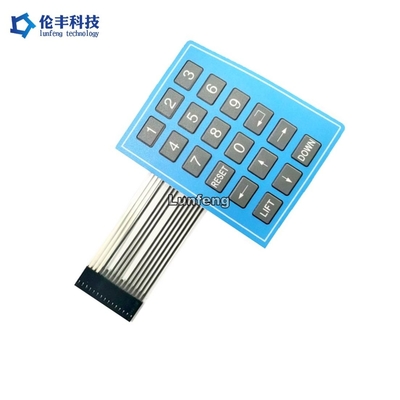

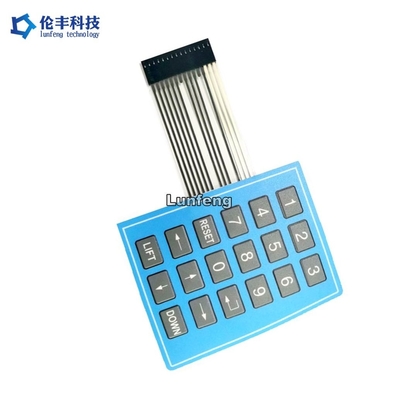

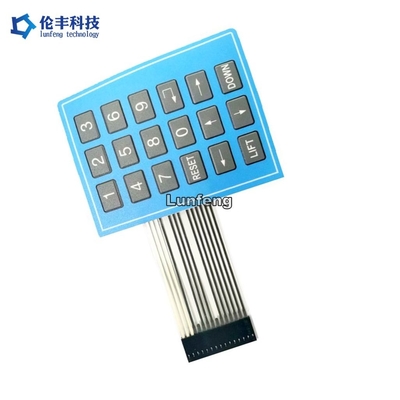

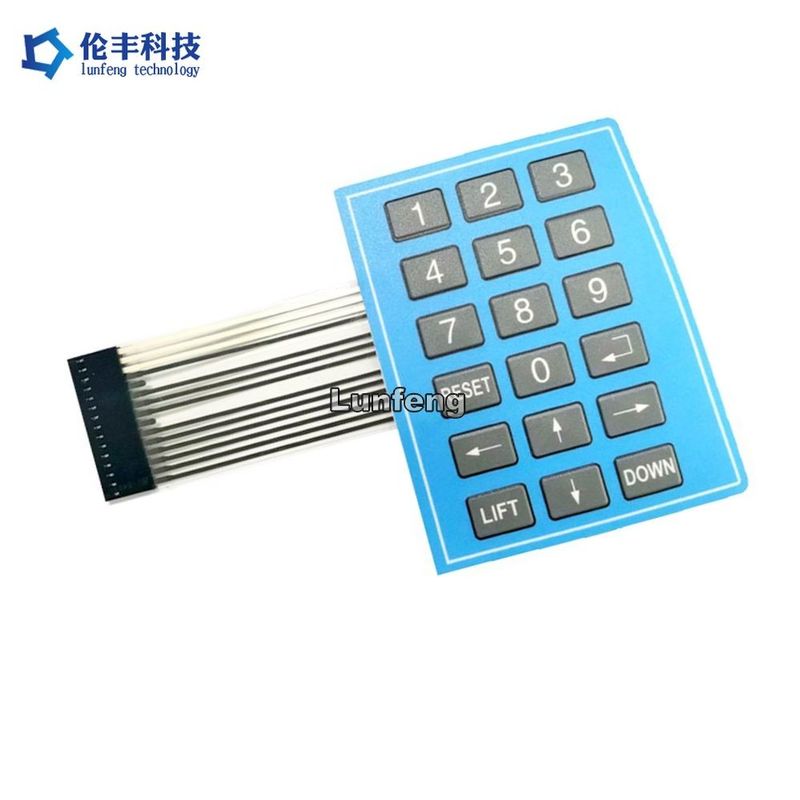

Customized Flat Membrane Switch Mechanical Keyboard Key
What is a Membrane Switch?
A membrane switch is an electrical control for turning a circuit on and off. Membrane switches are more cost-effective and take up less design space than mechanical switches or buttons because of their low profile. Membrane switches are easy to clean which makes them ideal for Medical or industrial controls.
You may have held a dozen membrane switches and not even known it. A slim-profile plastic remote controller, keypad, or touchpad with buttons consisting of raised impressions in a sealed outer layer is almost certainly a membrane switch. They are convenient, inexpensive, and highly portable.
This is possible because a membrane switch (also known as a touch switch or membrane keypad) is constructed from flexible layers or “membranes” – thin like plastic wrap but made of polyester – sandwiched together like stacked sheets of paper. These layers can interact with each other when stimulated from the top down.
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm
0.5mm, 1.0mm,1.27mm, 2.54mm
|1. Electrical Properties||Membrane Switch|
|Electrical Level:||35V(DC), 100mA,1W|
|Contact Resistance:||10Ω~500 Ω|
|Dielectrics Voltage-resistance:||250VRms(50~60Hz 1min)|
|Chattering Time:||≤ 5ms|
|Life Time:||Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000|
|2. Mechanical Properties|
|Operating Force:||Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)|
|Switch Stroke:||Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm|
|3. Environmental and Storage Conditions|
|Operation Temperature:||-40°C ~ +80°C|
|Storage Temperature:||-40°C ~ +80°C|
|Humidity:||40°C, 90%~95%, 240 hours|
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
