| Product Name: | FPC Circuit Flat Membrane Switch, Membrane Touch Control Panel For Coffee Machine | ColorS: | Pantone/ RAL Color, White, Black |
|---|---|---|---|
| Material: | PET, Polyester(PET), | Rear Adhesive: | 3M Adhesive 3M467 |
| Feature: | No Metal Domes, Matte Surface, FPC Circuit | Connector: | 1.0mm Pitch Black Connector |
| Key: | Flat Keys, Flat Buttons | Type: | Without Leds, NO LCD Window |
| High Light: | Coffee Machine Flat Membrane Switch,FPC Flat Membrane Switch,1.0mm Membrane Touch Control Panel |
||

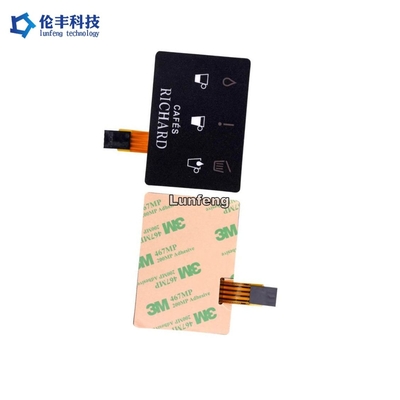

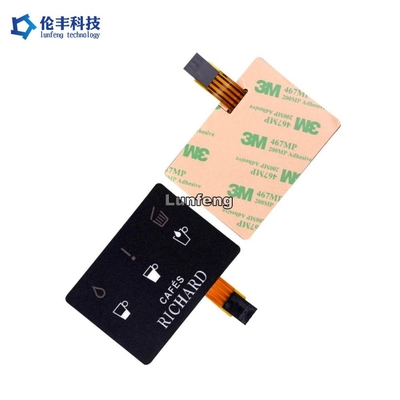

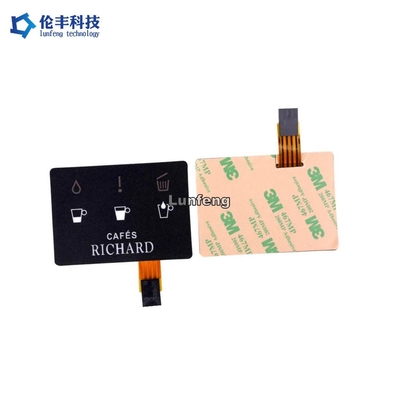

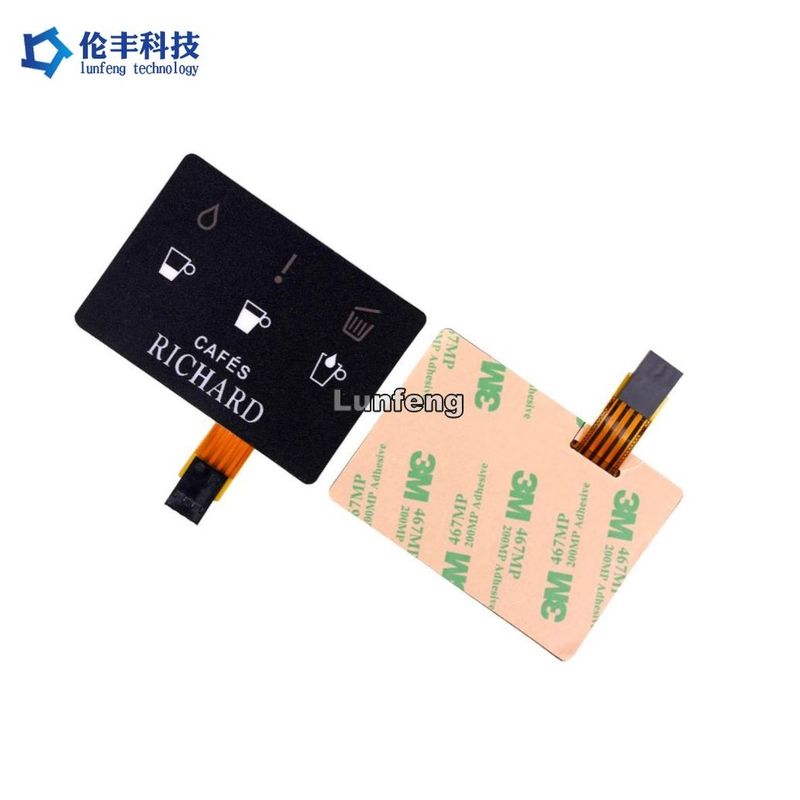

FPC Circuit Flat Membrane Switch, Membrane Touch Control Panel For Coffee Machine
Flexible membrane switch assemblies (FPC membrane switch, silver flex membrane switches, and PCB membrane switch). Custom membrane switch panel will be based on product application, circuit density, conductivity, resistance, whether many electronic components are required, operating environment, customer budget, and whether to pay attention to silver migration. Silver migration usually occurs in Silver Flex Membrane Switches, which is caused by high voltage and humid environments. At this time we will have two suggestions:
The silver line is printed with carbon oil, but it may not solve the problem.
Use FPC or PCB as wiring.
Applications:
Our Advantage:
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch |
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm |
0.5mm, 1.0mm,1.27mm, 2.54mm |
| 1. Electrical Properties | Membrane Switch | ||
| Electrical Level: | 35V(DC), 100mA,1W | ||
| Contact Resistance: | 10Ω~500 Ω | ||
| Insulation Resistance: | 100MΩ/100V | ||
| Dielectrics Voltage-resistance: | 250VRms(50~60Hz 1min) | ||
| Chattering Time: | ≤ 5ms | ||
| Life Time: | Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 | ||
| Tail Folding: | R>1,180 | ||
| 2. Mechanical Properties | |||
| Operating Force: | Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) | ||
| Switch Stroke: | Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm | ||
| 3. Environmental and Storage Conditions | |||
| Operation Temperature: | -40°C ~ +80°C | ||
| Storage Temperature: | -40°C ~ +80°C | ||
| Humidity: | 40°C, 90%~95%, 240 hours |
