| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Lunfeng |
| Certification: | ISO9001:2015 |
| Model Number: | LFZDX072 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | First put into a polybag, then paked into a carton. According to clients' special requirements. |
| Delivery Time: | 7-25 working days, To be negotiated |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000 Piece/Pieces per Month |
| ColorS: | Pantone/ RAL Color, Black, White, Blue, Orange, Green | Material: | PET, Polyester(PET), 0.15mm Matte PET |
|---|---|---|---|
| Rear Adhesive: | 3M467 | Feature: | Matte Surface, FPC Circuit |
| Connector: | 1.0mm Pitch, Black Connector | Key: | Embossed Keys Metal Domes, |
| LED: | With Leds, LGF Film | Window: | Transparent LCD Window, NO Punch Holes |
| High Light: | LED Membrane Switch Overlay,FPC Cable Membrane Switch Overlay,1.0mm Pitch Membrane Switch Overlay |
||

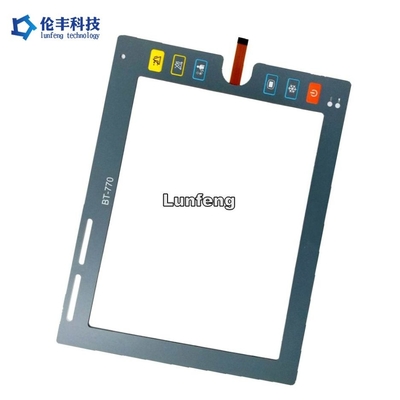

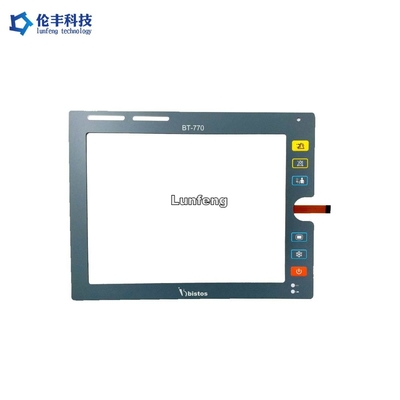

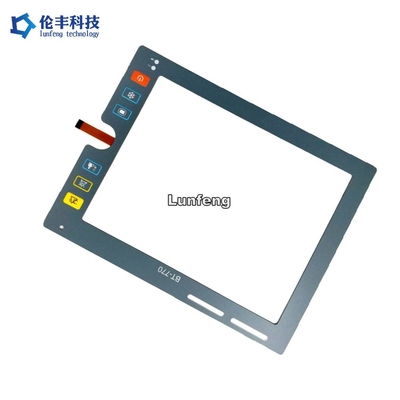

Factory Custom LED LGF Membrane Switch Overlay Big Window FPC Cable
1. Lower Circuit Layer – This layer is a 0.1mm--0.25mm thickness thermostable PET film printed with conductive silver ink and also dielectric oil. This layer terminates as a flexible tail that serves as an interconnector to controller PCBs or other IC.
2. Rear Adhesive – This adhesive layer bonds the entire membrane switch to the product surface, housing, or to a rigid support panel. UNIGREAT can use the proper adhesive type and thickness to bond your membrane switch to your equipment.
3. Graphic Overlay – PET/PC is usually the material of choice due to its fantastic chemical resistance and flex property . UNIGREAT can do digital printing, screen-printing, or apply both methods to ensure you get the right colors, textures and finish your design requirements.
4. Overlay Adhesive – This adhesive layer stick the graphic overlay to the top circuit layer, and is usually an acrylic adhesive. The material is same with the fourth layer. Only the thickness maybe different according to the actual situation.
Applications:
Our Advantage:
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch |
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm |
0.5mm, 1.0mm,1.27mm, 2.54mm |
| 1. Electrical Properties | Membrane Switch | ||
| Electrical Level: | 35V(DC), 100mA,1W | ||
| Contact Resistance: | 10Ω~500 Ω | ||
| Insulation Resistance: | 100MΩ/100V | ||
| Dielectrics Voltage-resistance: | 250VRms(50~60Hz 1min) | ||
| Chattering Time: | ≤ 5ms | ||
| Life Time: | Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 | ||
| Tail Folding: | R>1,180 | ||
| 2. Mechanical Properties | |||
| Operating Force: | Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) | ||
| Switch Stroke: | Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm | ||
| 3. Environmental and Storage Conditions | |||
| Operation Temperature: | -40°C ~ +80°C | ||
| Storage Temperature: | -40°C ~ +80°C | ||
| Humidity: | 40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
