|Place of Origin:||Shenzhen, China|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||First put into a polybag, then paked into a carton. According to clients' special requirements.|
|Delivery Time:||7-25 working days, To be negotiated|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||500000 Piece/Pieces per Month|
|Name:||Autotype F150 PET Flat Membrane Switch, Membrane Switch Rapid Prototype Embossed Keys||Material:||PET, Polyester(PET), 0.188 Mm Glossy PET|
|Rear Adhesive:||3M467, 3M9448||ColorS:||Pantone/ RAL Color, Black, Blue, Gray|
|Feature:||Matte Surface, SILVER Circuit Cable||Connector:||2.54mm Pitch, ZIF End With Stifener|
|Key:||Flat Keys With Metal Domes,||LED:||NO Leds, NO LGF Film|
|Window:||NO LCD Window, ONE Punch Holes|
Glossy PET Flat Membrane Switch,
3M467 Prototype Membrane Switch,
matte Look Prototype Membrane Switch

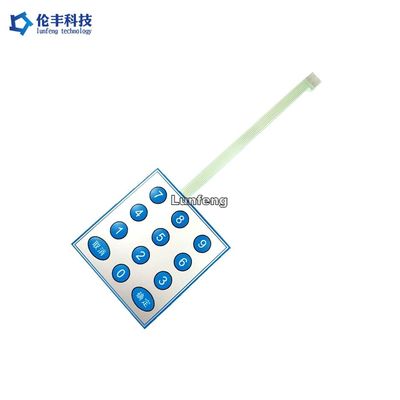

Autotype F150 PET Flat Membrane Switch, Membrane Switch Rapid Prototype Embossed Keys
Membrane Switch Characteristics
Membrane switches are available in various forms and are capable of providing different feedback levels to the user. When you work with us, you’ll notice we use terms such as audible, tactile, snap acting dome and poly-dome when discussing the feel and behavior of your membrane switch.
Characteristics of traditional membrane switches – Traditional switches use a printed polyester membrane with a printed layer of conductive silver ink as the circuit and actuation layers. Membrane layers are separated by a spacer that provides a gap between the upper and lower circuit to keep the switch in an open state. Pressing on the switch location compresses the upper circuit and causes the printed silver contact area to bridge the gap, close the contact, and complete the circuit. When pressure is released, this restores the gap. This type of membrane switch does not provide any feedback to the user other than the event taking place.
Additional options – We can also incorporate a thermal-formed polyester switch layer at the contact locations (printed with conductive silver) that are embossed (raised) to form a dome. These poly-domes then take on some of the behavior of a snap acting metal dome to provide positive tactile feedback, but they generally do not provide audible feedback. Another option is to employ a hybrid design that incorporates a printed circuit board (PCB) as the lower circuit and any combination of membrane, dome or poly-dome employed as the upper circuit.
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm
0.5mm, 1.0mm,1.27mm, 2.54mm
|1. Electrical Properties||Membrane Switch|
|Electrical Level:||35V(DC), 100mA,1W|
|Contact Resistance:||10Ω~500 Ω|
|Dielectrics Voltage-resistance:||250VRms(50~60Hz 1min)|
|Chattering Time:||≤ 5ms|
|Life Time:||Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000|
|2. Mechanical Properties|
|Operating Force:||Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)|
|Switch Stroke:||Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm|
|3. Environmental and Storage Conditions|
|Operation Temperature:||-40°C ~ +80°C|
|Storage Temperature:||-40°C ~ +80°C|
|Humidity:||40°C, 90%~95%, 240 hours|
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
