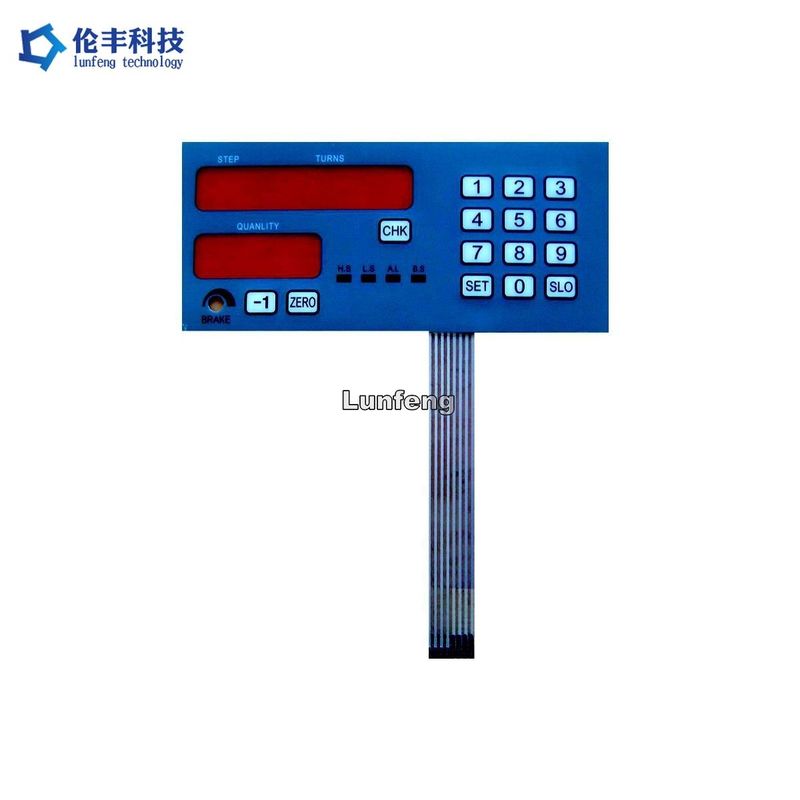

|Name:||Metal Dome Flat Membrane Switch, Membrane Switches Keyboard Tactile Keypad||Material:||PET, Polyester(PET), PET/PC/PMMA/PE/PVC|
|Rear Adhesive:||3M468||ColorS:||Pantone/ RAL Color, Black, Blue, Red|
|Feature:||Matte Surface, SILVER Circuit Cable||Connector:||2.54mm Pitch, Black Connector|
|Key:||Flat Keys With Metal Domes,||LED:||NO Leds, NO LGF Film|
|Window:||RED LCD Window, One Punch Holes|
Flat PC Membrane Switch,
RAL Membrane Switches Keyboard,
Pantone Membrane Switches Keyboard
Metal Dome Flat Membrane Switch, Membrane Switches Keyboard Tactile Keypad
Membrane switches have long been the industry standard in a variety of different applications and can be found across a wide range of industries. Simply a mechanical switch that is used in order to complete a circuit, the membrane switch is often the first choice when an economical, robust user interface is required. A typical membrane switch is a momentary, normally open switch created using a conductive stainless steel dome and its contact with a conductive printed circuit. The combination of the low-profile dome and flat printed silver circuit allow the membrane switch to used where little space is available, making it ideal for a wide variety of applications. Membrane switches can be arranged in a combination of individual circuits; schematic diagrams frequently feature common power or common ground connections which can reduce the total number of contacts (traces) required. Membrane switch circuits can also be arranged using an X,Y matrix, allowing functionality well beyond the total number of dome switches. Other electronics can be embedded within the laminated layers of the membrane switch, including low-profile indicator LEDs, LEDs for backlighting and other illumination requirements, resistors and potentiometers.
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm
0.5mm, 1.0mm,1.27mm, 2.54mm
|1. Electrical Properties||Membrane Switch|
|Electrical Level:||35V(DC), 100mA,1W|
|Contact Resistance:||10Ω~500 Ω|
|Dielectrics Voltage-resistance:||250VRms(50~60Hz 1min)|
|Chattering Time:||≤ 5ms|
|Life Time:||Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000|
|2. Mechanical Properties|
|Operating Force:||Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)|
|Switch Stroke:||Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm|
|3. Environmental and Storage Conditions|
|Operation Temperature:||-40°C ~ +80°C|
|Storage Temperature:||-40°C ~ +80°C|
|Humidity:||40°C, 90%~95%, 240 hours|
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
