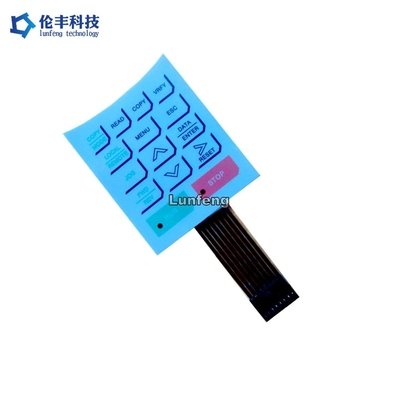

OEM / ODM Flat Membrane Switch , Custom Membrane Keyboard

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: LFZDX163
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Name: China OEM/ODM Manufacturer Flat Membrane Switch, Custom Membrane Keyboard Material: PET, Polyester(PET), Polyester
Rear Adhesive: 3M467/468, ColorS: Pantone/ RAL Color, Multi-colors, Red, Green
Feature: Matte Surface, Silver Circuit Connector: 2.54mm Pitch, ZIF End, Customized Size
Key: Flat Keys With Metal Domes, LED: One Leds, NO LGF Film
Window: No LCD Window, No Punch Holes
High Light:

Metal Domes Flat Membrane Switch

,

matte surface Custom Membrane Keyboard

,

3M467 Custom Membrane Keyboard

China OEM/ODM Manufacturer Flat Membrane Switch, Custom Membrane Keyboard


Applications:

Our Advantage:

Items Silver Printed Circuit                                   Copper Etched FPC Circuit
Material PET (Polyester) Copper
Conductor Printed silver Copper
Contact Fingers Silver and Carbon Gold plated
Contact Buttons Pads Silver Gold plated
Life & Reliability normal good
Stability normal good
Resistance low Very low
Cost low high
Lead Time 2-3 days 7-10 days
Pitch

0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm

0.5mm, 1.0mm,1.27mm, 2.54mm



1. Electrical Properties Membrane Switch
Electrical Level: 35V(DC), 100mA,1W
Contact Resistance: 10Ω~500 Ω
Insulation Resistance: 100MΩ/100V
Dielectrics Voltage-resistance: 250VRms(50~60Hz 1min)
Chattering Time: ≤ 5ms
Life Time: Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
Tail Folding: R>1,180

2. Mechanical Properties
Operating Force: Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)
Switch Stroke: Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm

3. Environmental and Storage Conditions
Operation Temperature: -40°C ~ +80°C
Storage Temperature: -40°C ~ +80°C
Humidity: 40°C, 90%~95%, 240 hours


FAQ:



Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.


Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

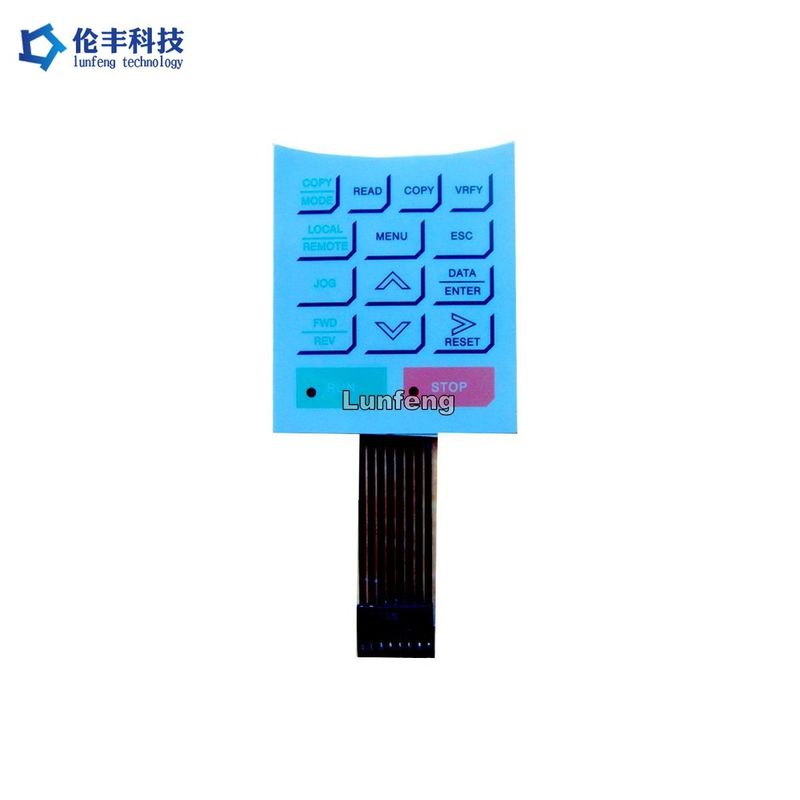

OEM / ODM Flat Membrane Switch , Custom Membrane Keyboard 0
