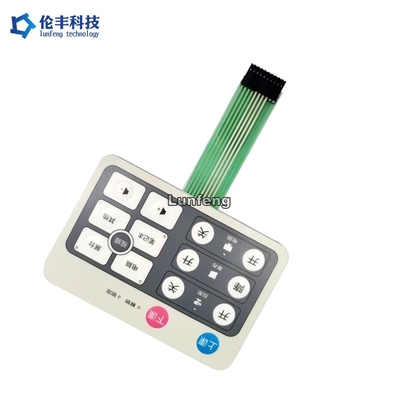

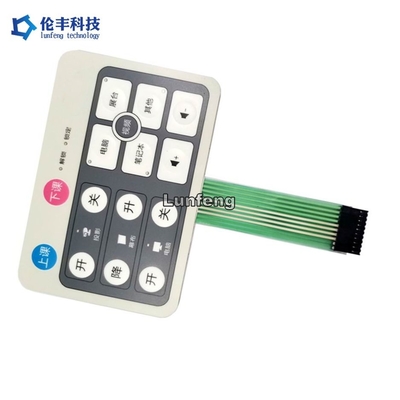

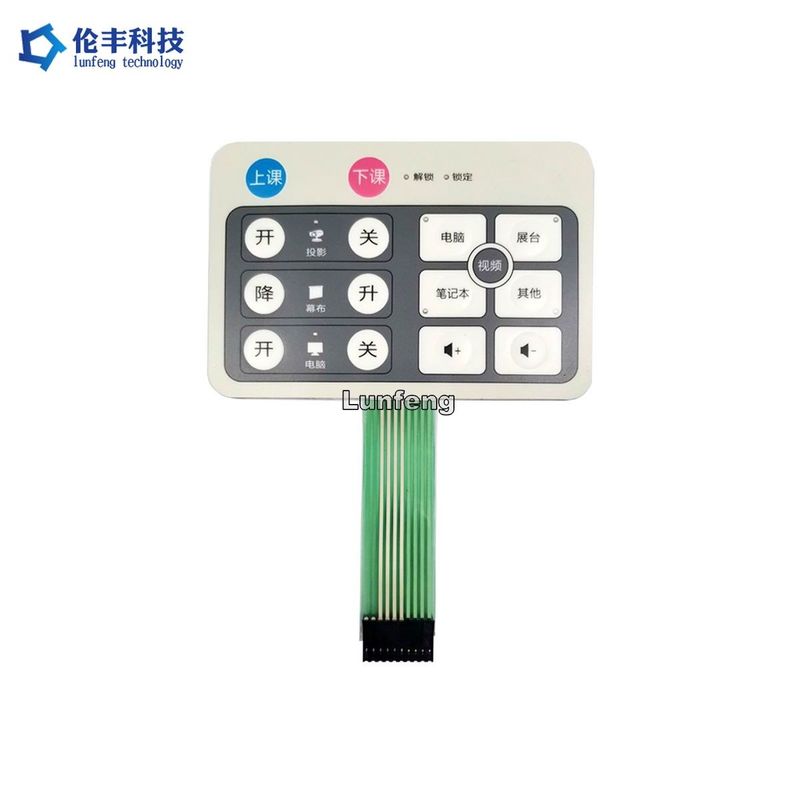

|Name:||Customized Design LED Membrane Switch Embossed Keys||Material:||PET, Polyester(PET), Polyester 0.188mm|
|Rear Adhesive:||3M467/468,||ColorS:||Pantone/ RAL Color, Multi-colors, Red, Blue, Black, White|
|Feature:||Matte Surface, Silver Circuit||Connector:||2.54mm Pitch, Black Connector, Customized Size|
|Key:||Embossing Keys With Metal Domes,||LED:||Color Leds, NO LGF Film|
|Window:||No LCD Window, No Punch Holes|
polyester 0.188mm LED Membrane Keypad,
LED Membrane Keypad 3M467 adhesive,
Rear adhesive LED Membrane Keypad
Customized Design LED Membrane Switch Embossed Keys
Membrane switch description
A membrane switch typically has 6 or more or less layers. The top layer of a membrane switch is the graphic overlay interface between the user and the machine. The other critical layer is a the circuit layer. It can also be PET, FPC or PCB. All the layers are normally assembled using pressure-sensitive adhesives. Contact between two traces can be made through a printed shorting pad or through a metal dome that stands on legs.
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm
0.5mm, 1.0mm,1.27mm, 2.54mm
|1. Electrical Properties||Membrane Switch|
|Electrical Level:||35V(DC), 100mA,1W|
|Contact Resistance:||10Ω~500 Ω|
|Dielectrics Voltage-resistance:||250VRms(50~60Hz 1min)|
|Chattering Time:||≤ 5ms|
|Life Time:||Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000|
|2. Mechanical Properties|
|Operating Force:||Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)|
|Switch Stroke:||Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm|
|3. Environmental and Storage Conditions|
|Operation Temperature:||-40°C ~ +80°C|
|Storage Temperature:||-40°C ~ +80°C|
|Humidity:||40°C, 90%~95%, 240 hours|
