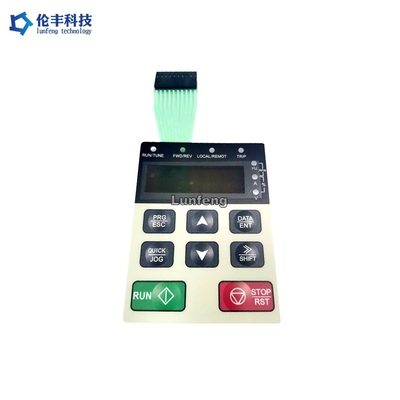

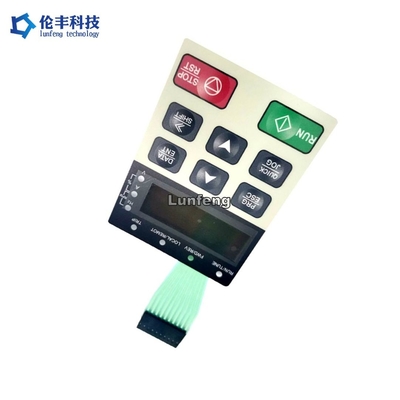

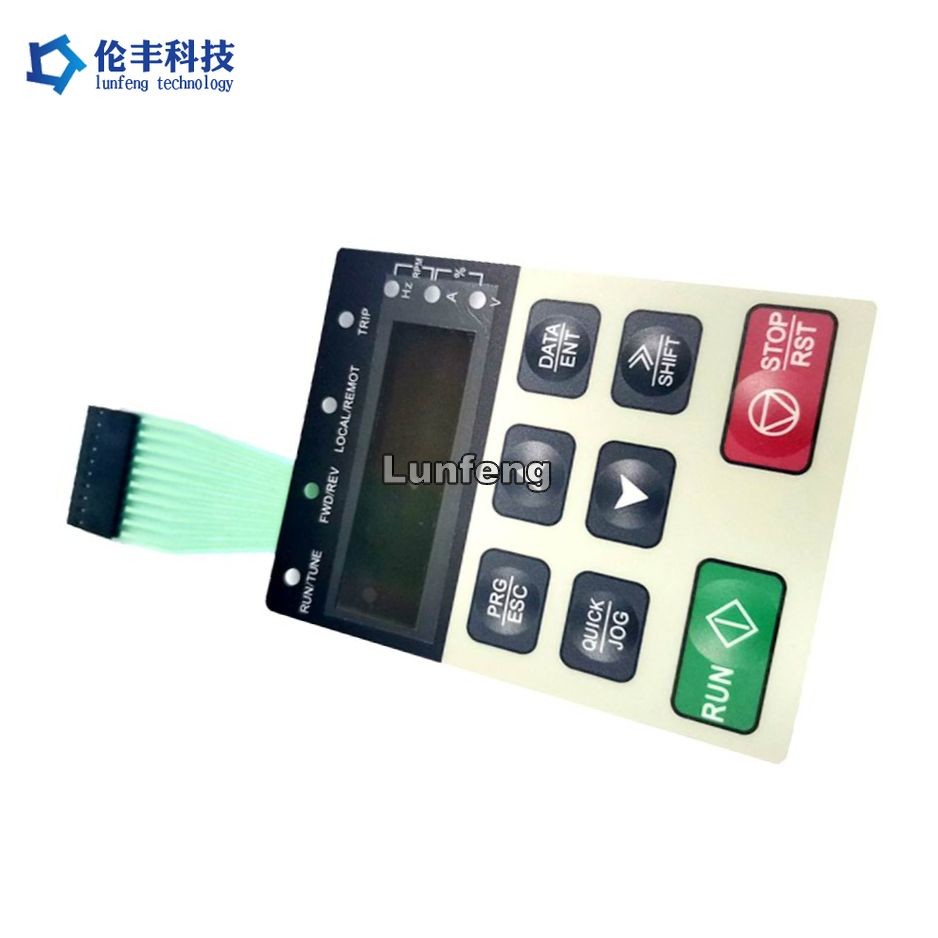

Black LCD Window Tactile LED Membrane Switch Matte Look

Black LCD Window Tactile LED Membrane Switch Matte Look

Brand Name: Lunfeng
Model Number: LFZDX110
MOQ: 1 piece
Price: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO9001:2015
Name:
Black LCD Window LED Tactile LED Membrane Switch Matte Look
Material:
PET, Polyester(PET), Polyester 0.15mm
Rear Adhesive:
3M467/468,
ColorS:
Pantone/ RAL Color, Red, Green, Black, White
Feature:
Matte Surface, Silver Circuit
Connector:
2.54mm Pitch, Black Connector,
Key:
Embossing Keys With Metal Domes,
LED:
Color Leds, NO LGF Film
Window:
Black LCD Window, No Punch Holes
Packaging Details:
First put into a polybag, then paked into a carton. According to clients' special requirements.
Supply Ability:
500000 Piece/Pieces per Month
Highlight:

Matte Look LED Membrane Switch

,

60hz LED Membrane Switch

,

Matte Look LED Membrane Keypad

Product Description

Black LCD Window LED Tactile LED Membrane Switch Matte Look



Membrane Keypad Structure
1, 4 layers structure: Graphic overlay + Spacer + Circuit(can be PET circuit or FPC circuit) + Back Adhesive
2, 6 layers structure:

   Graphic overlay + Spacer: Dome Retainer + Spacer + Circuit(can be PET circuit or FPC circuit) + Back Adhesive;
3, Other Structure
1. Overlay + Rubber Adhesive + Rubber Keypad + Rubber Adhesive + Retainer + Spacer + Circuit + Back Adhesive;
2. Overlay + Spacer + Retainer + PCB Circuit;
And also there are many other kinds of structures for the interface keypads structure. It based on customer's real needs and we can design the suitable and economical structure for our customer's final application.

  •

    Membrane switch description
    A membrane switch typically has 6 or more or less layers. The top layer of a membrane switch is the graphic overlay interface between the user and the machine. The other critical layer is a the circuit layer. It can also be PET, FPC or PCB. All the layers are normally assembled using pressure-sensitive adhesives. Contact between two traces can be made through a printed shorting pad or through a metal dome that stands on legs.

  •


Applications:

  • home appliances and device
  • Security Protection systems with Cipher Code
  • Various industry control keypad panel
  • consumer electronics and 3C item
  • Thrapy medical system and device
  • Various automtic machine control keypad
  • Telecommunication Equipment
  • Medical Equipment
  • Industrial Equipment
  • Household Equipment
  • Remote Controller
  • Control system
  •

Our Advantage:

  • We Focus in membrane switch and related items.
  • Strong R&D capability
  • Stable in quality
  • Competitive price
  • Short Lead time for samples and Mass production
  • Whole solution design available
Items Silver Printed Circuit                                   Copper Etched FPC Circuit
Material PET (Polyester) Copper
Conductor Printed silver Copper
Contact Fingers Silver and Carbon Gold plated
Contact Buttons Pads Silver Gold plated
Life & Reliability normal good
Stability normal good
Resistance low Very low
Cost low high
Lead Time 2-3 days 7-10 days
Pitch

0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm

0.5mm, 1.0mm,1.27mm, 2.54mm



1. Electrical Properties Membrane Switch
Electrical Level: 35V(DC), 100mA,1W
Contact Resistance: 10Ω~500 Ω
Insulation Resistance: 100MΩ/100V
Dielectrics Voltage-resistance: 250VRms(50~60Hz 1min)
Chattering Time: ≤ 5ms
Life Time: Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
Tail Folding: R>1,180

2. Mechanical Properties
Operating Force: Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)
Switch Stroke: Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm

3. Environmental and Storage Conditions
Operation Temperature: -40°C ~ +80°C
Storage Temperature: -40°C ~ +80°C
Humidity: 40°C, 90%~95%, 240 hours


FAQ:



Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.


Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
