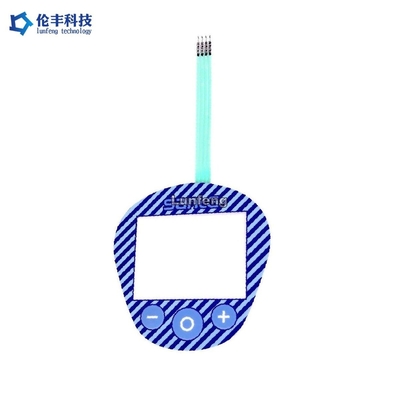

|Name:||Customized Tactile Metal Dome Flat Membrane Switch, Membrane Switch Keypad LCD Window||Rear Adhesive:||3M9448|
|ColorS:||Pantone/ RAL Color, Purple, White||Feature:||Matte Surface, SILVER Circuit Cable, Screen Printing|
|Connector:||2.54mm Pitch, Black Connector||Window:||Big LCD Window, No Punch Holes|
2.54mm Pitch Flat Membrane Switch,
5ms Flat Membrane Switch,
2.54mm Pitch Membrane Switch Keypad
2.54mm Pitch Flat Membrane Switch Keypad Tactile Metal Dome LCD Window
Customized Tactile Metal Dome Flat Membrane Switch, Membrane Switch Keypad LCD Window
Membrane switches typically feature three discreet layers; the top layer, commonly referred to as the graphic overlay, directs the user to the functionality beneath by way of printed graphics. The next layer contains the printed circuit, including the domes and embedded electronics of the membrane switch, as well as the flat flexible tail and specified connector. Finally, the bottom layer is usually made of a pressure-sensitive adhesive with a removable liner; the customer typically installs the finished membrane switch on their device before final assembly and test. Membrane Switch and Panel has worked with a range of different industries manufacturing the ideal membrane switch for our customer’s unique needs and specifications. If you feel a membrane switch solution would be appropriate for your user interface, contact us today to assist in the production of the best membrane switch for your specific application.
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm
0.5mm, 1.0mm,1.27mm, 2.54mm
|1. Electrical Properties||Membrane Switch|
|Electrical Level:||35V(DC), 100mA,1W|
|Contact Resistance:||10Ω~500 Ω|
|Dielectrics Voltage-resistance:||250VRms(50~60Hz 1min)|
|Chattering Time:||≤ 5ms|
|Life Time:||Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000|
|2. Mechanical Properties|
|Operating Force:||Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)|
|Switch Stroke:||Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm|
|3. Environmental and Storage Conditions|
|Operation Temperature:||-40°C ~ +80°C|
|Storage Temperature:||-40°C ~ +80°C|
|Humidity:||40°C, 90%~95%, 240 hours|
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
