|Place of Origin:||Shenzhen, China|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||First put into a polybag, then paked into a carton. According to clients' special requirements.|
|Delivery Time:||7-25 working days, To be negotiated|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||500000 Piece/Pieces per Month|
|Name:||Low MOQ OEM Self Adhesive Flat Membrane Switch, Membrane Switch Keyboard OEM ODM||Material:||PET, Polyester(PET), Polyester|
|ColorS:||Pantone/ RAL Color, BLACK, White||Feature:||Matte Surface, SILVER Circuit Cable, Screen Printing|
|Key:||Flat Keys With Metal Domes,||Window:||NO LCD Window, No Punch Holes|
Polyester PET Flat Membrane Keyboard,
Pantone Flat Membrane Keyboard,
ODM Membrane Switch Pad

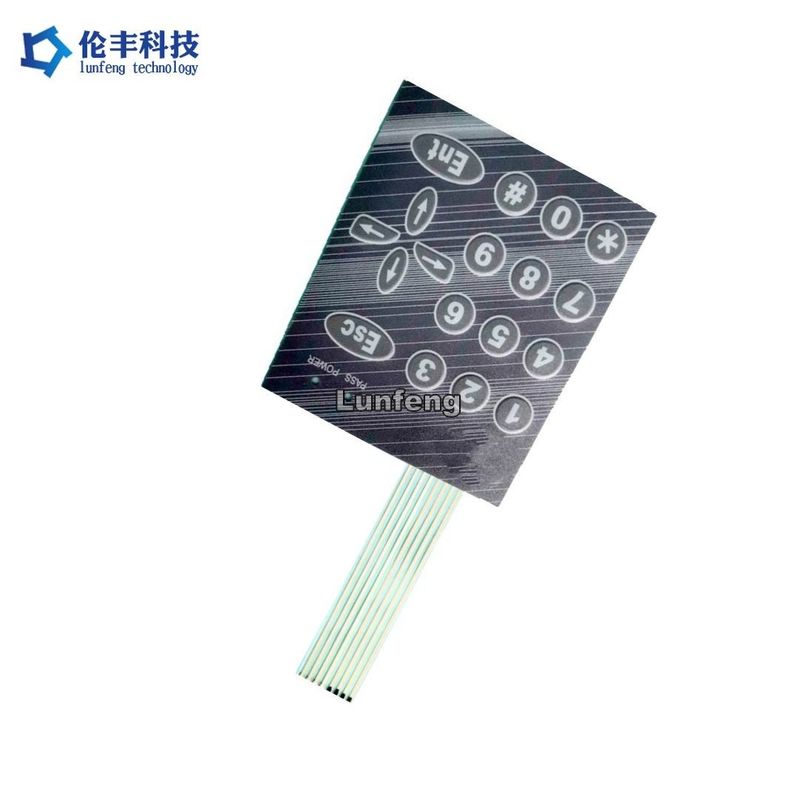

Self Adhesive Polyester PET Flat Membrane Keyboard With Metal Domes
Low MOQ OEM Self Adhesive Flat Membrane Switch, Membrane Switch Keyboard OEM ODM
Membrane switch has strict structure, beautiful appearance and good sealing. With moisture-proof, long service life and so on.Widely used in electronic communication, electronic measuring instruments, industrial control, medical equipment, automotive industry, intelligent toys, household appliances and other fields.
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm
0.5mm, 1.0mm,1.27mm, 2.54mm
|1. Electrical Properties||Membrane Switch|
|Electrical Level:||35V(DC), 100mA,1W|
|Contact Resistance:||10Ω~500 Ω|
|Dielectrics Voltage-resistance:||250VRms(50~60Hz 1min)|
|Chattering Time:||≤ 5ms|
|Life Time:||Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000|
|2. Mechanical Properties|
|Operating Force:||Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)|
|Switch Stroke:||Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm|
|3. Environmental and Storage Conditions|
|Operation Temperature:||-40°C ~ +80°C|
|Storage Temperature:||-40°C ~ +80°C|
|Humidity:||40°C, 90%~95%, 240 hours|
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
