Name: | Autotype EBG180 PET Flat Membrane Switch, Prototype Membrane Switch Tactile Keypad | Material: | PET, Polyester(PET), Polyester |
---|---|---|---|
ColorS: | Pantone/ RAL Color, BLACK, White, YELLOW | Feature: | Matte Surface, SILVER Circuit Cable, Screen Printing |
Connector: | 2.54mm Pitch, Black Connector, Customized Size | Key: | Flat Keys With Metal Domes, |
LED: | 2 Leds, NO LGF Film | ||
High Light: | EBG180 Flat Membrane Switch,EBG180 Prototype Membrane Switch,2.54mm Pitch |
Autotype EBG180 PET Flat Membrane Switch 2.54mm Pitch Tactile Prototype

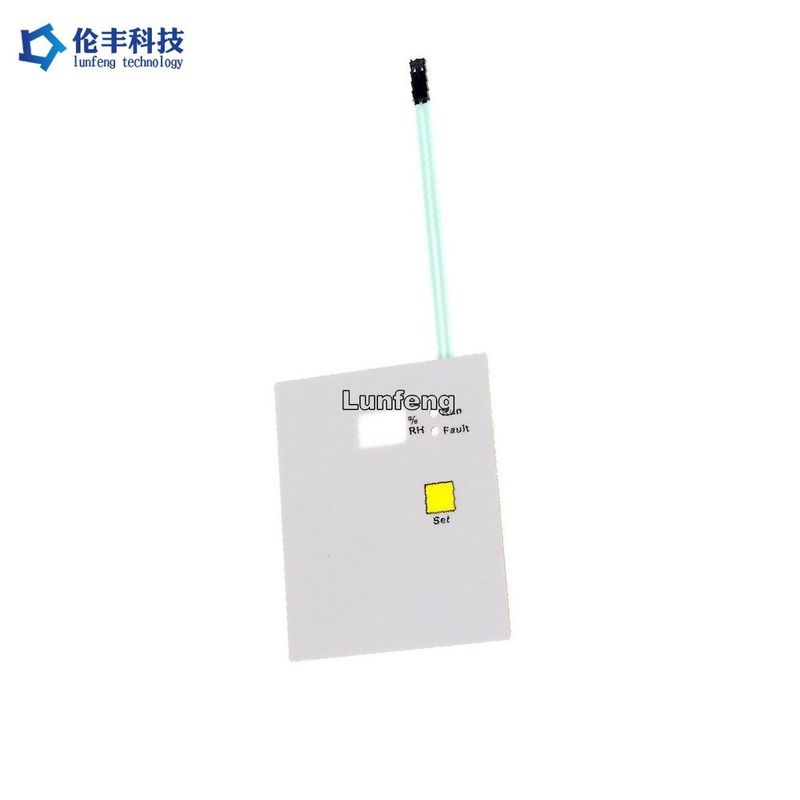

Autotype EBG180 PET Flat Membrane Switch, Prototype Membrane Switch Tactile Keypad
Membrane switch has strict structure, beautiful appearance and good sealing. With moisture-proof, long service life and so on.Widely used in electronic communication, electronic measuring instruments, industrial control, medical equipment, automotive industry, intelligent toys, household appliances and other fields.
Custom Membrane Keypad Descriptions:
Flexible Remote Control Panels
1) Custom made OEM/ODM
2) Precise silk screen printing overlay add touch screen panel
3) Rich colors
4) High sensity & High quality
5) Environment Friendly
6) Perfect exterior
6) Raw Materials: PET film overlay+ touch panel
Applications:
Our Advantage:
Items | Silver Printed Circuit | Copper Etched FPC Circuit |
Material | PET (Polyester) | Copper |
Conductor | Printed silver | Copper |
Contact Fingers | Silver and Carbon | Gold plated |
Contact Buttons Pads | Silver | Gold plated |
Life & Reliability | normal | good |
Stability | normal | good |
Resistance | low | Very low |
Cost | low | high |
Lead Time | 2-3 days | 7-10 days |
Pitch |
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm |
0.5mm, 1.0mm,1.27mm, 2.54mm |
1. Electrical Properties | Membrane Switch | ||
Electrical Level: | 35V(DC), 100mA,1W | ||
Contact Resistance: | 10Ω~500 Ω | ||
Insulation Resistance: | 100MΩ/100V | ||
Dielectrics Voltage-resistance: | 250VRms(50~60Hz 1min) | ||
Chattering Time: | ≤ 5ms | ||
Life Time: | Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 | ||
Tail Folding: | R>1,180 | ||
2. Mechanical Properties | |||
Operating Force: | Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) | ||
Switch Stroke: | Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm | ||
3. Environmental and Storage Conditions | |||
Operation Temperature: | -40°C ~ +80°C | ||
Storage Temperature: | -40°C ~ +80°C | ||
Humidity: | 40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
