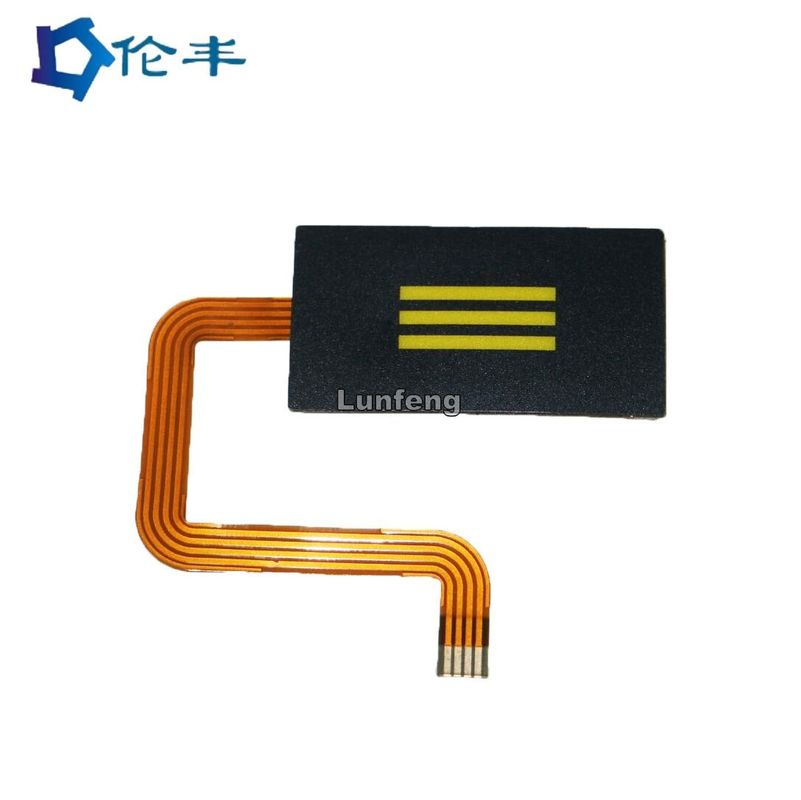

Custom Membrane Switches Panel Sticker with single button and FFC circuit
Membrane Switches custom made to your specific needs and desires. We offer a variety of substrates and special features (Options including surface texture materials, embossing, backlighting (Fiber Optic or Electroluminescent), Embedded LEDs, ESD shielding) can be incorporated to accommodate your branding efforts.
Custom Membrane Switches
Membrane switches can be tactile or non-tactile, depending on the design. Tactile switches provide a physical “click” when the user pushes it. Non-tactile switches have longer lives, but lack physical feedback to the user.
Custom Membrane Switches
Membrane Switch Panels
Membrane Keypads
Membrane Switch Overlays
Keypad Switches
Membrane Switch Nameplates
Tactile Membrane Switches
Non-tactile Membrane Switches
Membrane Switch Graphic Overlays
Full Color Printed Membrane Switches
Applications:
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch | 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm | 0.5mm, 1.0mm, 1.27mm, 2.54mm |
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
