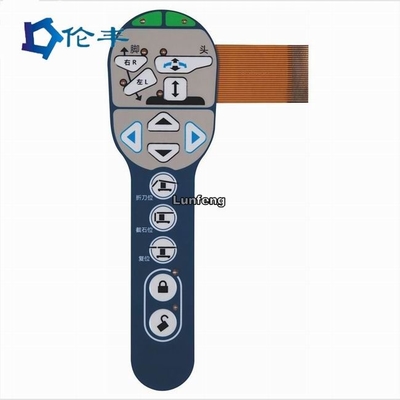

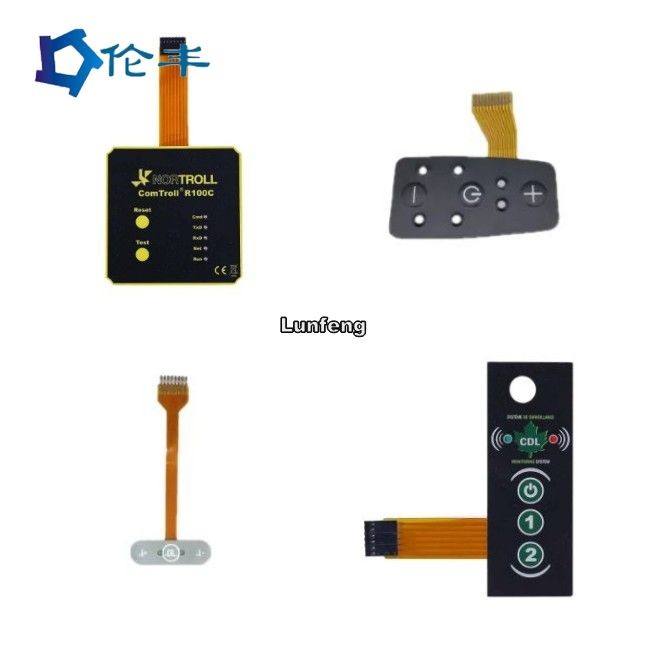

3M468 Adhesive FPC Membrane Switch Home Device LEDs Membrane Push Button Switch

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: FPCMS-012
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Product Name: FPC Membrane Switch With 3M 468 Adhesive And LEDs Used On: Home Appliances And Device
Color: Pantone Or RAL Color, Red, Green, Gray, Yellow Key Material: PET F150
Rear Adhesive: 3M467 Feature: Metal Dome, LEDs
Connector: 1.0 Mm Female Connector Type: Flexible
Size: Customized Size
High Light:

home device FPC Membrane Switch

,

3M468 Adhesive FPC Membrane Switch

,

LEDs membrane push button switch

FPC Membrane Switch With 3M 468 Adhesive and LEDs



Overlay: PET
Circuit type: Flexible FPC Combine
Button type: embossing metal dome keys
Tactile: perfect tactile feeling
Touch force: 100g -350g or as per request
Waterproof: IP67 IP54, IP65 Standard
Backadhesive: 3M Series.
Gold Finger Connector or ZIF Connector
Defect rate: less than 0.3%
Guarantee: 1 year quality Guarantee for all customers or 1 million opeation life time





Product Characters:



FPC flex circuit
Epoxy keys with 3D effect
Custom made OEM/ODM
PET0.18mm overlay
Color keys screen print are available
Withstand millions of cycles
Perfect exterior
Good touch feeling, tactile type
Security protection



Our Advantage:



We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available



Applications:



* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
Various automtic machine control keypad







1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180





2.Mechanical Properties



Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm





3.Environmental and Storage Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours






FAQ:



Q1: Are you a factory or trade company?
A :  Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay   for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
      2. If you have your own forwarder, we can cooperate with them.

Q6 :  How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch,  10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

3M468 Adhesive FPC Membrane Switch Home Device LEDs Membrane Push Button Switch 0



3M468 Adhesive FPC Membrane Switch Home Device LEDs Membrane Push Button Switch 13M468 Adhesive FPC Membrane Switch Home Device LEDs Membrane Push Button Switch 2

3M468 Adhesive FPC Membrane Switch Home Device LEDs Membrane Push Button Switch 3








3M468 Adhesive FPC Membrane Switch Home Device LEDs Membrane Push Button Switch 43M468 Adhesive FPC Membrane Switch Home Device LEDs Membrane Push Button Switch 53M468 Adhesive FPC Membrane Switch Home Device LEDs Membrane Push Button Switch 63M468 Adhesive FPC Membrane Switch Home Device LEDs Membrane Push Button Switch 73M468 Adhesive FPC Membrane Switch Home Device LEDs Membrane Push Button Switch 8
