| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Lunfeng |
| Certification: | ISO9001:2015 |
| Model Number: | FPCMS-007 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | First put into a polybag, then paked into a carton. According to clients' special requirements. |
| Delivery Time: | 7-25 working days, To be negotiated |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000 Piece/Pieces per Month |
| Product Name: | FPC Membrane Switch With 3M 467 Adhesive Tactile Dome Button | Used On: | Security Protection Systems With Cipher Code |
|---|---|---|---|
| Color: | Pantone Or RAL Color, Red, Green, Gray, Yellow | Key Material: | PET F150 |
| Rear Adhesive: | 3M467 | Feature: | Metal Domes, LEDs |
| Connector: | 1.0 Mm Female Connector | Circuit: | Flexible FPC |
| Key Option: | Flat | Led Color: | White/ Green/ Red/ Customized |
| High Light: | FPC Membrane tactile metal dome switch,3M 467 Adhesive tactile metal dome switch,LEDs custom tactile keyboard |
||

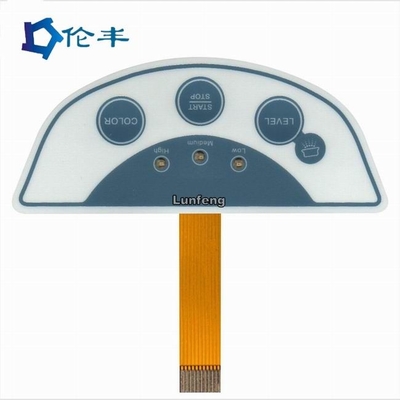

FPC Membrane Switch With 3M 467 Adhesive tactile dome button
Membrane switch is an electrical switch for turning a circuit on and off. It differs from a
mechanical switch, which is usually made of copper and plastic parts: a membrane switch is a
circuit printed on PET or ITO. The ink used for screen printing is usually copper / silver /
graphite filled and therefore conductive.
Competitive Advantage:
1. Beautiful appearance, rich and bright in color, design can be arbitrary, the products can fully reflect the individual style of the product itself and designer.
2. Panel can wash, good protection of durable color, characters, logos and other panel contents without injury.
3. Small size, light weight , thin thickness, good tactility, abrasion resistant, installation and connection convenience.
4. Tightness is good , moisture-proof, dust-proof, waterproof, anti-oil, anti-corrosion and erosion of harmful gases proof, acid and alkali proof, quakeproof.
5. Low cost,high lifespan, membrane switch's design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.
6. Easy to operate, intuitive,safe and reliable, In-house 100% functionally tested, components are guaranteed without any intermittent problem.
7. Customized specification is available and keys can make different shapes
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
About US:
Shenzhen Lunfeng Technology Co., Ltd. (“Lunfeng”) was estimated in 1995, mainly engaged in production, sale and service of all kinds of membrane switches, membrane overlay, PC, PVC, PET and aluminum plates, acrylic lenses, metal nameplate, touch screens, crystal epoxy, label papers and hot press/injection molding thermosetting composite materials ( BMC / SMC).
In strict compliance with ISO9001:2015 standard in production, we established a complete quality management system, ensuring strictness and close linking from raw material procurement to delivery. We introduced advanced computer testing equipment to ensure stable and reliable product quality which makes us taking the lead in the trade of Shenzhen.
Our company has over 200 employees for management, sale, engineering and production and a plant area of over 3,000 square meters. Our products sell well in America, Canada, the United Kingdom, France, Germany, Italy, Australia, Japan, Singapore, etc. Haiwen people know that only by high-quality products and perfect service can we win customer's trust and remain invincible in the competitive market.
We always adhere to the service tenet of "Quality Assurance, Timely Delivery, Reasonable Price, Considerate Service". We believe that with the efforts and hard work of our staff, we are bound to create a more brilliant future. We sincerely hope to cooperate with all customers for a bright future!
Welcome to contact us !
-------------------------------------------------------------------------------------------------------
Shenzhen Lunfeng Techonology Co., Ltd
