| Product Name: | FPC Membrane Switch With Flexible Circuit And Connector | Used On: | Consumer Electronics And 3C Item |
|---|---|---|---|
| Color: | Pantone Or RAL Color, Green, Yellow, Black | Key Material: | PET V200 |
| Rear Adhesive: | 3M467 | Feature: | Metal Domes, Shielding Layer |
| Connector: | 0.5 Mm Female Connector | Working Current: | ≤ 100mA |
| Style: | Recycled Materials | ||
| High Light: | 3M467 membrane switch connector,flexible circuit membrane switch connector,3C item membrane keypad connector |
||

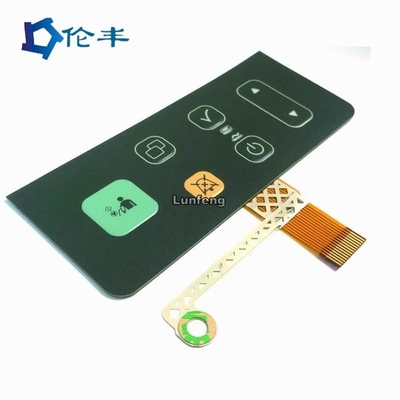

FPC Membrane Switch with flexible circuit and connector

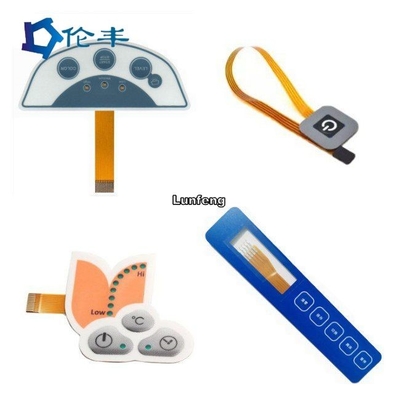

Flexible & rigid membrane switch assemblies (FPC membrane switch, silver flex membrane switches, and PCB membrane switch).
Lunfeng custom membrane switch panel will be based on product application, circuit density, conductivity, resistance, whether many electronic components are required, operating environment, customer budget, and whether to pay attention to silver migration.
Silver migration usually occurs in Silver Flex Membrane Switches, which is caused by high voltage and humid environments.
At this time we will have two suggestions:
The silver line is printed with carbon oil, but it may not solve the problem.
Use FPC or PCB as wiring.
Our Advantage:
We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available
Applications:
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
Various automtic machine control keypad
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
