| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Lunfeng |
| Certification: | ISO9001:2015 |
| Model Number: | RTP001 |
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | First put into a polybag, then paked into a carton. According to clients' special requirements. |
| Delivery Time: | 7-25 working days, To be negotiated |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000 Piece/Pieces per Month |

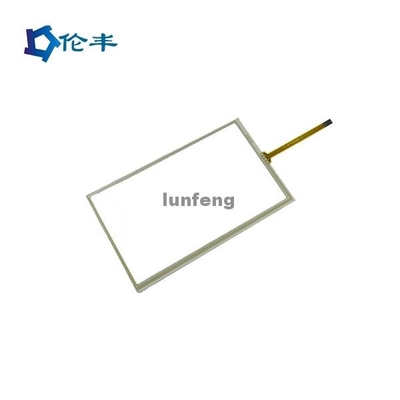

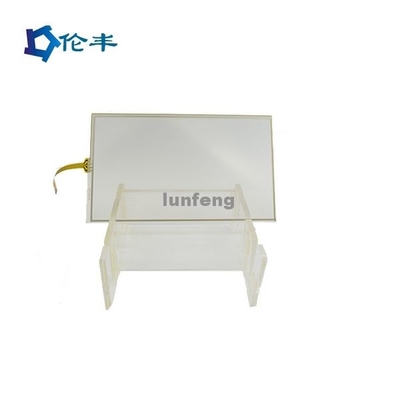

| Name: | 2.4 Inch Resistive Touch Panel Touch Screen Sensor | Application: | Portable Sport Devices |
|---|---|---|---|
| Sizes: | Customized Size, 7 10.1 12.1 12.3 15 15.6 17 18.5 19 21.5 27 32 43 55 Inch | Structures: | Film+ Glass/ Film+ Film |
| Size: | 2.4" | Conductive Glass Thickness: | ITO 0.7mm, 1.1mm Or 1.8mm, 2.0mm |
| Conductive Film: | 188 μm | Connector: | FPC, Flexible Printed Circuit |
| Structure: | 4wires, 5 Wire, 8 Wire | Surface Hardness: | 3H |
| High Light: | FPC Resistive Touch Panel,2.4 inch Resistive Touch Panel,ITO 0.7mm resistive touch screen sensor |
||
A resistive touch screen panel is one in which the panel is coated with a thin metallic layer. This layer has properties which are both electrically conductive and resistive. The top layer has charge going from top to bottom and the second layer has charge going from side to side, with a thin air gap in between them. When touched by a human finger or an object the change in current is registered and sent to a controller to be processed. This type of touch screen is in general more affordable and resistive to the elements such as dust, wind and water. It also
offers superior handwriting recognition. The downside is they offer only 75% visual clarity and can easily be damaged by sharp objects. It is also not very sensitive, so you have to press harder and it does not support multi touch.
Application:
1. Light industrial
2. Home appliances
3. Portable sport devices
4. Access control terminals
5. Portable medical devices
6. Personal computer and office
| Parameter | Options & Notes |
| Screen Size(Diagonal inches) |
PCAP Capacitive touch panel 3"-86"
|
| Product Construction | GG / G1F / GFF / PG / FG |
| Integration | Tape Bonding / Optical Bonding ( OCA, OCF & LOCA ) |
| Cover Lens | |
| Cover Lens Thickness | 0.55mm-10mm |
| Cover Lens Material | CS Glass, Gorilla Glass,Heat Tempered, PET, PMMA,Borosilicate, etc. |
| Additional Options | Silk screening, logos, cut outs, colored glass, etc. |
| Touch Controller & Interface | |
| Controller Location | COB / COF |
| Controller Type | Silicon Works / EETI / Weida / Ilitek / Goodix / Customer Supplied |
| Interface | I2C, USB, RS232, UART |
| Operating System | Windows XP, 7-10, Linux, iOS, Android |
| Performance Options | 2-50 touch points, palm rejection, water rejection, gloved use, gestural controls, active stylus, etc. |
| Product Enhancements | |
| Optical | Anti-Glare / Anti-Reflection / Mirror Finish / Dead Front |
| Others | Anti-Fingerprint / Anti-Shatter Film / Hard Coat |
| EMI Resistance | Metal Mesh / Firmware Tuning / EMI Filters |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is an manufacturer/factory. We pecialize in memrbane switch for 26 years, touch panel for 10 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture touch panel for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay / capacitive or resistive touch panel samples without file?
A : Yes, we can clone membrane switch/ graphic overlay / touch panel according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : NO MOQ.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
