COB 4 Wire Resistive Touch Panel Screen 13.3 Inch Industrial Touch Solution

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: RTP007
Minimum Order Quantity: 1 piece
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Name: Industrial COB Resistive Touch Panel 13.3 Inch Industrial Touch Solution Application: Net TV, Internet Game Console, STB, ISDN Telephone, FAX Machine, LED Panel , Voice Recorder, Pager And Smart Phone.
Sizes: Customized Size, 7 10.1 12.1 12.3 15 15.6 17 18.5 19 21.5 27 32 43 55 Inch Structures: Glass+film+film,
Size: 13.1" Conductive Glass Thickness: ITO 0.7mm, 1.1mm
Connector: Flexible Circuit FPC Structure4wires,: 4-wire /5 Wire / 8 Wire Resistive Touch Optional
Products Status: Custom Made, OEM,ODM Keywords: Touch Screen Panel
Surface Hardness: ≥3H Touch Points: 10 Points
High Light:

COB Resistive Touch Panel

,

13.3 Inch Resistive Touch Panel

,

4 wire resistive touch screen

Industrial COB Resistive Touch Panel 13.3 inch Industrial Touch Solution


How Resistive Touchscreens Work


The resistive touchscreen has always been the most common type used in industrial electronics. This is mostly because they're cheaper to make and are easier to use in difficult environments.



The technology relies on resistance, meaning the pressure that's applied to the screen itself.



This type of touchscreen is created out of two very thin layers of material, separated by a thin gap. The top layer is typically some type of clear poly-carbonate material, while the bottom layer is made up of a rigid material. Manufacturers typically use PET film and glass for these layers.





Application:

1. Light industrial
2. Home appliances

3. Portable sport devices
4. Access control terminals
5. Portable medical devices
6. Personal computer and office



Parameter Options & Notes
Screen Size(Diagonal inches)

PCAP Capacitive touch panel 3"-86"


Resistive touch panel 4"-10.4"



Product Construction GG / G1F / GFF / PG / FG
Integration Tape Bonding / Optical Bonding ( OCA, OCF & LOCA )
Cover Lens
Cover Lens Thickness 0.55mm-10mm
Cover Lens Material CS Glass, Gorilla Glass,Heat Tempered, PET, PMMA,Borosilicate, etc.
Additional Options Silk screening, logos, cut outs, colored glass, etc.
Touch Controller & Interface
Controller Location COB / COF
Controller Type Silicon Works / EETI / Weida / Ilitek / Goodix / Customer Supplied
Interface I2C, USB, RS232, UART
Operating System Windows XP, 7-10, Linux, iOS,  Android
Performance Options 2-50 touch points, palm rejection, water rejection, gloved use, gestural controls, active stylus, etc.
Product Enhancements
Optical Anti-Glare / Anti-Reflection / Mirror Finish / Dead Front
Others Anti-Fingerprint / Anti-Shatter Film / Hard Coat
EMI Resistance Metal Mesh / Firmware Tuning / EMI Filters


FAQ:



Q1: Are you a factory or trade company?
A : Lunfeng is an manufacturer/factory. We pecialize in memrbane switch for 26 years, touch panel for 10 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture touch panel for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay / capacitive or resistive touch panel samples without file?
A : Yes, we can clone membrane switch/ graphic overlay / touch panel according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : NO MOQ.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

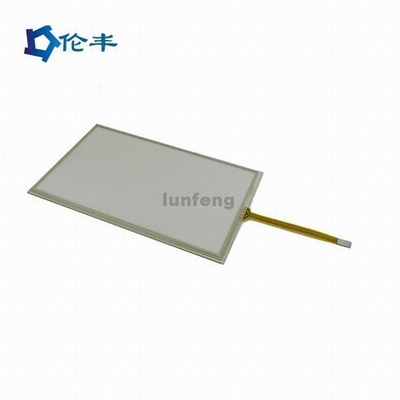

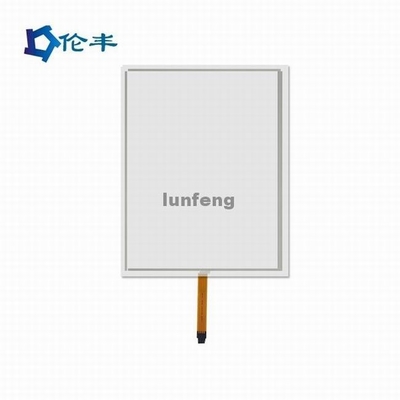

COB 4 Wire Resistive Touch Panel Screen 13.3 Inch Industrial Touch Solution 0COB 4 Wire Resistive Touch Panel Screen 13.3 Inch Industrial Touch Solution 1
