| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Lunfeng |
| Certification: | ISO9001:2015 |
| Model Number: | RTP002 |
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | First put into a polybag, then paked into a carton. According to clients' special requirements. |
| Delivery Time: | 7-25 working days, To be negotiated |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000 Piece/Pieces per Month |

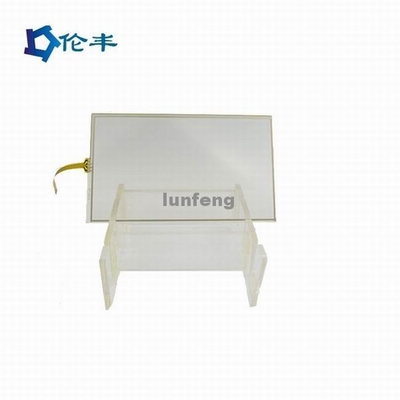

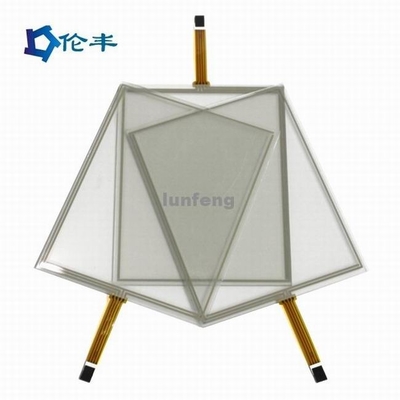

| Name: | 3.5 Inch Resistive Touch Panel 10 Touch Points | Application: | Electric Typewriter, Word Processor, Copier, Time Clock And Test Sticker Machine. |
|---|---|---|---|
| Sizes: | Customized Size, 7 10.1 12.1 12.3 15 15.6 17 18.5 19 21.5 27 32 43 55 Inch | Structures: | Film+ Glass |
| Size: | 2.4" | Conductive Glass Thickness: | ITO 0.7mm, 1.1mm Or 1.8mm, 2.0mm |
| Connector: | FPC, Flexible Printed Circuit | Structure: | 4wires, |
| High Light: | 3.5 inch resistive touch screen panel,10 resistive touch screen panel,FPC 4 wire touch screen |
||
For resistive touch screens the mechanical action of two layers of ITO are pressed together, making an electrical connection. For capacitive touch screens the methodology is basically taking advantage of the fact that the human body is a walking capacitor! When a human finger touches the capacitive touch screen, the capacitive levels are changed dramatically and can be registered.
Applications
OA Equipments:
Electric Typewriter, Word Processor, Copier, Time Clock and Test Sticker Machine.
Communication Equipments:
Net TV, Internet Game Console, STB, ISDN Telephone, FAX Machine, LED Panel , Voice Recorder, Pager and Smart Phone.
Household Appliances:
Portable LCD TV, Video Recorder, AV equipment and Remote Controller.
Entertainment Appliances:
Electric Piano, Palm Gamer and Language Learning Machine.
Application:
1. Light industrial
2. Home appliances
3. Portable sport devices
4. Access control terminals
5. Portable medical devices
6. Personal computer and office
| Parameter | Options & Notes |
| Screen Size(Diagonal inches) |
PCAP Capacitive touch panel 3"-86"
|
| Product Construction | GG / G1F / GFF / PG / FG |
| Integration | Tape Bonding / Optical Bonding ( OCA, OCF & LOCA ) |
| Cover Lens | |
| Cover Lens Thickness | 0.55mm-10mm |
| Cover Lens Material | CS Glass, Gorilla Glass,Heat Tempered, PET, PMMA,Borosilicate, etc. |
| Additional Options | Silk screening, logos, cut outs, colored glass, etc. |
| Touch Controller & Interface | |
| Controller Location | COB / COF |
| Controller Type | Silicon Works / EETI / Weida / Ilitek / Goodix / Customer Supplied |
| Interface | I2C, USB, RS232, UART |
| Operating System | Windows XP, 7-10, Linux, iOS, Android |
| Performance Options | 2-50 touch points, palm rejection, water rejection, gloved use, gestural controls, active stylus, etc. |
| Product Enhancements | |
| Optical | Anti-Glare / Anti-Reflection / Mirror Finish / Dead Front |
| Others | Anti-Fingerprint / Anti-Shatter Film / Hard Coat |
| EMI Resistance | Metal Mesh / Firmware Tuning / EMI Filters |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is an manufacturer/factory. We pecialize in memrbane switch for 26 years, touch panel for 10 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture touch panel for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay / capacitive or resistive touch panel samples without file?
A : Yes, we can clone membrane switch/ graphic overlay / touch panel according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : NO MOQ.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
