LCD Resistive Touch Panel ITO 1.1mm 7 Inch Capacitive Touch Screen Display

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: RTP005
Minimum Order Quantity: 1 piece
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Name: 7 Inch Resistive Touch Panel Touch Screen LCD Panel Application: Net TV, Internet Game Console, STB, ISDN Telephone, FAX Machine, LED Panel , Voice Recorder, Pager And Smart Phone.
Sizes: Customized Size, 7 10.1 12.1 12.3 15 15.6 17 18.5 19 21.5 27 32 43 55 Inch Structures: Film+ Glass, Glass + Glass
Size: 7" Conductive Glass Thickness: ITO 1.1mm
Connector: FPC Flexible Circuit Structure4wires,: 4-wire /5 Wire Resistive Touch Optional
Products Status: Customized Keywords: Touchscreen Panel
Surface Hardness: ≥3H Product Name: LCD Touch Screen Monitor
Touch Points: 10 Points
High Light:

ITO 1.1mm Resistive Touch Panel


LCD Resistive Touch Panel


7 inch capacitive touch screen display

7 inch Resistive Touch Panel Touch Screen LCD Panel

Benefits of resistive touch screens
● Good resistance and durability – but note that since the material used to build resistive touch screens are synthetic, their surface is more susceptible to wear or scratches (for example, in comparison to capacitive touch screens).

● Cost-effectiveness – a resistive touch screen is usually much less expensive than the other popular option on the market, a capacitive touch screen.

● Versatility – you can use resistive touch screens using your fingers (exposed or gloved), or a fine point of contact like a stylus. These touch screens have more sensors per inch than capacitive touch screens.

● Lower sensitivity – since a resistive touch screen is less sensitive to touch, it’s a great match for environments where accidental stimuli like liquid spills and splatters may cause the touch screen to react unintentionally. This is why resistive touch screens are broadly used in industrial contexts.

Disadvantages of resistive touch screens
● Low sensitivity – operating resistive touch screens with light touch might not be successful since they require greater physical force to trigger touch commands,

● Less clarity – the thick top layer of the screen offers less clarity for the display.



1. Light industrial
2. Home appliances

3. Portable sport devices
4. Access control terminals
5. Portable medical devices
6. Personal computer and office

Parameter Options & Notes
Screen Size(Diagonal inches)

PCAP Capacitive touch panel 3"-86"

Resistive touch panel 4"-10.4"


Product Construction GG / G1F / GFF / PG / FG
Integration Tape Bonding / Optical Bonding ( OCA, OCF & LOCA )
Cover Lens
Cover Lens Thickness 0.55mm-10mm
Cover Lens Material CS Glass, Gorilla Glass,Heat Tempered, PET, PMMA,Borosilicate, etc.
Additional Options Silk screening, logos, cut outs, colored glass, etc.
Touch Controller & Interface
Controller Location COB / COF
Controller Type Silicon Works / EETI / Weida / Ilitek / Goodix / Customer Supplied
Interface I2C, USB, RS232, UART
Operating System Windows XP, 7-10, Linux, iOS,  Android
Performance Options 2-50 touch points, palm rejection, water rejection, gloved use, gestural controls, active stylus, etc.
Product Enhancements
Optical Anti-Glare / Anti-Reflection / Mirror Finish / Dead Front
Others Anti-Fingerprint / Anti-Shatter Film / Hard Coat
EMI Resistance Metal Mesh / Firmware Tuning / EMI Filters



Q1: Are you a factory or trade company?
A : Lunfeng is an manufacturer/factory. We pecialize in memrbane switch for 26 years, touch panel for 10 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture touch panel for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay / capacitive or resistive touch panel samples without file?
A : Yes, we can clone membrane switch/ graphic overlay / touch panel according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

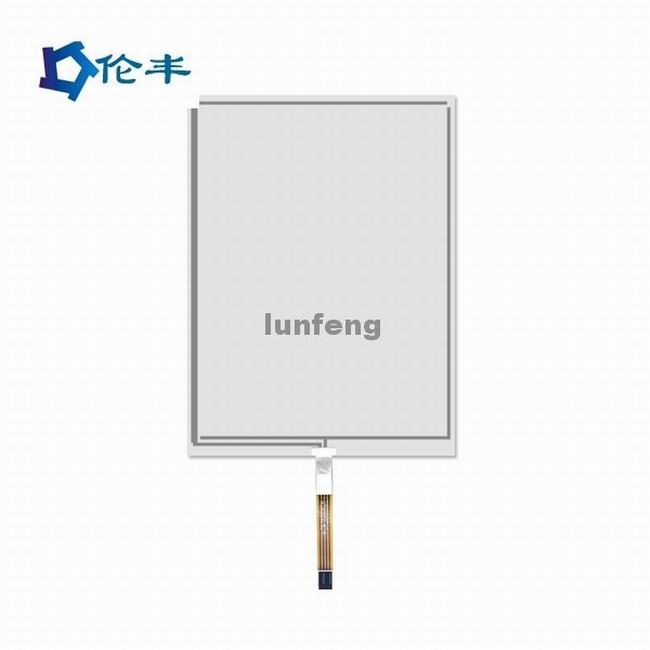

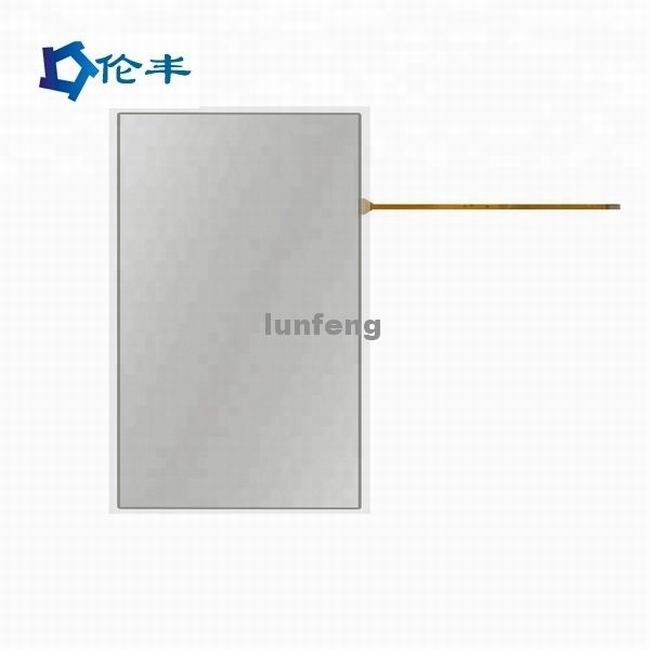

LCD Resistive Touch Panel ITO 1.1mm 7 Inch Capacitive Touch Screen Display 0LCD Resistive Touch Panel ITO 1.1mm 7 Inch Capacitive Touch Screen Display 1
