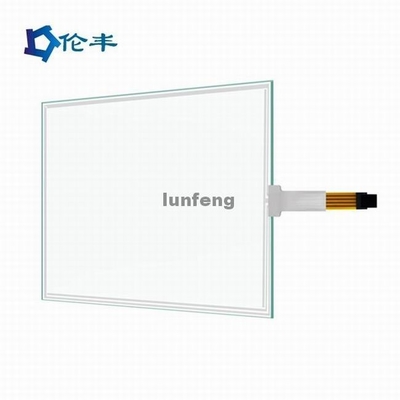

ITO 1.1mm Resistive Touch Panel 6.5 Inch FPC 5 Wire Resistive Touch Screen

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: RTP004
Minimum Order Quantity: 1 piece
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Name: 6.5 Inch Resistive Touch Panel Touchscreen Application: Electric Typewriter, Word Processor, Copier, Time Clock And Test Sticker Machine
Sizes: Customized Size, 7 10.1 12.1 12.3 15 15.6 17 18.5 19 21.5 27 32 43 55 Inch Structures: Film+ Glass, Glass + Glass
Size: 6.5" Conductive Glass Thickness: ITO 1.1mm
Connector: FPC Flexible Circuit Structure4wires,: 4-wire /5 Wire Resistive Touch Optional
Products Status: Stock Keywords: Touch Screen Panel Cheap Touch Screen
Surface Hardness: ≥3H
High Light:

ITO 1.1mm Resistive Touch Panel

,

6.5 inch Resistive Touch Panel

,

FPC 5 wire resistive touch screen

6.5 inch Resistive Touch Panel Touchscreen


Where are resistive touch screens used?


Resistive touch screens are very durable. That’s why they’re used primarily in manufacturing, ATMs, and kiosks, or medical devices. Note that in many industrial settings users of touch screens need to wear gloves when touching the screens. That’s why resistive touch screens are such a good match for this requirement – contrary to another popular technology – capacitive touch screens – they don’t require contact with exposed human skin or a stylus with capacitive capabilities to work.





Application:

1. Light industrial
2. Home appliances

3. Portable sport devices
4. Access control terminals
5. Portable medical devices
6. Personal computer and office



Parameter Options & Notes
Screen Size(Diagonal inches)

PCAP Capacitive touch panel 3"-86"


Resistive touch panel 4"-10.4"



Product Construction GG / G1F / GFF / PG / FG
Integration Tape Bonding / Optical Bonding ( OCA, OCF & LOCA )
Cover Lens
Cover Lens Thickness 0.55mm-10mm
Cover Lens Material CS Glass, Gorilla Glass,Heat Tempered, PET, PMMA,Borosilicate, etc.
Additional Options Silk screening, logos, cut outs, colored glass, etc.
Touch Controller & Interface
Controller Location COB / COF
Controller Type Silicon Works / EETI / Weida / Ilitek / Goodix / Customer Supplied
Interface I2C, USB, RS232, UART
Operating System Windows XP, 7-10, Linux, iOS,  Android
Performance Options 2-50 touch points, palm rejection, water rejection, gloved use, gestural controls, active stylus, etc.
Product Enhancements
Optical Anti-Glare / Anti-Reflection / Mirror Finish / Dead Front
Others Anti-Fingerprint / Anti-Shatter Film / Hard Coat
EMI Resistance Metal Mesh / Firmware Tuning / EMI Filters


FAQ:



Q1: Are you a factory or trade company?
A : Lunfeng is an manufacturer/factory. We pecialize in memrbane switch for 26 years, touch panel for 10 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture touch panel for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay / capacitive or resistive touch panel samples without file?
A : Yes, we can clone membrane switch/ graphic overlay / touch panel according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : NO MOQ.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...


ITO 1.1mm Resistive Touch Panel 6.5 Inch FPC 5 Wire Resistive Touch Screen 0ITO 1.1mm Resistive Touch Panel 6.5 Inch FPC 5 Wire Resistive Touch Screen 1
