| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Lunfeng |
| Certification: | ISO9001:2015 |
| Model Number: | RTP010 |
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | First put into a polybag, then paked into a carton. According to clients' special requirements. |
| Delivery Time: | 7-25 working days, To be negotiated |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000 Piece/Pieces per Month |

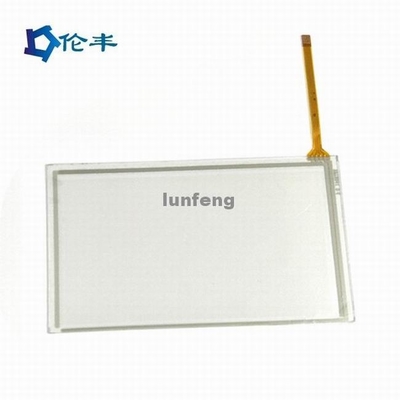

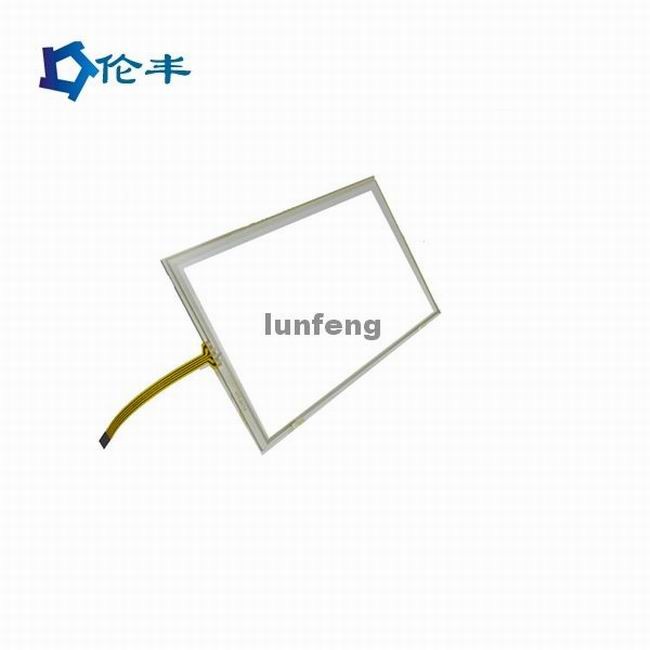

| Name: | Custom Size Touch Screen 4 Wire Resistive Touch Panel 7 Inch Resistive Touch Panel | Application: | Net TV, Internet Game Console, STB, ISDN Telephone, FAX Machine, LED Panel , Voice Recorder, Pager And Smart Phone. |
|---|---|---|---|
| Sizes: | Customized Size, 7 10.1 12.1 12.3 15 15.6 17 18.5 19 21.5 27 32 43 55 Inch | Structures: | Glass+film+film, Glass+ Glass |
| Size: | 7" | Conductive Glass Thickness: | ITO 0.7mm, 1.1mm |
| Connector: | FPC | Structure4wires,: | 4-wire Resistive Touch Optional |
| Products Status: | OEM | Surface Hardness: | ≥3H |
| High Light: | FPC Connector Resistive Touch Panel,4 Wire Resistive Touch Panel,GFF 7 inch resistive touch screen |
||
What are resistive touchscreens?
Resistive screens are made up of two conductive and transparent layers: a flexible top panel (typically made out of polyester or PET) and a rigid bottom panel. An adhesive spacer lies between the two layers. When pressure is applied to the top panel, it makes contact with the panel below. This contact interrupts a continuous current flowing between the panels, where a grid of horizontal and vertical lines allows a controller chip to know what was touched and gauge input accordingly. Since the input is calculated through physical pressure causing the two layers to make contact, resistive touchscreens work well for any gloved or stylus usage.
Types of resistive touchscreens
4-wire resistive touchscreen
5-wire resistive touchscreen
8-wire resistive touchscreen
Application:
1. Light industrial
2. Home appliances
3. Portable sport devices
4. Access control terminals
5. Portable medical devices
6. Personal computer and office
| Parameter | Options & Notes |
| Screen Size(Diagonal inches) |
PCAP Capacitive touch panel 3"-86"
|
| Product Construction | GG / G1F / GFF / PG / FG |
| Integration | Tape Bonding / Optical Bonding ( OCA, OCF & LOCA ) |
| Cover Lens | |
| Cover Lens Thickness | 0.55mm-10mm |
| Cover Lens Material | CS Glass, Gorilla Glass,Heat Tempered, PET, PMMA,Borosilicate, etc. |
| Additional Options | Silk screening, logos, cut outs, colored glass, etc. |
| Touch Controller & Interface | |
| Controller Location | COB / COF |
| Controller Type | Silicon Works / EETI / Weida / Ilitek / Goodix / Customer Supplied |
| Interface | I2C, USB, RS232, UART |
| Operating System | Windows XP, 7-10, Linux, iOS, Android |
| Performance Options | 2-50 touch points, palm rejection, water rejection, gloved use, gestural controls, active stylus, etc. |
| Product Enhancements | |
| Optical | Anti-Glare / Anti-Reflection / Mirror Finish / Dead Front |
| Others | Anti-Fingerprint / Anti-Shatter Film / Hard Coat |
| EMI Resistance | Metal Mesh / Firmware Tuning / EMI Filters |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is an manufacturer/factory. We pecialize in memrbane switch for 26 years, touch panel for 10 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture touch panel for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay / capacitive or resistive touch panel samples without file?
A : Yes, we can clone membrane switch/ graphic overlay / touch panel according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : NO MOQ.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
