Membrane Switch Panel With FFC Circuit

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: LFMS-394
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Product Name: Custom Membrane Switches Panel Sticker With Single Button And FFC Circuit ColorS: Pantone RAL Color, Yellow, Black
Rear Adhesive: 3M468, 3M467, 3M9448, 3M9080 Feature: Metal Domes, Matte Surface, FPC Circuit
Switch Type: Membrane Switch Overlay Connector: 1.0mm Female Connector
High Light:

Single Button Membrane Switches Panel

,

FFC Circuit Membrane Switches Panel

,

FPC Membrane Switch Panel

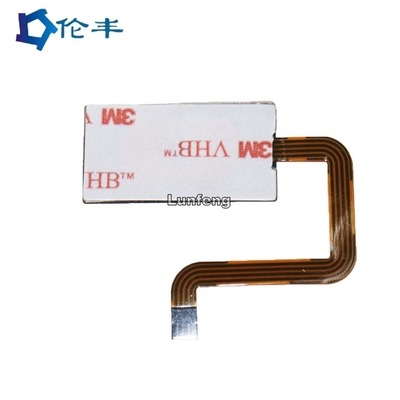

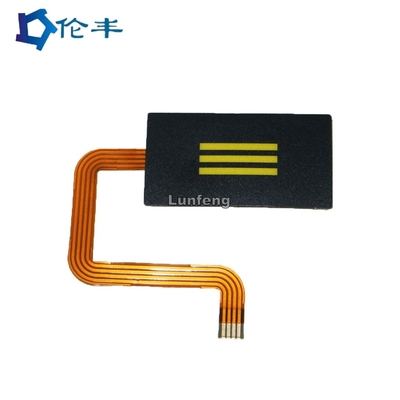

Custom Membrane Switches Panel Sticker with single button and FFC circuit





Membrane Switches custom made to your specific needs and desires. We offer a variety of substrates and special features (Options including surface texture materials, embossing, backlighting (Fiber Optic or Electroluminescent), Embedded LEDs, ESD shielding) can be incorporated to accommodate your branding efforts.


Custom Membrane Switches

Membrane switches can be tactile or non-tactile, depending on the design. Tactile switches provide a physical “click” when the user pushes it. Non-tactile switches have longer lives, but lack physical feedback to the user.



Custom Membrane Switches

Membrane Switch Panels
Membrane Keypads
Membrane Switch Overlays
Keypad Switches
Membrane Switch Nameplates
Tactile Membrane Switches
Non-tactile Membrane Switches
Membrane Switch Graphic Overlays
Full Color Printed Membrane Switches



Applications:

* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system






Items Silver Printed Circuit Copper Etched FPC Circuit
Material PET (Polyester) Copper
Conductor Printed silver Copper
Contact Fingers Silver and Carbon Gold plated
Contact Buttons Pads Silver Gold plated
Life & Reliability normal good
Stability normal good
Resistance low Very low
Cost low high
Lead Time 2-3 days 7-10 days
Pitch 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm 0.5mm, 1.0mm, 1.27mm, 2.54mm







1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180





2.Mechanical Properties



Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm





3.Environmental and Storage Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours





FAQ:



Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
