Tactile Polydone PET Membrane Switch Keypad Overlay Metal Dome Medical Equipment

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: PDMS916001
Minimum Order Quantity: 1 piece
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Name: Tactile Metal Dome Membrane Switch For Medical Equipment Application: Medical Equipment
Keypad Button Material: Rubber, PET, Metal, Polyester, PET/PC/PMMA/PE/PVC Color: Pantone And RAL
Material: PET PC PVC, Polyester, Polycarbonate, PET/PC/PVC, SUS304 Rear Adhesive: 3M467, 3M468, 3M9448, 3M9080...
Printing: Screen Printing Size: Customized Size
Connector: Male, Femail, ZIF, Housing Connector Key Option: Flat, Embossing
Surface Finish: Glossy, Matte Feature: Water-proof, Shielding, Backlight, Durable, Long Service Life
High Light:

Tactile PET Membrane Switch

,

Polydone PET Membrane Switch

,

overlay Membrane Switch keypad

Product name:

Custom made Tactile Polydone Membrane Switch keypad membrane overlay


Specification

> Graphic overlay: F150

> Rear adhesive: 3M9448

> Feature: Tactile & ESD


> Certification: ISO9001:2015 /ROHS/SG

> Payment terms: T/T,West Union

> Shipping by: UPS/ Fedex /DHL /TNT or Other Ways Specified

> Delivery time: 7~25 Working Days



1.Electrical Properties
Membrane Switch
Electrical Level:
35V(DC), 100mA,1W
Contact Resistance:
10Ω~500 Ω
Insulation Resistance:
100MΩ/100V
Dielectrics Voltage-resistance:
250VRms(50~60Hz 1min)
Chattering Time:
≤ 5ms
Life Time:
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
Tail Folding:
R>1,180


2.Mechanical Properties

Operating Force:
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)
Switch Stroke:
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm


3.Environmental and Storage Conditions

Operation Temperature:
-40°C ~ +80°C
Storage Temperature:
-40°C ~ +80°C
Humidity:
40°C, 90%~95%, 240 hours

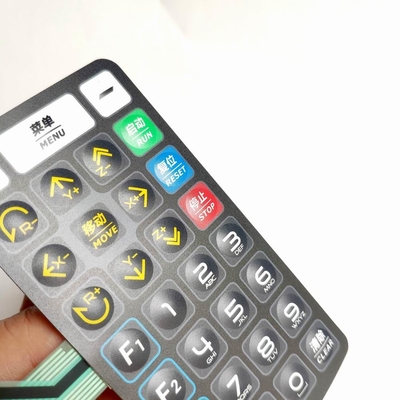

Tactile Polydone PET Membrane Switch Keypad Overlay Metal Dome Medical Equipment 0

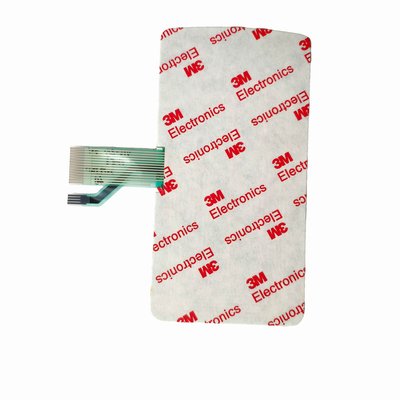

Tactile Polydone PET Membrane Switch Keypad Overlay Metal Dome Medical Equipment 1

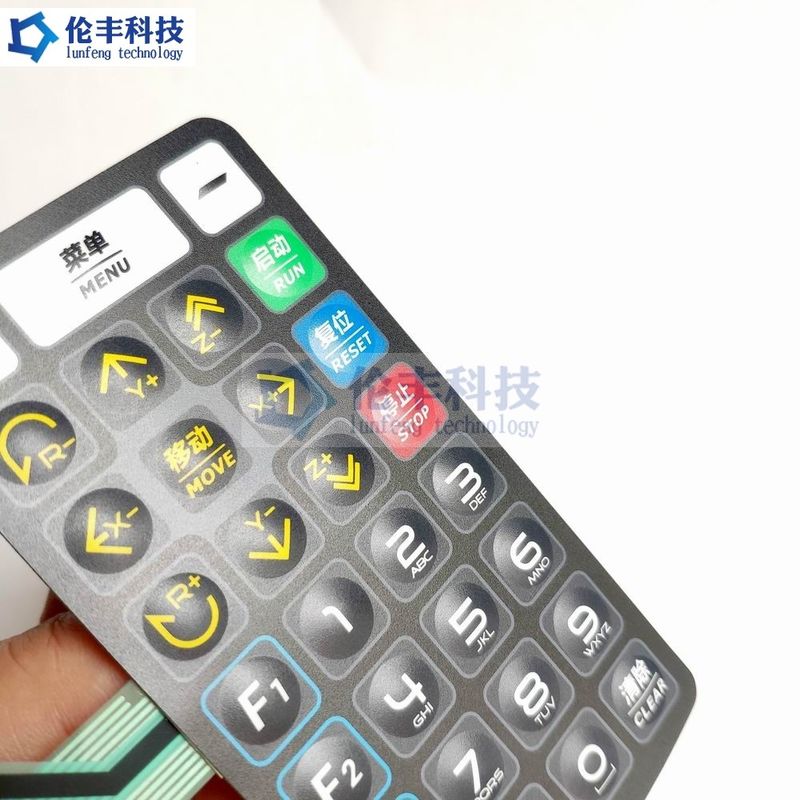

Tactile Polydone PET Membrane Switch Keypad Overlay Metal Dome Medical Equipment 2







About US:



Shenzhen Lunfeng Technology Co., Ltd. (“Lunfeng”) was estimated in 1995, mainly engaged in production, sale and service of all kinds of membrane switches, membrane overlay, PC, PVC, PET and aluminum plates, acrylic lenses, metal nameplate, touch screens, crystal epoxy, label papers and hot press/injection molding thermosetting composite materials ( BMC / SMC).

In strict compliance with ISO9001:2015 standard in production, we established a complete quality management system, ensuring strictness and close linking from raw material procurement to delivery. We introduced advanced computer testing equipment to ensure stable and reliable product quality which makes us taking the lead in the trade of Shenzhen.

Our company has over 200 employees for management, sale, engineering and production and a plant area of over 3,000 square meters. Our products sell well in America, Canada, the United Kingdom, France, Germany, Italy, Australia, Japan, Singapore, etc. Haiwen people know that only by high-quality products and perfect service can we win customer's trust and remain invincible in the competitive market.

We always adhere to the service tenet of "Quality Assurance, Timely Delivery, Reasonable Price, Considerate Service". We believe that with the efforts and hard work of our staff, we are bound to create a more brilliant future. We sincerely hope to cooperate with all customers for a bright future!

Welcome to contact us !

-------------------------------------------------------------------------------------------------------
Shenzhen Lunfeng Techonology Co., Ltd
Ms Cindy: +86-185 8842 9302, sales@lunfeng.cn
Ms Elva: +86-136 6269 7476, elva@lunfeng.cn (skype: elva_wong2), QQ: 1294012719
Tel: 0086-0755-27364719
Fax:0086-0755-27304721

Tactile Polydone PET Membrane Switch Keypad Overlay Metal Dome Medical Equipment 3
Tactile Polydone PET Membrane Switch Keypad Overlay Metal Dome Medical Equipment 4
Tactile Polydone PET Membrane Switch Keypad Overlay Metal Dome Medical Equipment 5


Tactile Polydone PET Membrane Switch Keypad Overlay Metal Dome Medical Equipment 6

Tactile Polydone PET Membrane Switch Keypad Overlay Metal Dome Medical Equipment 7
