|Product:||Black LCD Window LED Tactile Membrane Switch Keypad, Metal Dome Tactile Switch||Material:||PET, Polyester(PET), 0.15mm MATTE PET|
|Rear Adhesive:||3M468 3M Adhesive||ColorS:||Pantone/ RAL Color, White, Black, Red, Green|
|Feature:||Matte Surface, Silver Circuit Cables||Connector:||2.54 Mm Pitch, Black Plastic Housing|
|Key:||Tactile Keys , Metal Domes,||LED:||Color Leds, NO LGF Film|
|Window:||Transparent Black LCD Window, No Punch Holes|
Pantone Membrane Switch Keypad,
LCD Window Membrane Switch Keypad,
RAL Metal Dome Tactile Switch

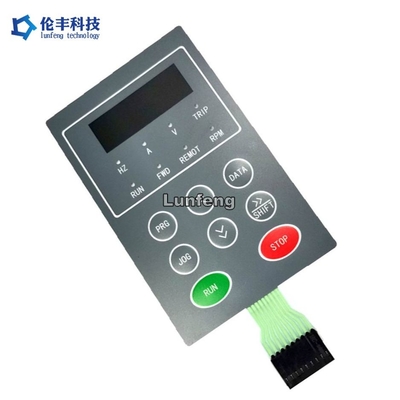

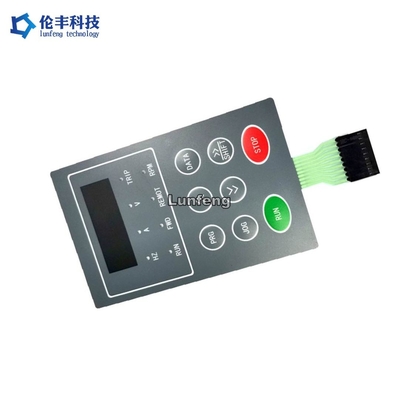

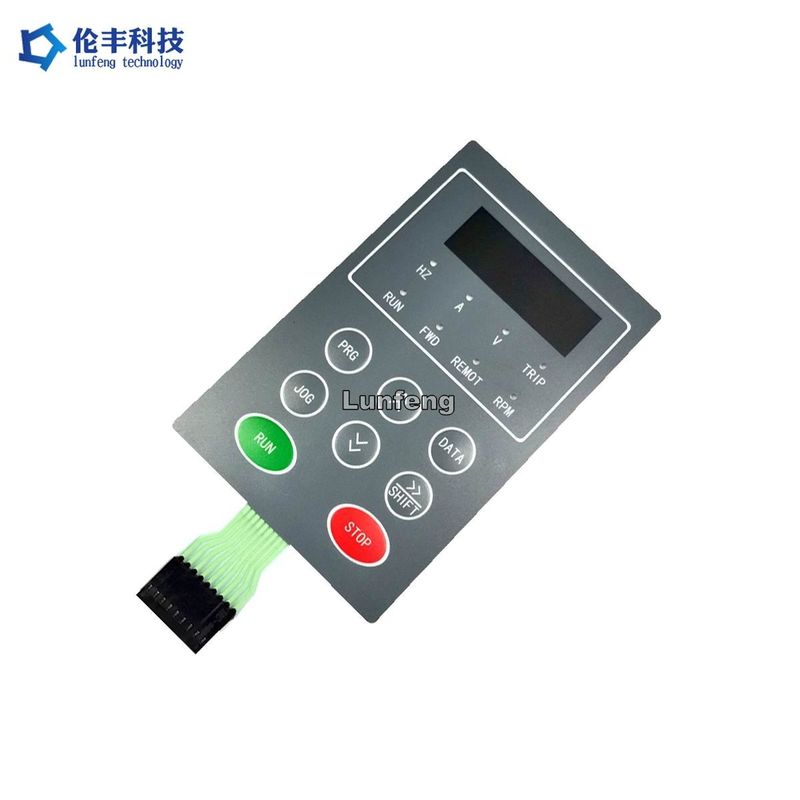

Black LCD Window LED Tactile Membrane Switch Keypad, Metal Dome Tactile Switch
LUNFENG membrane switches are produced to the highest standard by our skilled operators and in compliance with ISO 9001 Approval, which ensures your membranes are fully functional and to the highest standard. All membrane switches undergo 100% final test inspection to ensure error-free operation and that the buttons last as long as the machine they control.
What Is A Membrane Switch?
Membrane switches are generally made from five different layers. This includes membrane, graphic, tactile, rigid and static layers. The first layer contains the graphic interface for the user to control the machine. It can also include a flexible circuit for less expensive alternatives. Another layer will contain the printed circuit which allows a signal to be transmitted. The ink that is used for the printing on the circuit is generally made up of avariety of metals. This helps for the signal to be conductive for turning on and off. Membrane switches allow for communication to take place in electronic devices. Membrane switches are a piece of equipment that can be highly sophisticated or rather simple by design.
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm
0.5mm, 1.0mm,1.27mm, 2.54mm
|1. Electrical Properties||Membrane Switch|
|Electrical Level:||35V(DC), 100mA,1W|
|Contact Resistance:||10Ω~500 Ω|
|Dielectrics Voltage-resistance:||250VRms(50~60Hz 1min)|
|Chattering Time:||≤ 5ms|
|Life Time:||Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000|
|2. Mechanical Properties|
|Operating Force:||Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)|
|Switch Stroke:||Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm|
|3. Environmental and Storage Conditions|
|Operation Temperature:||-40°C ~ +80°C|
|Storage Temperature:||-40°C ~ +80°C|
|Humidity:||40°C, 90%~95%, 240 hours|
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
