| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Brand Name: | Lunfeng/Customer's brand |
| Certification: | ISO9001:2015, SMETA 4P |
| Model Number: | LFZDX098 |
| Minimum Order Quantity: | 1 piece |
| Price: | depending on the design |
| Packaging Details: | PE bag/foam/carton, as customer's request |
| Delivery Time: | normally 2-4 weeks, can be discussed |
| Payment Terms: | TT/telegram transfer |
| Supply Ability: | 500000 Piece/Pieces per Month |
| Material: | PET, Polyester(PET), 0.15mm MATTE PET | Rear Adhesive: | 3M468 3M467 3M Adhesive |
|---|---|---|---|
| ColorS: | Pantone/ RAL Color, Black Yellow | Feature: | Matte Surface, FPC Circuit Cables |
| Connector: | 1.0 Mm Pitch, ZIF End With Stifferner | Key: | Tactile Keys , Metal Domes, |
| LED: | Color Leds, NO LGF Film | Window: | NO Transparent LCD Window, No Punch Holes |
| High Light: | MATTE PET Membrane Switch Keypad,ZIF End PET Membrane Switch,LED PET Membrane Switch |
||

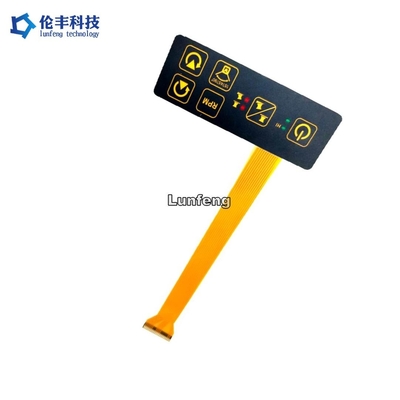

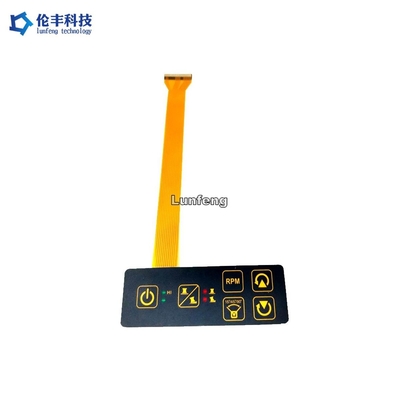

Red Green LED Tactile Membrane Switch Keypad, Switch Type Membrane FPC Circuit
LUNFENG membrane switches are produced to the highest standard by our skilled operators and in compliance with ISO 9001 Approval, which ensures your membranes are fully functional and to the highest standard. All membrane switches undergo 100% final test inspection to ensure error-free operation and that the buttons last as long as the machine they control.
An optional second circuit or PCB layer contains additional circuits required for membrane switching applications. This layer usually includes the bent cable or interface pins required for integrated thin-film switches.
Membrane Switch is an operating system that integrates key functions, indicating elements and instrument panels. It consists of four parts: panel, upper circuit, isolation layer and lower circuit. When the membrane switch is pressed, the contacts of the upper circuit are deformed downward, and are in contact with the pole plate of the lower circuit. After the finger is released, the contacts of the upper circuit bounce back, the circuit is disconnected, and the circuit triggers a signal.The membrane switch has strict structure, beautiful appearance and good sealing performance.
We are a Membrane Switches manufacturer engaged in Graphic Overlay,Membrane Panels, Soft Circuits, Silicone Rubber Keyboard, LED , LGF Silicone Rubber Keypad,. All kinds of customization, welcome to come to consult.
Applications:
Our Advantage:
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch |
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm |
0.5mm, 1.0mm,1.27mm, 2.54mm |
| 1. Electrical Properties | Membrane Switch | ||
| Electrical Level: | 35V(DC), 100mA,1W | ||
| Contact Resistance: | 10Ω~500 Ω | ||
| Insulation Resistance: | 100MΩ/100V | ||
| Dielectrics Voltage-resistance: | 250VRms(50~60Hz 1min) | ||
| Chattering Time: | ≤ 5ms | ||
| Life Time: | Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 | ||
| Tail Folding: | R>1,180 | ||
| 2. Mechanical Properties | |||
| Operating Force: | Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) | ||
| Switch Stroke: | Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm | ||
| 3. Environmental and Storage Conditions | |||
| Operation Temperature: | -40°C ~ +80°C | ||
| Storage Temperature: | -40°C ~ +80°C | ||
| Humidity: | 40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
