|Place of Origin:||Shenzhen, China|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||First put into a polybag, then paked into a carton. According to clients' special requirements.|
|Delivery Time:||7-25 working days, To be negotiated|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||500000 Piece/Pieces per Month|
|Material:||PET, Polyester(PET), 0.15mm MATTE PET||Rear Adhesive:||3M468 3M Adhesive|
|ColorS:||Pantone/ RAL Color, White, Black||Feature:||Matte Surface, FPC Circuit Cables|
|Connector:||1.0 Mm Pitch, Black Plastic Housing||Key:||NON-tactile Keys , NO Metal Domes,|
|LED:||No Color Leds, NO LGF Film||Window:||Big Transparent LCD Window, No Punch Holes|

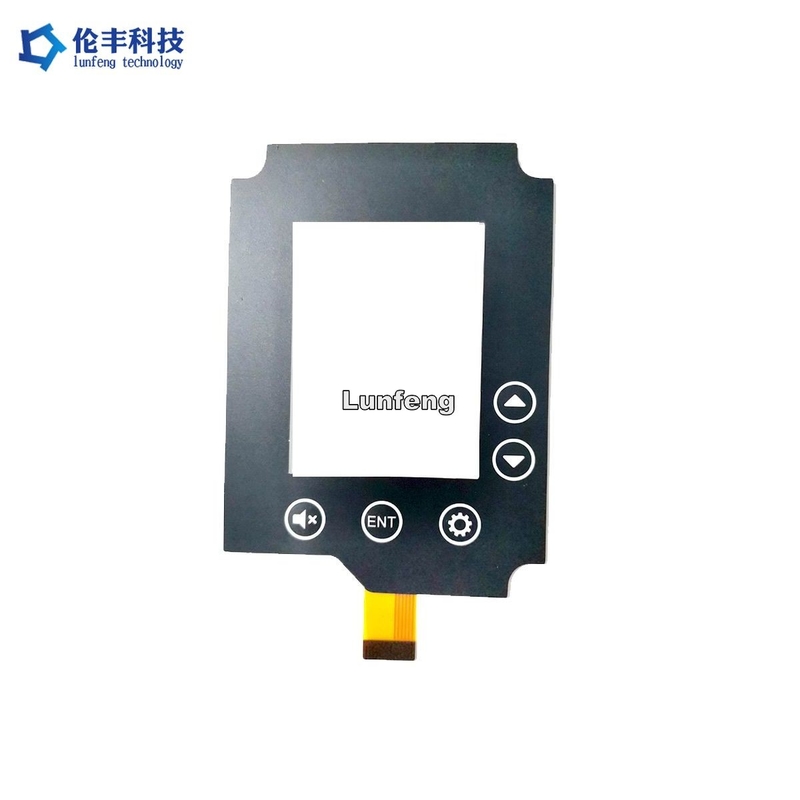

Pantone Color Membrane Switch Keypad,
0.15mm MATTE PET Membrane Switch,
Matte Membrane Keyboard Switch

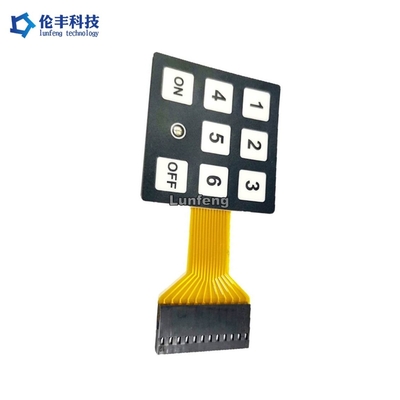

Matte FPC Circuit Membrane Switch Keypad, Membrane Keyboard Switch
LUNFENG membrane switches are produced to the highest standard by our skilled operators and in compliance with ISO 9001 Approval, which ensures your membranes are fully functional and to the highest standard. All membrane switches undergo 100% final test inspection to ensure error-free operation and that the buttons last as long as the machine they control.
We produce membranes using the same techniques we use on our durable overlays, and with sub-surface printing the membrane will endure even the harshest treatment and cleaning.
Each membrane can be produced to a specific design and layout providing greater flexibility in size, format, materials and finishes. Combined with a range of adhesives we can ensure it easily adheres to your product.
In many applications we emboss or hydroform the keys of a switch to meet customer requirements. ‘Pillow Embossing’, ‘Dome Emboss’, ‘Rail Embossing’ or ‘Multi-Level Emboss’ may be used depending on the finish the end membrane requires.
Tactile & Non-Tactile
The keys can be produced with either a tactile feedback which confirms activation when pressed, or with a non-tactile format for a completely flat finish for easy cleaning and maximum durability.
The membrane switch circuits can be produced in two formats, a common bus layout or using a matrix style format.
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm
0.5mm, 1.0mm,1.27mm, 2.54mm
|1. Electrical Properties||Membrane Switch|
|Electrical Level:||35V(DC), 100mA,1W|
|Contact Resistance:||10Ω~500 Ω|
|Dielectrics Voltage-resistance:||250VRms(50~60Hz 1min)|
|Chattering Time:||≤ 5ms|
|Life Time:||Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000|
|2. Mechanical Properties|
|Operating Force:||Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)|
|Switch Stroke:||Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm|
|3. Environmental and Storage Conditions|
|Operation Temperature:||-40°C ~ +80°C|
|Storage Temperature:||-40°C ~ +80°C|
|Humidity:||40°C, 90%~95%, 240 hours|
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
