|Place of Origin:||Shenzhen, China|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||First put into a polybag, then paked into a carton. According to clients' special requirements.|
|Delivery Time:||7-25 working days, To be negotiated|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||500000 Piece/Pieces per Month|
|Material:||PET, Polyester(PET), 0.15mm PET||Rear Adhesive:||3M467|
|ColorS:||Pantone/ RAL Color, Silver White, Black, Yellow, BLUE, Red||Feature:||Matte Surface, Silver Circuit Cables|
|Connector:||2.54 Mm Pitch, Black Plastic Housing Connector||Key:||Tactile Keys Metal Domes,|
|LED:||No Color Leds, NO LGF Film||Window:||Transparent LCD Window, No Punch Holes|
PET 0.15mm Membrane Switch Keypad,
3M467 PET Membrane Switch,
Circuit Cables PET Membrane Switch

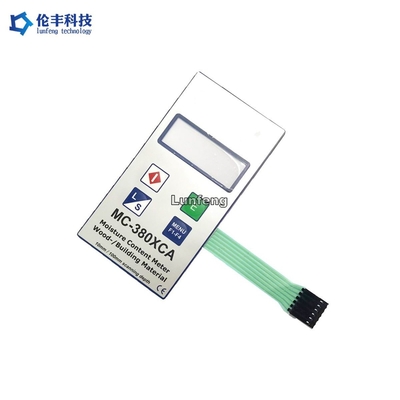

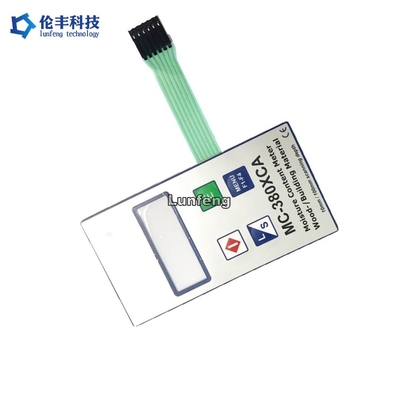

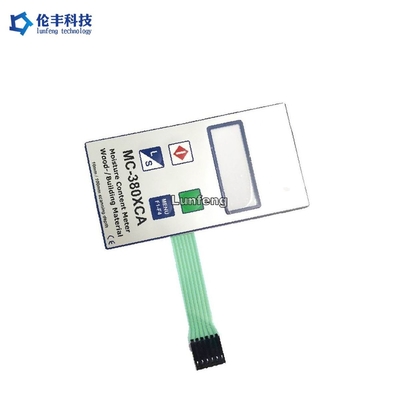

Custom Membrane Switch Keypad, Membrane Switch And Panel Moisture Content Meter
Custom membrane switches
The main advantage of a membrane switch (aside from its durability) is the incredible range of options available to personalize your interface. No matter what you have in mind, our experts can design a keypad that will offer the best possible experience for your users.
When designing your custom membrane switch panel, here are some things to consider:
he desired quantity
The type of connector required
The number of keys and their purpose
The addition of LEDs or another lighting source
The need for visual feedback
The graphic elements to include
The style of your graphic overlay
Questions to ask when designing the perfect custom membrane switch
Where will it be used?
Who will be using your membrane keypad?
What type of user experience do you want to provide?
What are your desired dimensions?
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm
0.5mm, 1.0mm,1.27mm, 2.54mm
|1. Electrical Properties||Membrane Switch|
|Electrical Level:||35V(DC), 100mA,1W|
|Contact Resistance:||10Ω~500 Ω|
|Dielectrics Voltage-resistance:||250VRms(50~60Hz 1min)|
|Chattering Time:||≤ 5ms|
|Life Time:||Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000|
|2. Mechanical Properties|
|Operating Force:||Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)|
|Switch Stroke:||Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm|
|3. Environmental and Storage Conditions|
|Operation Temperature:||-40°C ~ +80°C|
|Storage Temperature:||-40°C ~ +80°C|
|Humidity:||40°C, 90%~95%, 240 hours|
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
