|Place of Origin:||Shenzhen, China|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||First put into a polybag, then paked into a carton. According to clients' special requirements.|
|Delivery Time:||7-25 working days, To be negotiated|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||500000 Piece/Pieces per Month|
|Product:||Polyester Membrane Switch Keypad, Membrane Key Pad Two Circuits ZIF Connector||Material:||PET, Polyester(PET), 0.188mm PET|
|Rear Adhesive:||3M468||ColorS:||Pantone/ RAL Color, White, Black, Yellow, BLUE, Purple|
|Feature:||Glossy Surface, Silver Circuit Cables||Connector:||2.54 Mm Pitch, ZIF Housing Connector|
|Key:||Tactile Keys Metal Domes,||LED:||Color Leds, NO LGF Film|
|Window:||Transparent LCD Window, No Punch Holes|
Pantone Colour Membrane Switch Keypad,
3M468 Membrane Key Pad,
RAL Color Membrane Key Pad

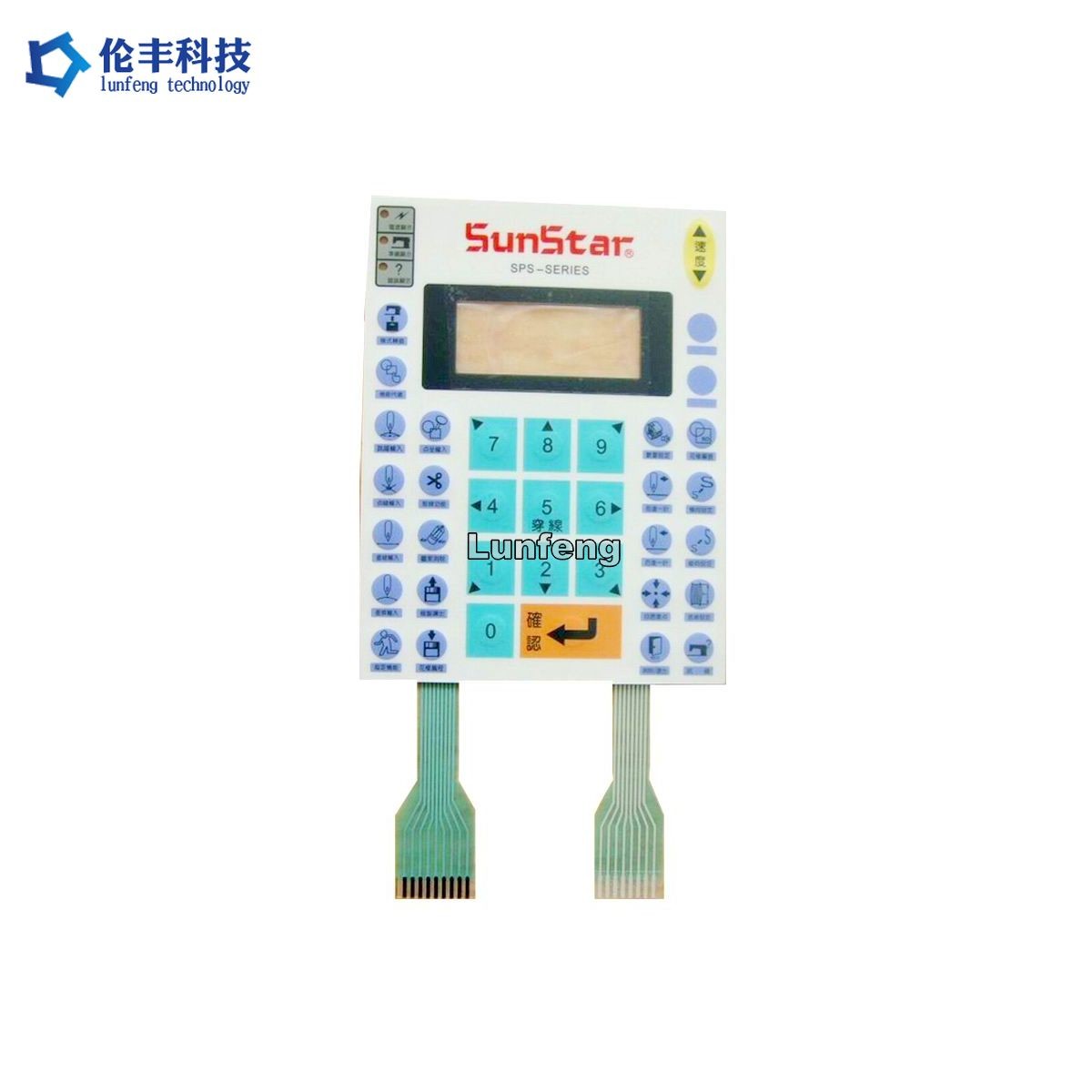

Polyester Membrane Switch Keypad, Membrane Key Pad Two Circuits ZIF Connector
There are two waterproof structures. The waterproof structure is generally designed as a back-shaped embedded structure. One structure is made of the same material and divided into two parts to make a finished product, and the circuit part is embedded in the panel part to form a product. This structure is more commonly used, and waterproof glue is used for each layer of glue; the other structure is to use materials with a thickness of upper and lower circuits and isolation layers and make the outer frame structure of the Membrane Switch with the panel, and the circuit part is embedded inside. into a whole.
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm
0.5mm, 1.0mm,1.27mm, 2.54mm
|1. Electrical Properties||Membrane Switch|
|Electrical Level:||35V(DC), 100mA,1W|
|Contact Resistance:||10Ω~500 Ω|
|Dielectrics Voltage-resistance:||250VRms(50~60Hz 1min)|
|Chattering Time:||≤ 5ms|
|Life Time:||Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000|
|2. Mechanical Properties|
|Operating Force:||Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)|
|Switch Stroke:||Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm|
|3. Environmental and Storage Conditions|
|Operation Temperature:||-40°C ~ +80°C|
|Storage Temperature:||-40°C ~ +80°C|
|Humidity:||40°C, 90%~95%, 240 hours|
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
