Glossy Surface Flat Buttons PET Membrane Switch Keypad 3M467

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: MDMS-739
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Product Name: Customized Design PET Membrane Switch With Flat Buttons Glossy Surface Use On: Industrial Control
Color: Pantone Material: PET PC PVC
Rear Adhesive: 3M467, 3M468 Printing Color: Screen Printing, Blue, White
Size Shape: Round Shape, Customized Size Connector: Housing Connector
High Light:

glossy surface PET Membrane Switch

,

flat buttons PET Membrane Switch

,

3M467 Membrane Switch keypad

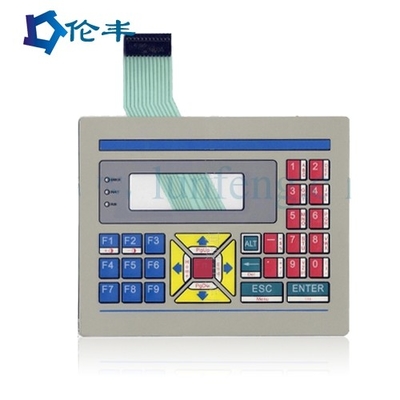

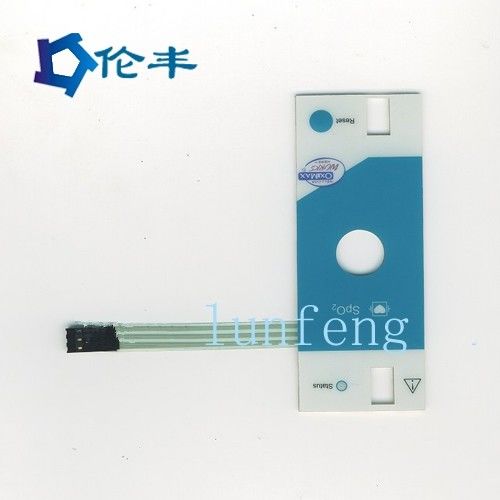

Customized design PET Membrane Switch with flat buttons glossy surface





What is a “Membrane Switch”?

A membrane switch is a printed electronic circuit that uses pressure to open and close a circuit. The membrane switch circuitry is most often screen printed using conductive inks, which are typically made of silver, carbon, and/or graphite.





Membrane Switch Technical Information

  1. Graphic Overlay – Polyester is usually the material of choice due to its superior chemical resistance and flex life compared to polycarbonate. Pannam can either digitally print, screen-print, or employ a combination of both methods to ensure you get the right colors, textures and finishes your design requires.

  2. Overlay Adhesive – This adhesive layer bonds the graphic overlay to the top circuit layer, and is typically an acrylic adhesive.

  3. Top Circuit Layer – This is a 0.005″ – 0.007″ heat stabilized polyester printed with silver-filled electrically conductive inks and also dielectric inks.

  4. Circuit Spacer – This layer separates the top circuit from the bottom circuit so the switch remains normally open until the keypad is pressed. The circuit spacer is a polyester spacer with adhesive on both sides.

  5. Lower Circuit Layer – This is a 0.005″ – 0.007″ heat stabilized polyester printed with silver-filled electrically conductive inks and also dielectric inks. This layer terminates as a flexible tail that serves as the interconnect to controller PCBs or other electronics.

  6. Rigid Support Layer – This optional layer can add structural integrity to the membrane switch assembly.





Specification

> Graphic overlay: Autotex PET F150
> Rear adhesive: 3M468

> Matte surface,  LEDs, embossed button, metal dome, punched holes







Part Ordinary Material
Graphic Overlay    Finish Specification
 PC  Gloss 0.175/.25/.35/.5 mm thickness
 Matt 0.175/.25/.35/.5 mm thickness
 PET  Fine Texture 0.15/.20 mm thickness
 Valet Texture 0.15/.20 mm thickness
 Gloss with Hard Coat 0.18 mm thickness
Rear Adhesive  Paper Double-sided Tape   0.10 mm thickness




1.Electrical Properties Membrane Switch
Electrical Level: 35V(DC), 100mA,1W
Contact Resistance: 10Ω~500 Ω
Insulation Resistance: 100MΩ/100V
Dielectrics Voltage-resistance: 250VRms(50~60Hz 1min)
Chattering Time: ≤ 5ms
Life Time: Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
Tail Folding: R>1,180

2.Mechanical Properties
Operating Force: Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)
Switch Stroke: Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm

3.Environmental and Storage Conditions
Operation Temperature: -40°C ~ +80°C
Storage Temperature: -40°C ~ +80°C
Humidity:

40°C, 90%~95%, 240 hours







FAQ:



Q1: Are you a factory or trade company?
A :  Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay   for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
      2. If you have your own forwarder, we can cooperate with them.

Q6 :  How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch,  10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
