Metal Dome Membrane Graphic Overlay Shielding Circuit PET Matte Front Panel Overlay

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: MSO017
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Product Name: Membrane Switch Overlay With Metal Dome And Shielding Circuit Used On: Home Appliances And Device, Various Industry Control Keypad Panel
Color: Pantone/ RAL Color, Red, Blue, Yellow, Green Key Material: PET Matte V200
Rear Adhesive: 3M468 Feature: Metal Domes, Blue And Yellow LEDs
Size: Custom Size Certification: RoHS
Type: Meet Customer's Demand,Tactile Membrane Keypad Thickness: Special Requirement Acceptable,0.1-10mm
High Light:

metal dome membrane graphic overlay

,

Shielding circuit membrane graphic overlay

,

PET Matte front panel overlay

Membrane Switch Overlay with metal dome and Shielding circuit


Feature:
1. Membrane keypad with LED windows
2. Membrane Keypad with shielding
3. Membrane keypad with LCD window
4. Overlay Materials: Autotype Polyester
5. Rear Adhesive: 3M 467MP, 3M 468MP, etc.
6. Standard Tolerances: +/- 0.10 inch.
7. Matching color: Pantone and RAL color matching system.
8. Tail, pin and circuit layout: Subject to customer's detailed requests.
9. Unit price: Negotiable
10. Materials: Textured PC, gloss PC with matte finish, autotype PET and PVC
11. LED windows: Clear or translucent with all colors
12. Embossed keys: Poly dome and rim
13. Metal dome: Brand of nicomatic and innovan, nickel and gold plated
14. Tail: With mylar and UV
15. Connector: Nicomatic, fci, molex and zif


Our Advantage:

We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available

Applications:

* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
Various automtic machine control keypad






ItemsSilver Printed CircuitCopper Etched FPC Circuit
MaterialPET (Polyester)Copper
ConductorPrinted silverCopper
Contact FingersSilver and CarbonGold plated
Contact Buttons PadsSilverGold plated
Life & Reliabilitynormalgood
Stabilitynormalgood
ResistancelowVery low
Costlowhigh
Lead Time2-3 days7-10 days
Pitch0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm0.5mm, 1.0mm, 1.27mm, 2.54mm







1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180





2.Mechanical Properties



Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm





3.Environmental and Storage Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours







FAQ:


Q1: Are you a factory or trade company?
A :  Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay   for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
      2. If you have your own forwarder, we can cooperate with them.
Q6 :  How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch,  10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

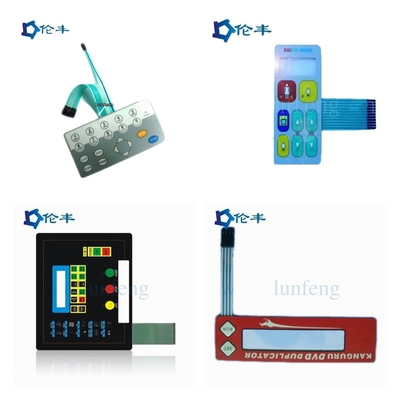

Metal Dome Membrane Graphic Overlay Shielding Circuit PET Matte Front Panel Overlay 0

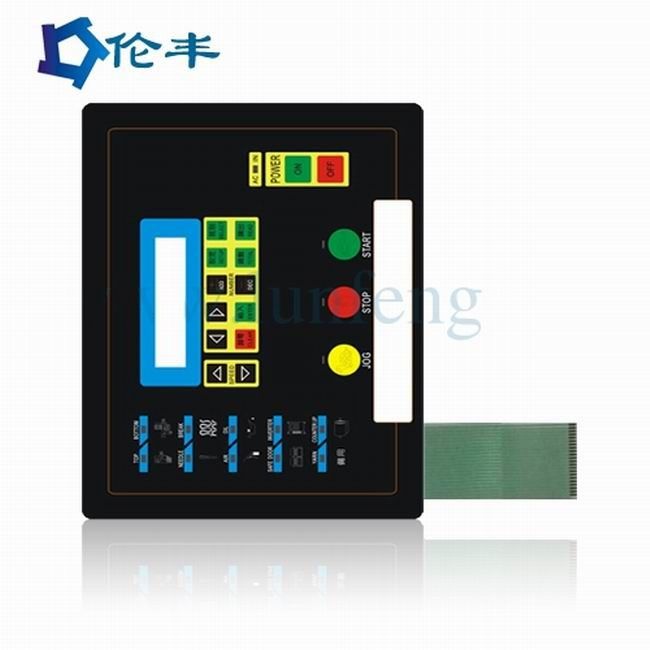

Metal Dome Membrane Graphic Overlay Shielding Circuit PET Matte Front Panel Overlay 1
