|Place of Origin:||Shenzhen, China|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||First put into a polybag, then paked into a carton. According to clients' special requirements.|
|Delivery Time:||7-25 working days, To be negotiated|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||500000 Piece/Pieces per Month|
|Product Name:||Membrane Switch Overlay With 3M467 Tactile Dome Button||Used On:||Various Industry Control Keypad Panel|
|Color:||Pantone/ RAL Color, Red, White||Key Material:||Polyethylene Terephthalate PET|
|Rear Adhesive:||3M467||Feature:||Metal Domes, LCD Window|
|Name:||Membrane Keypad Switch||Type:||Meet Customer's Demand,Adhesive Sticker|
|Membrane Switch:||Control System||Printing:||Embossing And Stamping|
Polyethylene Membrane Switch Overlay,
RAL color Membrane Switch Overlay,
3M467 tactile dome button

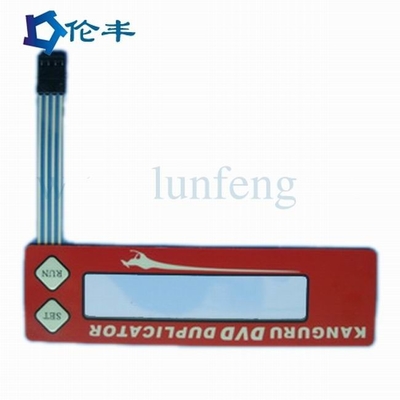

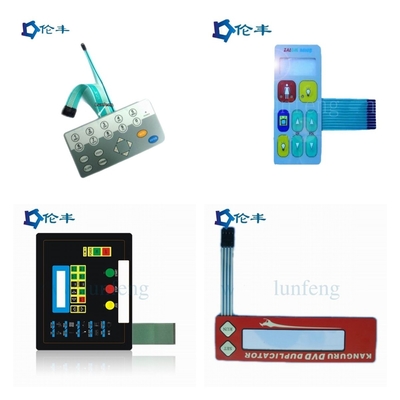

Membrane Switch Overlay With 3M467 tactile dome button
Membrane keypads are the most widely used form of switch technology today. We offer reliability, long life and design flexibility. Conductive rubber switches and keypads were originally developed the electronics industry to meet the increasing demand for inexpensive momentary switches. Conductive rubber keypads became desirable because they look and feel like traditional push-button style switches, but do not have their inherent disadvantages.
We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Short Lead time for samples and Mass production
Whole solution design available
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
|Pitch||0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm||0.5mm, 1.0mm, 1.27mm, 2.54mm|
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm
3.Environmental and Storage Conditions
-40°C ~ +80°C
-40°C ~ +80°C
40°C, 90%~95%, 240 hours
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
