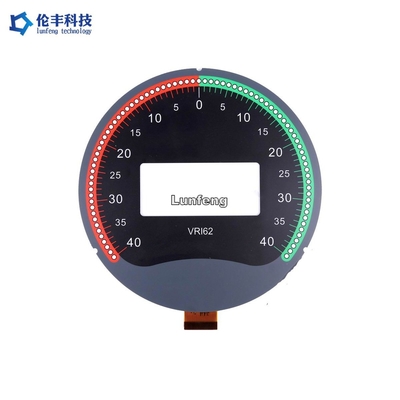

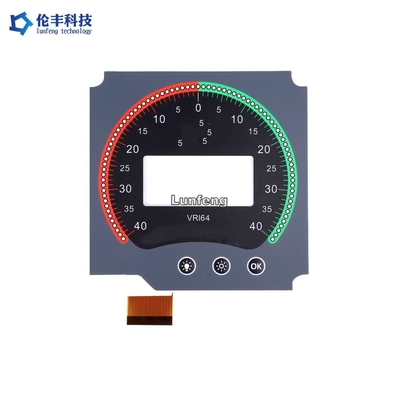

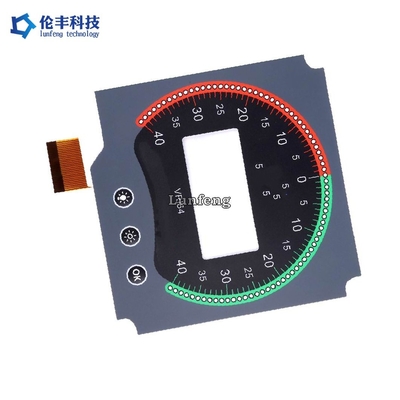

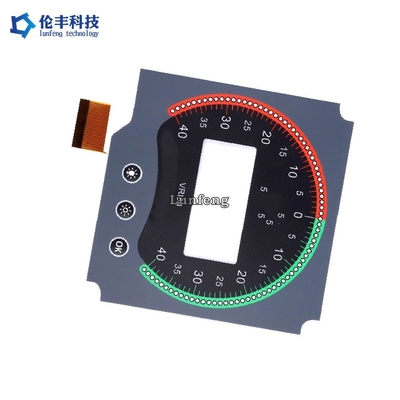

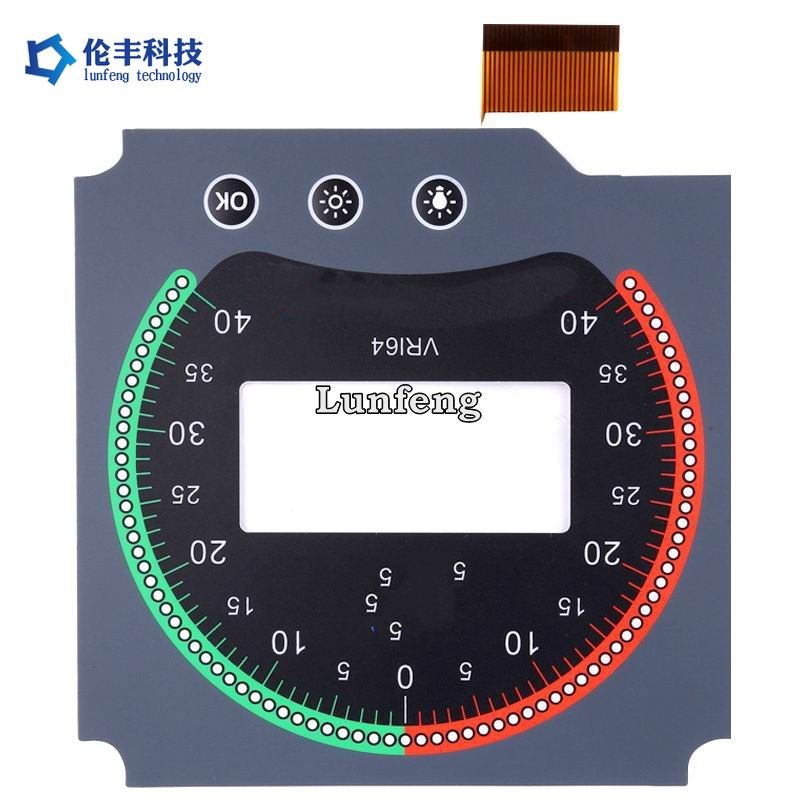

Dashboard Polyester PET Membrane Switch Keyboard With FPC Circuit

Dashboard Polyester PET Membrane Switch Keyboard With FPC Circuit

Brand Name:	Lunfeng/Customer's brand
Model Number:	LFZDX033
MOQ:	1 piece
Price:	depending on the design
Payment Terms:	TT/telegram transfer
Supply Ability:	500000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong, China

Certification:

ISO9001:2015, SMETA 4P

Product Name:

Dashboard PET Membrane Switch Keyboard With FPC Circuit

ColorS:

Pantone/ RAL Color, Multi Colors

Material:

PET, Polyester(PET),

Rear Adhesive:

3M468

Feature:

Metal Domes, Matte Surface, FPC Circuit

Connector:

1.0mm Connector

Key:

Embossing Keys, Embossed Button

Type:

With Leds, LCD Wiindow

Packaging Details:

PE bag/foam/carton, as customer's request

Supply Ability:

500000 Piece/Pieces per Month

Highlight:

3M468 Adhesive PET Membrane Switch

FPC Circuit PET Membrane Switch

Dashboard PET FPC Membrane Switch

Product Description

Dashboard PET Membrane Switch Keyboard With FPC Circuit

embrane flexible circuits use flexible materials + conductive silver paste/insulating layer printing process to form integrated circuits with conductive functions. Adding insulating layers/wear-resistant insulating carbon pastes and other materials to the printed circuits to increase the anti-oxidation and resistance of flexible circuits.
Durability, also adding wire key/metal dome/hot embossing process to create operability without adding external keys;
Structure: flexible polyester film + conductive silver paste + upper and lower lines (wire key interlayer / metal shrapnel / hot embossing);
Material: PET polyester film + silver-winning material with excellent electrical conductivity + carbon paste material with good wear protection, all of which meet the requirements of environmental protection Rohs;

Our Advantage:

We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available

Applications:

* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system

Items	Silver Printed Circuit	Copper Etched FPC Circuit
Material	PET (Polyester)	Copper
Conductor	Printed silver	Copper
Contact Fingers	Silver and Carbon	Gold plated
Contact Buttons Pads	Silver	Gold plated
Life & Reliability	normal	good
Stability	normal	good
Resistance	low	Very low
Cost	low	high
Lead Time	2-3 days	7-10 days
Pitch	0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm	0.5mm, 1.0mm, 1.27mm, 2.54mm

1. Electrical Properties		Membrane Switch
Electrical Level:		35V(DC), 100mA,1W
Contact Resistance:		10Ω~500 Ω
Insulation Resistance:		100MΩ/100V
Dielectrics Voltage-resistance:		250VRms(50~60Hz 1min)
Chattering Time:		≤ 5ms
Life Time:		Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
Tail Folding:		R>1,180

2. Mechanical Properties
Operating Force:		Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)
Switch Stroke:		Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm

3. Environmental and Storage Conditions
Operation Temperature:		-40°C ~ +80°C
Storage Temperature:		-40°C ~ +80°C
Humidity:		40°C, 90%~95%, 240 hours

FAQ:

Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
