|Place of Origin:||Shenzhen, China|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||First put into a polybag, then paked into a carton. According to clients' special requirements.|
|Delivery Time:||7-25 working days, To be negotiated|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||500000 Piece/Pieces per Month|
|Material:||PET, Polyester(PET), 0.15mm MATTE PET||Rear Adhesive:||3M9448 3M Adhesive|
|ColorS:||Pantone/ RAL Color, Yellow, Gray||Feature:||Matte Surface, Silver Circuit Cables|
|Connector:||2.54 Mm Pitch, Black Plastic Housing||Key:||Tactile Keys , Metal Domes,|
|LED:||Color Leds, NO LGF Film||Window:||NO LCD Window, One Punch Holes|
NO LGF Film Flat Membrane Switch,
Color Leds PET Membrane Switch,
Flat PET Membrane Switch

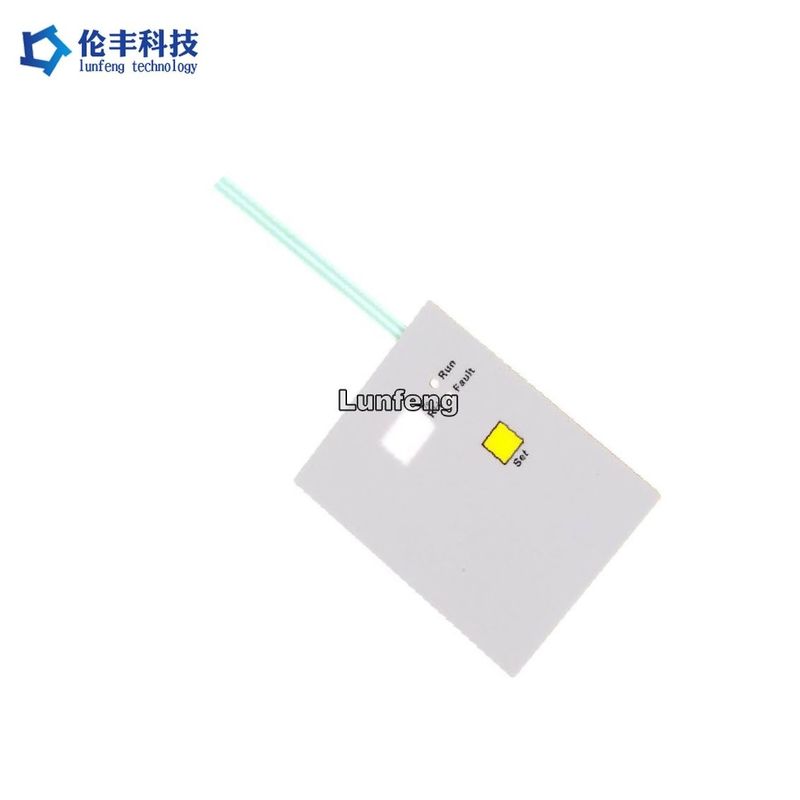

OEM 3M Adhesive Membrane Switch Keypad, Flat Membrane Switch
Components of a Membrane Switch
Graphic overlays are a thin film with a printed layer that acts as the product’s top surface. They can be decorative or simple in design. You can emboss graphic overlays, or the graphic can help indicate switch locations.
Keypads are a set of buttons arranged in a block that become the interface of products. Keypads offer a wide variety of options to achieve the desired user experience. Common keypad materials are:
Compression-molded elastomer materials
Hard keys mounted in a bezel
A combination of hard key and elastomers
Pressure-sensitive adhesives are thin layers of tape that adhere domes to the circuit. Adhesives can help protect the switch from debris, provide a moisture barrier, or other environmental factors.
Metal domes are normally-open contacts that, when pressed, complete the circuit. Metal domes, also known as tactile domes, create tactile feedback for the user and come in a wide variety of sizes, styles, and forces. Domes have life ratings of up to 10 million presses. Snaptron can produce custom domes with minimal lead times.
A retaining pocket can hold a dome in position without the need for an adhesive layer. A spacer layer provides space for the dome under the graphic overlay. It can also incorporate venting channels that allow air to move under the graphic overlay when pressing various switches. Spacers eliminate the need to vent each switch pocket through the circuit board.[tactile domes with spacer]
The circuit can be single-sided, double-sided, or even flexible in some applications, also known as a flex circuit. Domes are positioned on the circuit pads, and when depressed, create contact closure.Metals domes are placed on top of the contact pads
Metal domes are just one of the many components of a switch that together make a complex human-machine interface.
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm
0.5mm, 1.0mm,1.27mm, 2.54mm
|1. Electrical Properties||Membrane Switch|
|Electrical Level:||35V(DC), 100mA,1W|
|Contact Resistance:||10Ω~500 Ω|
|Dielectrics Voltage-resistance:||250VRms(50~60Hz 1min)|
|Chattering Time:||≤ 5ms|
|Life Time:||Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000|
|2. Mechanical Properties|
|Operating Force:||Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)|
|Switch Stroke:||Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm|
|3. Environmental and Storage Conditions|
|Operation Temperature:||-40°C ~ +80°C|
|Storage Temperature:||-40°C ~ +80°C|
|Humidity:||40°C, 90%~95%, 240 hours|
