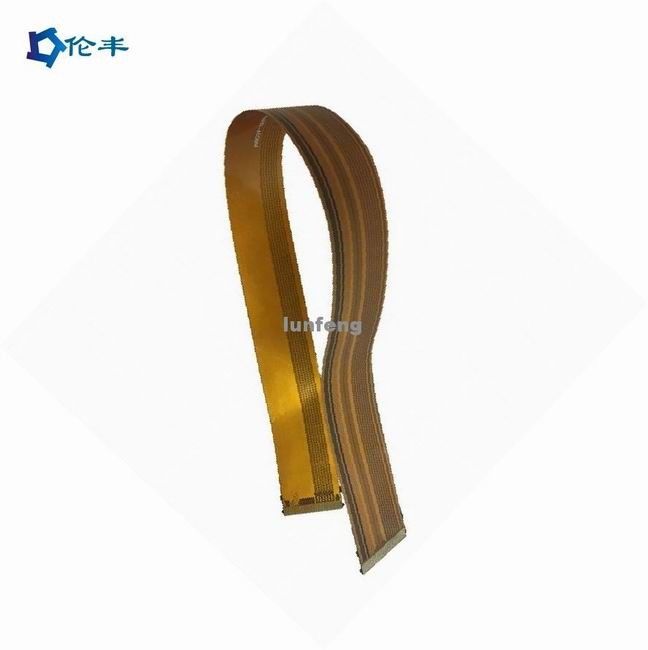

| Name: | Flexible FPC Flexible Circuit Board PI Flexible PCB With Rear Adhesive | Application: | Consumer Electronics, Electronic Product |
|---|---|---|---|
| Material:: | Polyimild, PI | Copper Thickness:: | 0.4-2mil(10-50um), |
| Board Thickness:: | 0.2-6mm | Size: | Customized Size |
| Surface Finishing:: | HASL/ OSP/ Ag/ ENIG/ ENEPIG/ Immersion Silver/Tin | Solder Mask: | Yellow PI Film |
| Item: | OEM | Outline Profile: | Punching / Laser Cut / Drilled |
| Copper Thickness: | 1/2OZ 1OZ 2OZ 3OZ,1oz / 1/2 O Z/ 1/3 Oz | ||
| High Light: | PI rigid flexible printed circuit board,1OZ rigid flexible printed circuit board,Yellow PI Film rigid flex board |
||
Benefits of Flexible Printed Circuits
Long-term performance
The superior qualities of flexible circuit boards allow them to have durability and long-term performance. The characteristics of low ductility and mass contained in these boards allow them to overcome the influence of vibrations, therefore giving them the capacity to have improved performance. The ability of electronics to remain durable for a long time is a massive advantage for users. As you well know, electronics are common in households today, thus their ability to stay in good shape for a long time is an added value.
Cost reduction
The capacity of any device or material to reduce PCB cost compared to another gives it an added advantage. Given that flexible printed circuits have the ability to fit into a small space, they significantly reduce the cost of flexible printed circuit assembly. In the same vein, they reduce reworking time, testing time, and rejects, which translates to cost saving.
Viable for high temperature usage
The polyimide material in these circuit boards has the capacity to withstand high temperatures and also be resistant to materials like acids and oils. Flexible circuit boards can withstand temperatures as high as 400 degrees centigrade, which makes them a reliable option for high temperature applications.
|
FPC cable ( Flexible Printed Circuit ) Specifications
|
|
| Layer | 1-6layer |
| FPC size(max/min) | Min: 10x45mm Max:250x1200mm |
| Thickness | 0.050mm—0.2mm |
| Through Hole diameter(Max) | 6.5mm |
| Through hole size(min) | 0.2mm |
| Through hole tolerance | ±0.025mm |
| Hole copper thickness | Min8μm Max 38μm |
| Min line width/space | 0.04/0.04 mm |
| Etching Tolerance | ±20% |
| The accuracy of the pattern on the hole | ±2mil |
| Punching size(max) | φ3.175mm |
| Punching size(min) | φ2.0mm |
| Punching aperture Thickness(Max) | 0.2mm |
| Thermosetting inks tolerance | ±0.2mm |
| Green oil(Min) | 0.1mm |
| Solder pad(min) | 8mil*8mil |
| Solder pad distance(Min) | 8mil |
| tolerance(Min) | ±0.1mm |
| Available Laminates Material | Pl. PET. FR4-Pl |
| Copper foil thickness |
12um, 18um, 35um, 70um
|
